Product code: W11 WR

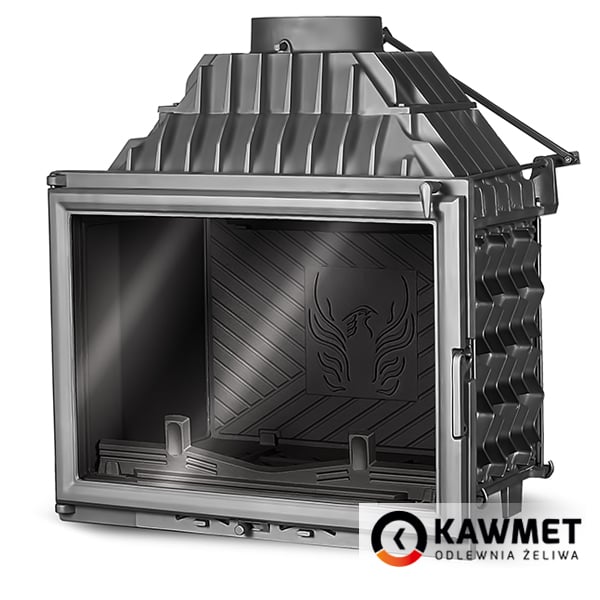

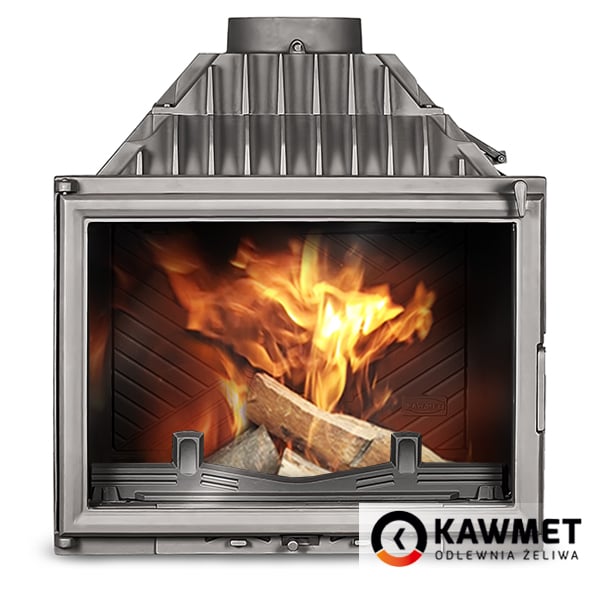

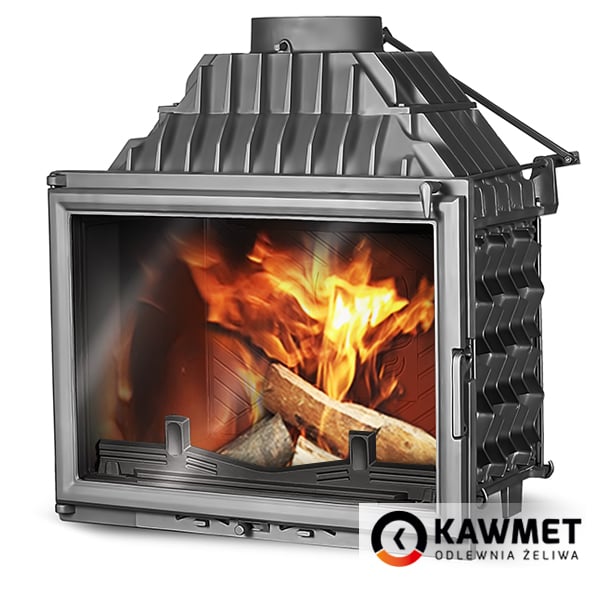

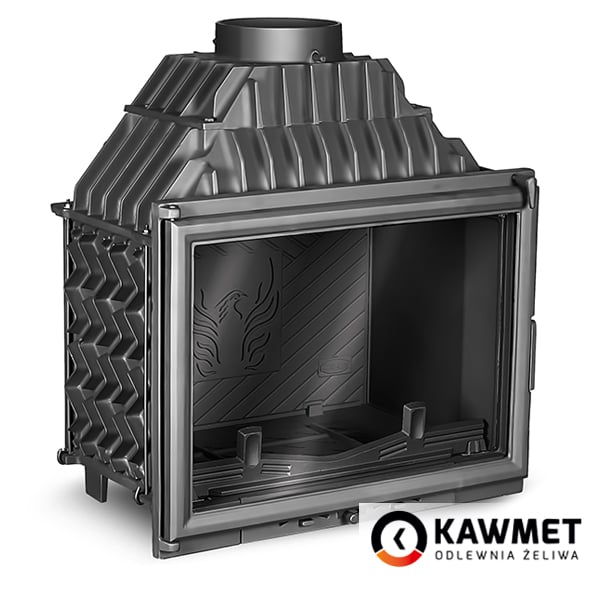

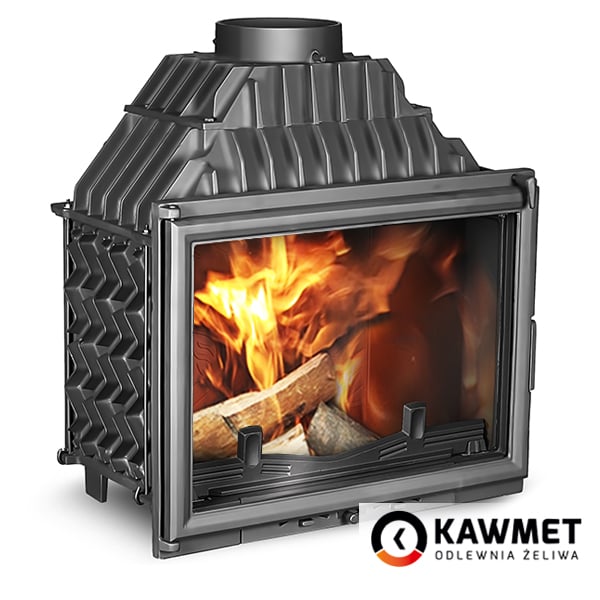

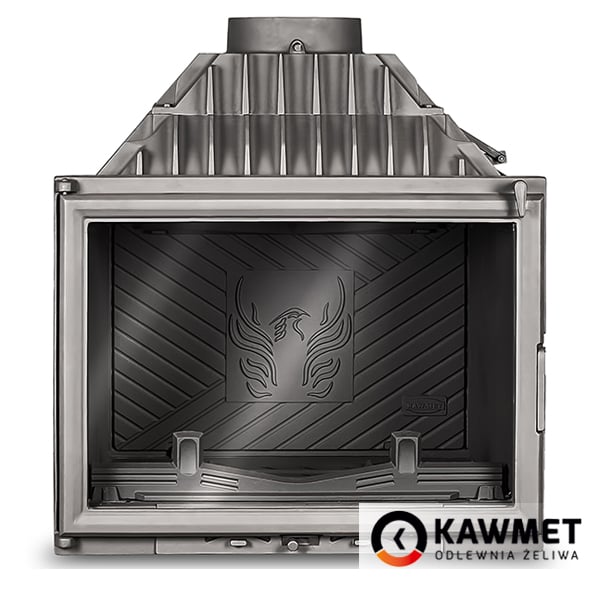

Fireplace insert KAWMET W11 (18,1 kW)
Product code: W11 WR
Fireplace insert KAWMET W11 (18,1 kW)
In stock
Characteristics
Fireplace insert KAWMET W11 (18,1 kW)
General information
- Nominal rated power (kW) 18,1
- Efficiency (%) 70,5
- Material cast iron
- Fuel type Recommended seasoned hardwood (moisture ≤20%)
- Heating capacity (m²/m³) 181 / 453
- Average flue gas temperature (°C) 381,4
Physical parameters
- Weight (kg) 150
- Width (mm) 680
- Height (mm) 530 (760)
- Depth (mm) 435
- Flue pipe diameter (mm) 200
- Main glass dimension (mm) - L / H / W 600 / 415 / 4
- Max length of wood (mm) 520
- Recommended ventilation area of the air outlet grid / intake grid (cm²) 905 / 1358
Accessories
- Clean glass system yes
- Ashpan yes
- Removable grate yes
- Removable back plate yes
- Damper yes
- Double combustion no
Energetic efficiency
- Energy efficiency class A
- Energy efficiency index (EEI) (%) 92
Certificates
- Compliance with ECOPROJECT standards no
Additional information
- External air feed yes
- Manufacturer KAWMET
Physical parameters
- Weight (kg) 150
- Width (mm) 680
- Height (mm) 530 (760)
- Depth (mm) 435
- Flue pipe diameter (mm) 200
- Main glass dimension (mm) - L / H / W 600 / 415 / 4
- Max length of wood (mm) 520
- Recommended ventilation area of the air outlet grid / intake grid (cm²) 905 / 1358
Energetic efficiency
- Energy efficiency class A
- Energy efficiency index (EEI) (%) 92
Additional information
- External air feed yes
- Manufacturer KAWMET
General information
- Nominal rated power (kW) 18,1
- Efficiency (%) 70,5
- Material cast iron
- Fuel type Recommended seasoned hardwood (moisture ≤20%)
- Heating capacity (m²/m³) 181 / 453
- Average flue gas temperature (°C) 381,4
Accessories
- Clean glass system yes
- Ashpan yes
- Removable grate yes
- Removable back plate yes
- Damper yes
- Double combustion no
Certificates
- Compliance with ECOPROJECT standards no

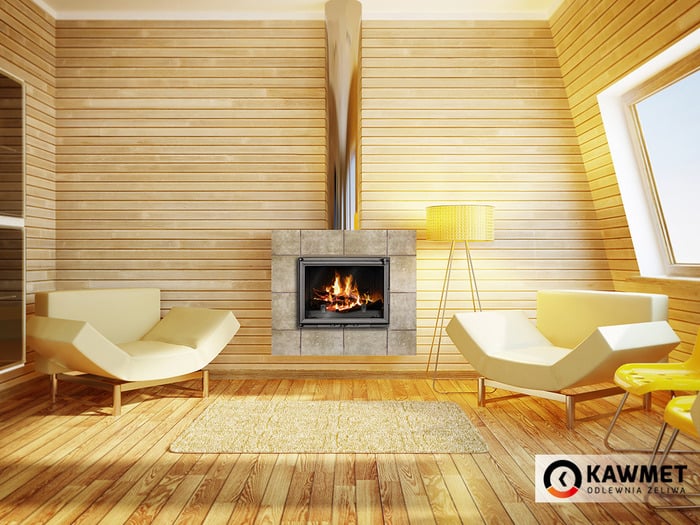

Fireplace in the interior

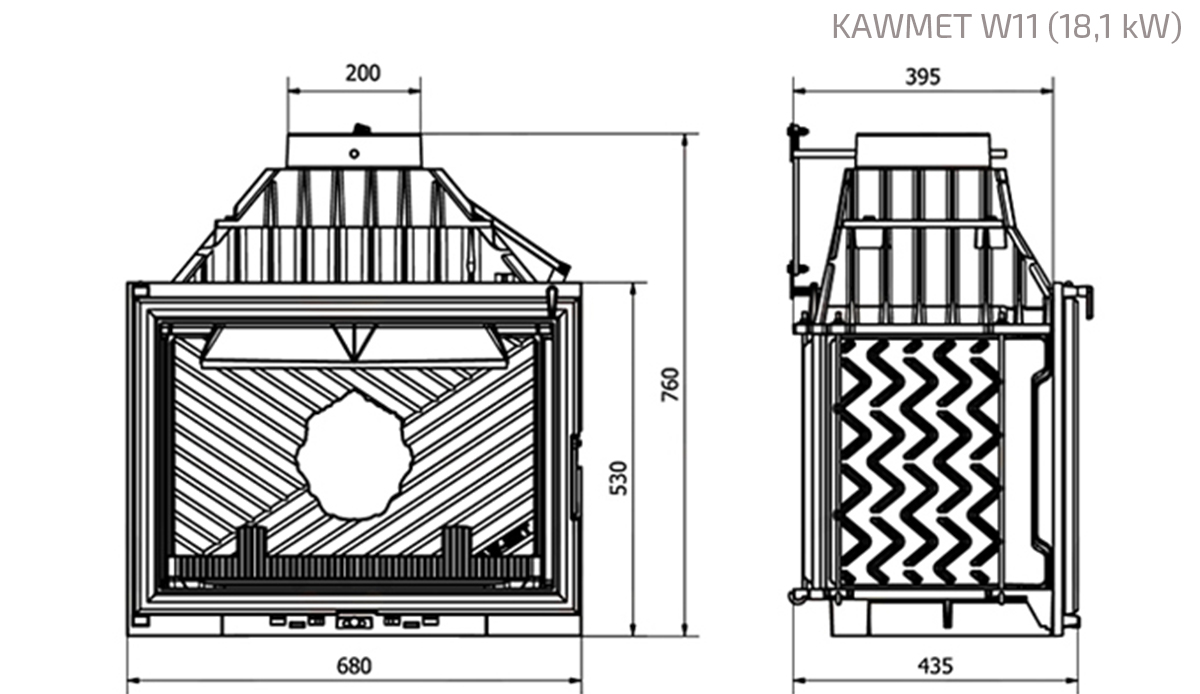

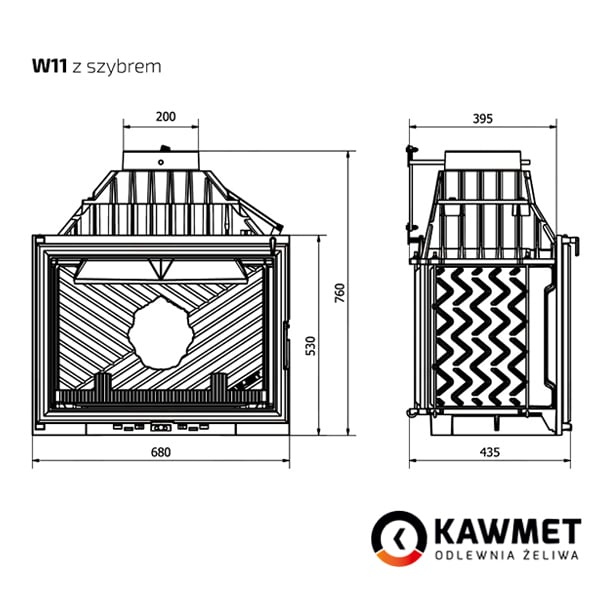

Technical drawing
Fireplace insert KAWMET W11 (18,1 kW)
