Product code: W12 WR

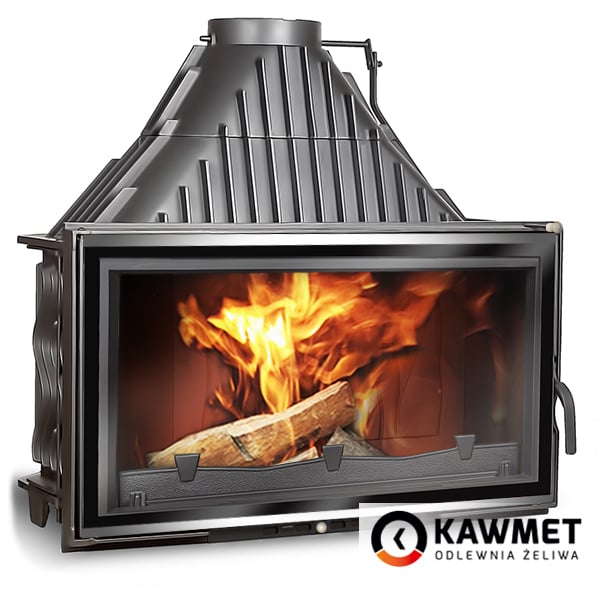

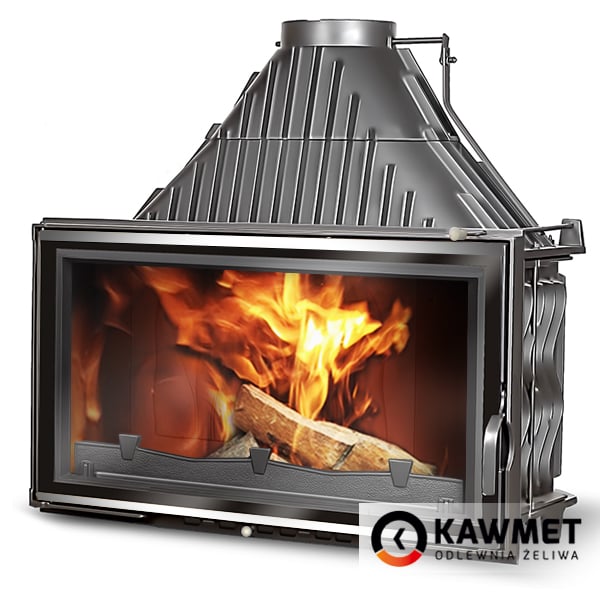

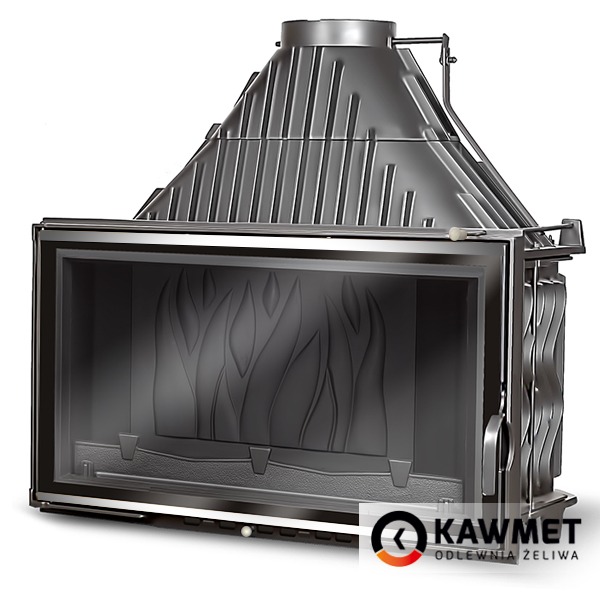

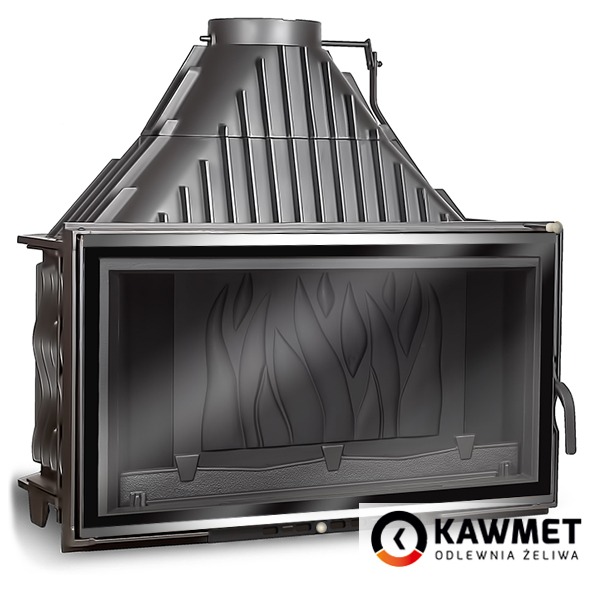

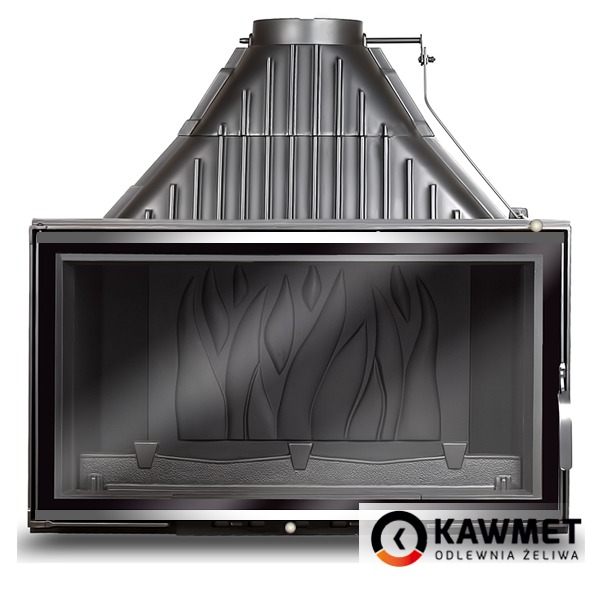

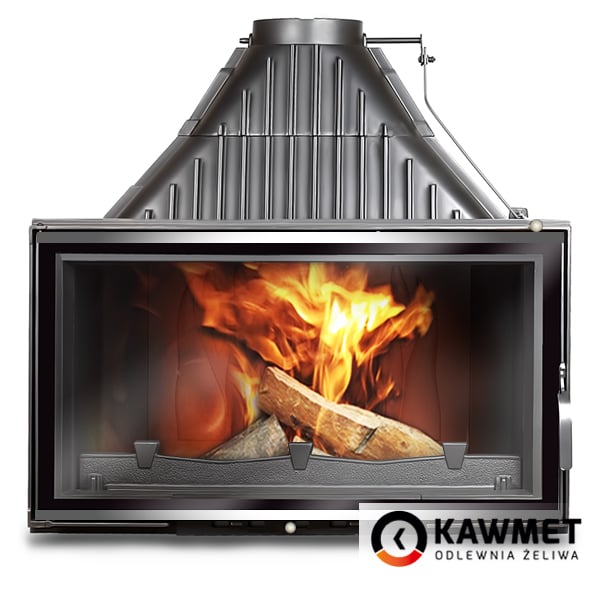

Fireplace insert KAWMET W12 (19,4 kW)
Product code: W12 WR
Fireplace insert KAWMET W12 (19,4 kW)
In stock
Characteristics
Fireplace insert KAWMET W12 (19,4 kW)
General information
- Nominal rated power (kW) 19,4
- Efficiency (%) 71,9
- Material cast iron
- Fuel type Recommended seasoned hardwood (moisture ≤20%)
- Heating capacity (m²/m³) 194 / 485
- Average flue gas temperature (°C) 399,1

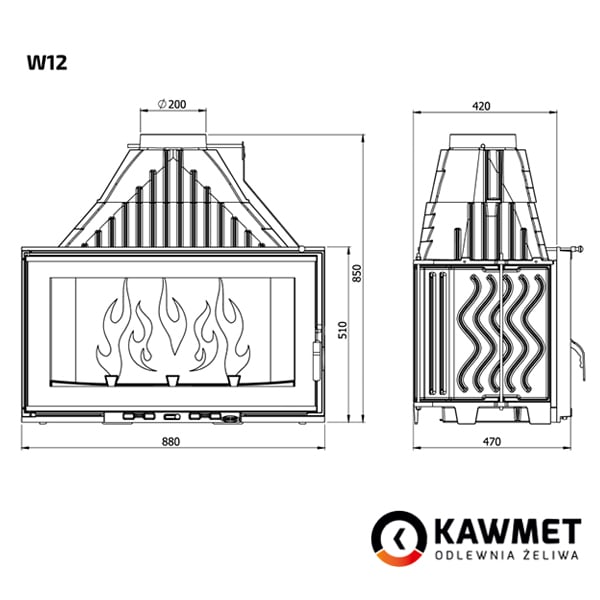

Physical parameters
- Weight (kg) 185
- Width (mm) 880
- Height (mm) 510 (850)
- Depth (mm) 470
- Flue pipe diameter (mm) 200
- Main glass dimension (mm) - L / H / W 842 / 442 / 4
- Max length of wood (mm) 700
- Recommended ventilation area of the air outlet grid / intake grid (cm²) 970 / 1455
Accessories
- Clean glass system yes
- Ashpan yes
- Removable grate yes
- Removable back plate yes
- Damper yes
- Double combustion no
- Bar colour silver, black
Energetic efficiency
- Energy efficiency class A
- Energy efficiency index (EEI) (%) 94
Certificates
- Compliance with ECOPROJECT standards no
Additional information
- External air feed yes
- Manufacturer KAWMET
Physical parameters
- Weight (kg) 185
- Width (mm) 880
- Height (mm) 510 (850)
- Depth (mm) 470
- Flue pipe diameter (mm) 200
- Main glass dimension (mm) - L / H / W 842 / 442 / 4
- Max length of wood (mm) 700
- Recommended ventilation area of the air outlet grid / intake grid (cm²) 970 / 1455
Energetic efficiency
- Energy efficiency class A
- Energy efficiency index (EEI) (%) 94
Additional information
- External air feed yes
- Manufacturer KAWMET
General information
- Nominal rated power (kW) 19,4
- Efficiency (%) 71,9
- Material cast iron
- Fuel type Recommended seasoned hardwood (moisture ≤20%)
- Heating capacity (m²/m³) 194 / 485
- Average flue gas temperature (°C) 399,1
Accessories
- Clean glass system yes
- Ashpan yes
- Removable grate yes
- Removable back plate yes
- Damper yes
- Double combustion no
- Bar colour silver, black
Certificates
- Compliance with ECOPROJECT standards no

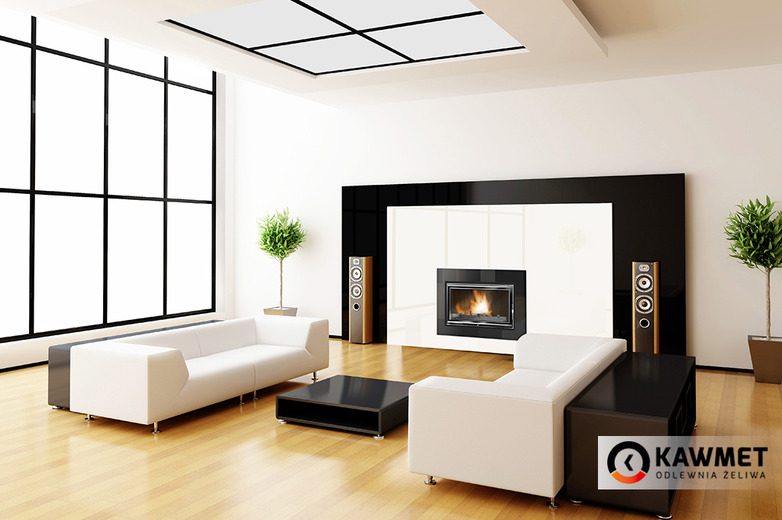

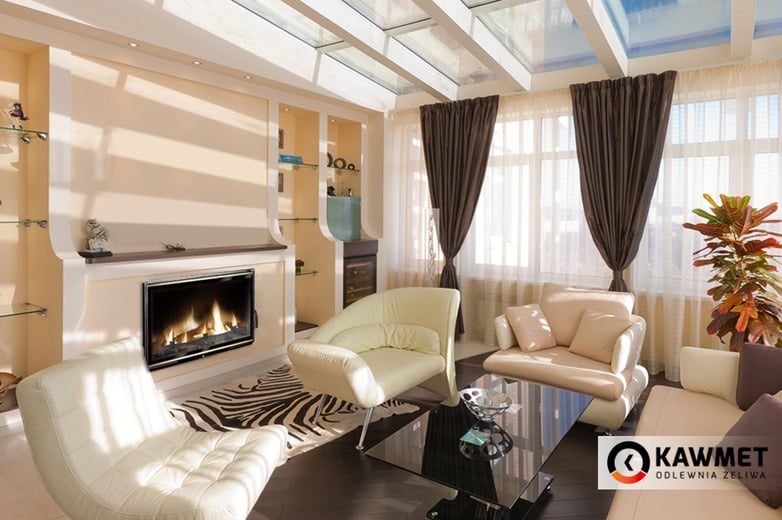

Fireplace in the interior

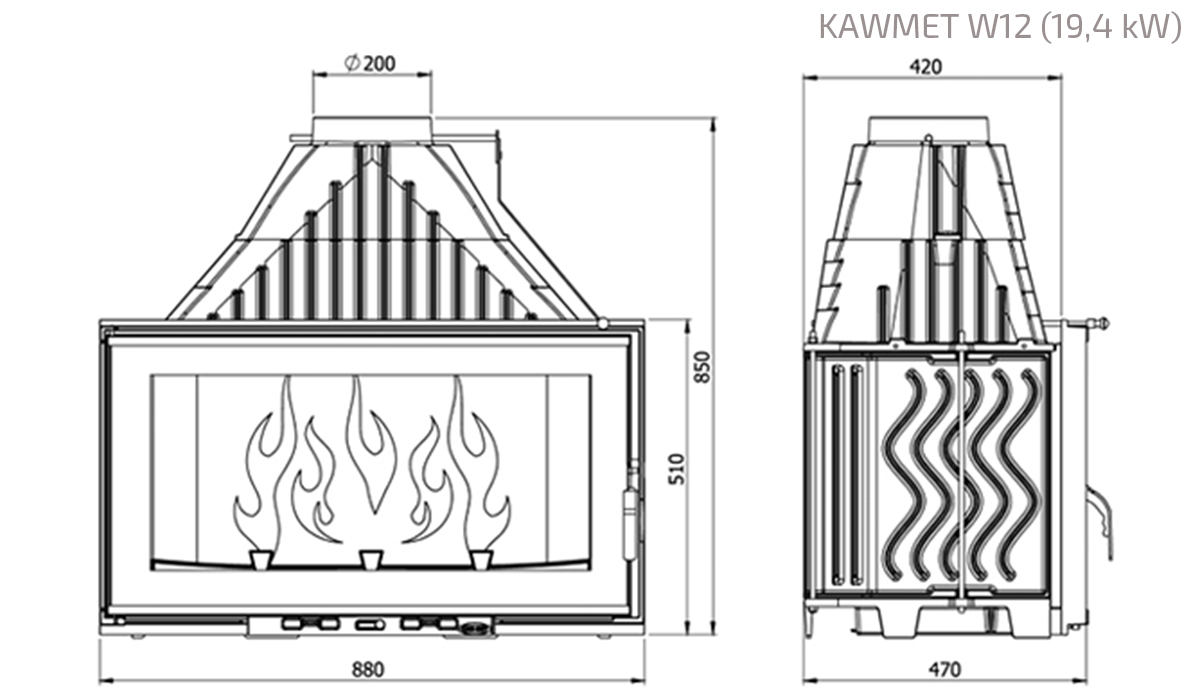

Technical drawing
Fireplace insert KAWMET W12 (19,4 kW)
Documentation
