KAWMET W16 (9.4 kW) ECO Fireplace Insert

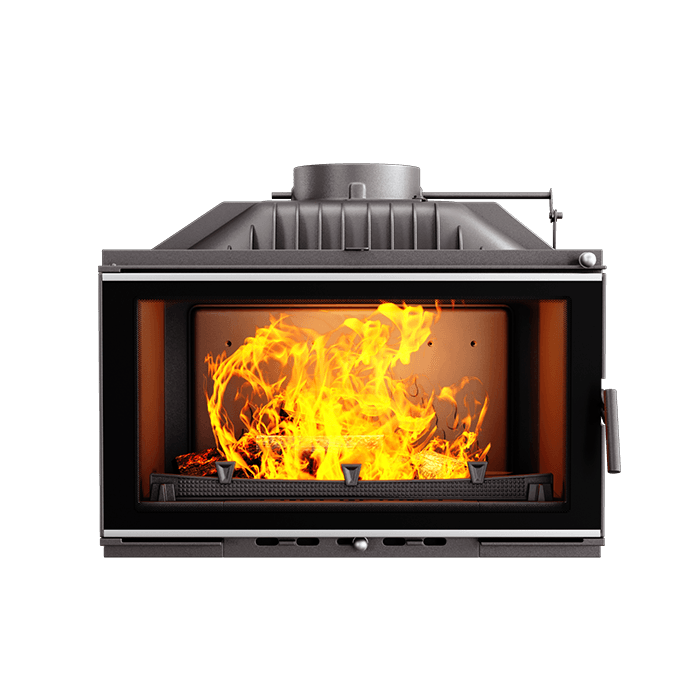

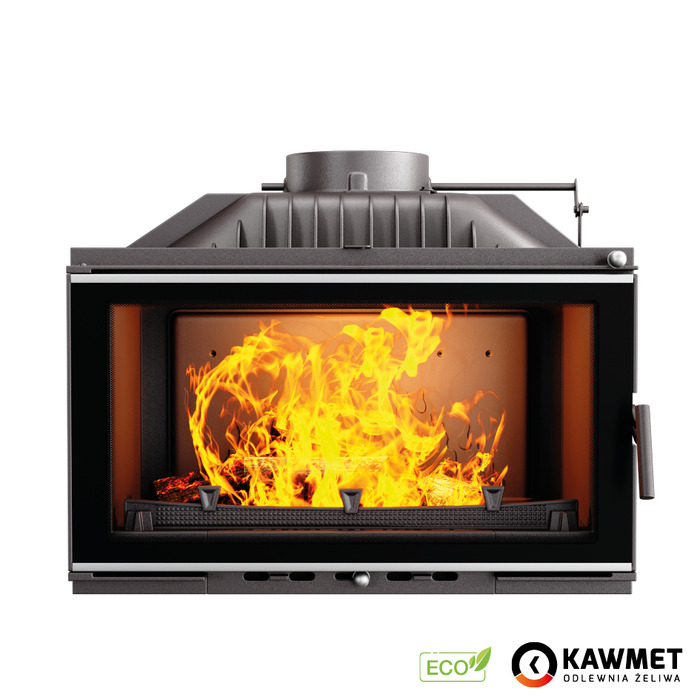

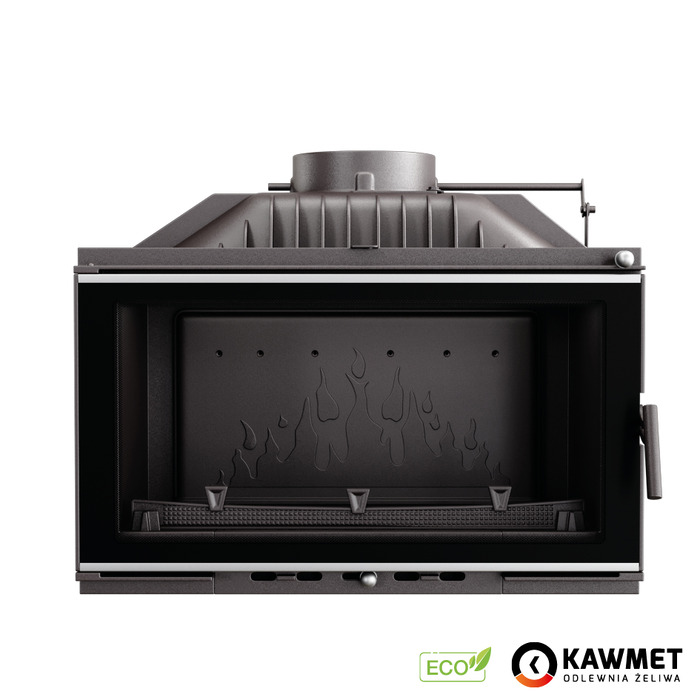

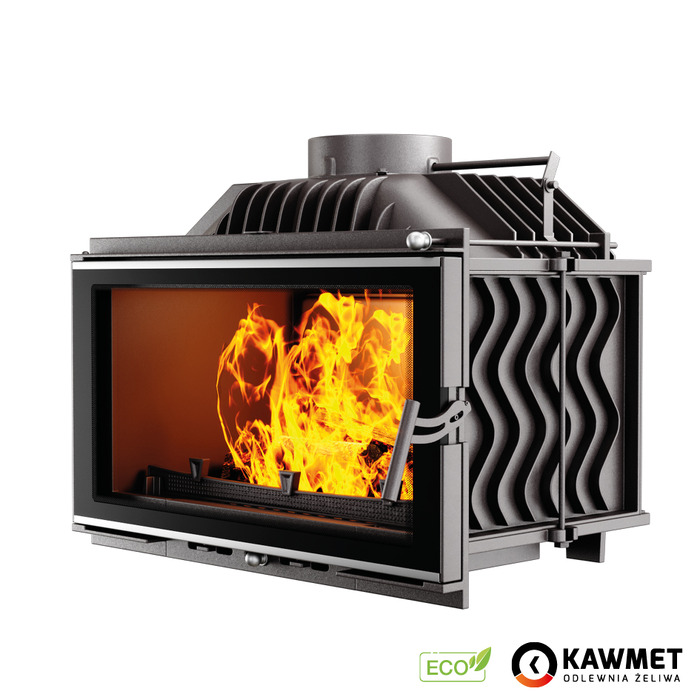

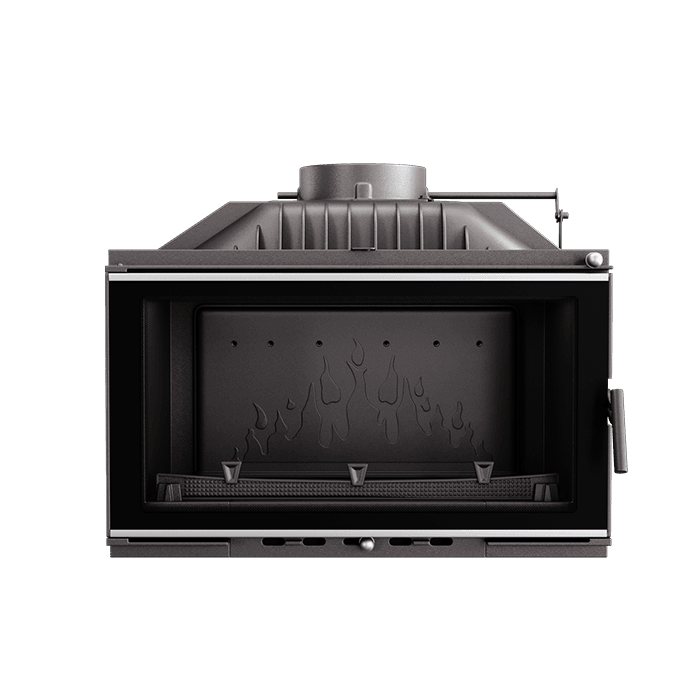

KAWMET W16 (9.4 kW) ECO is a wood-burning fireplace insert from the Polish foundry KAWMET with a nominal output of 9.4 kW, sized for rooms of up to 94 m² (up to 235 m³). A flat front pane shows the firebed head-on. Thermal efficiency is 63.7 %, energy class B.

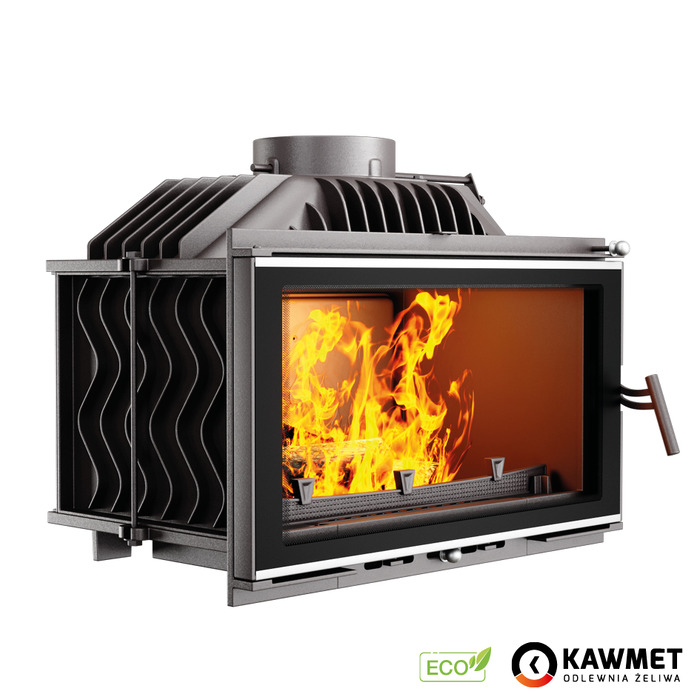

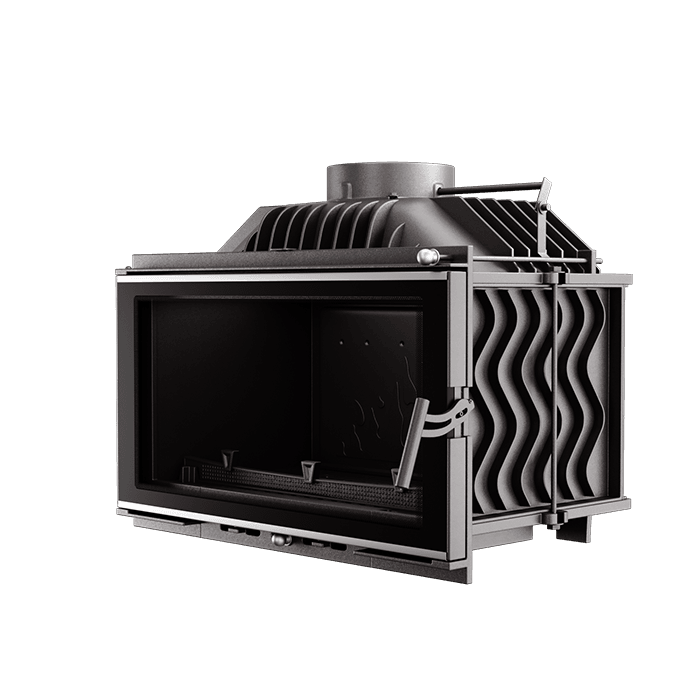

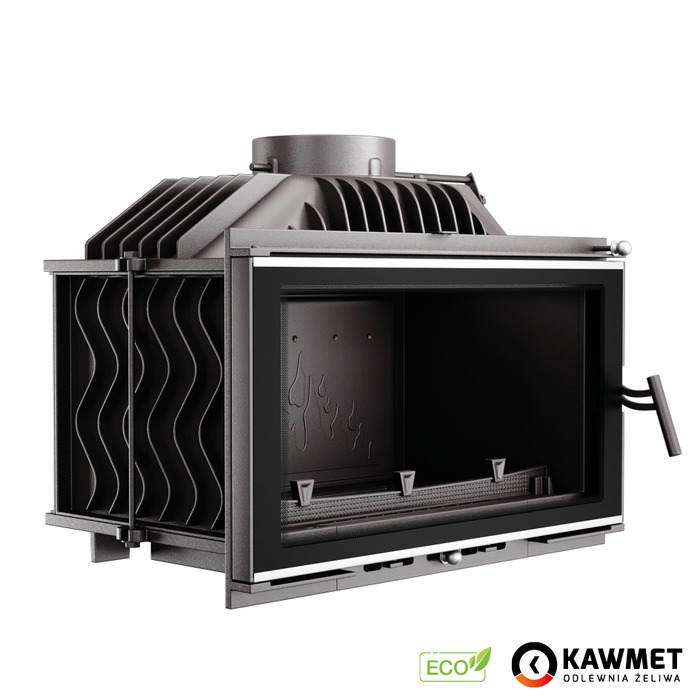

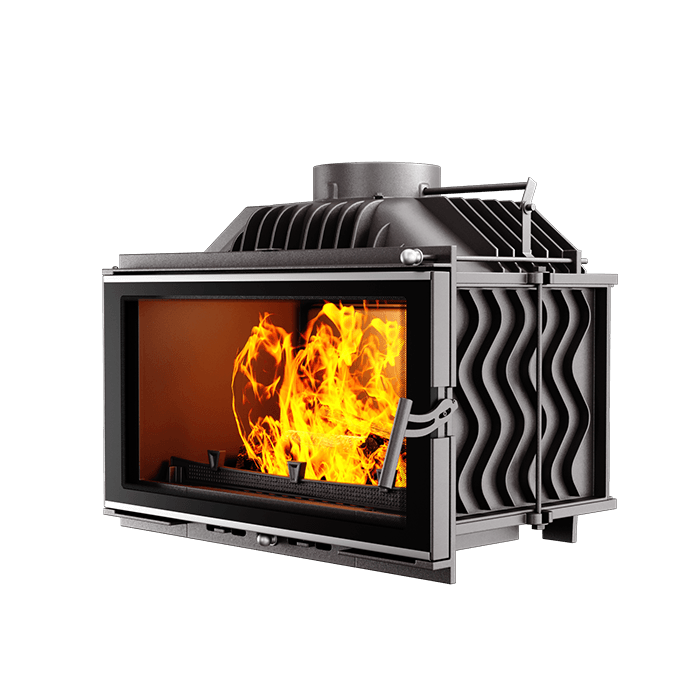

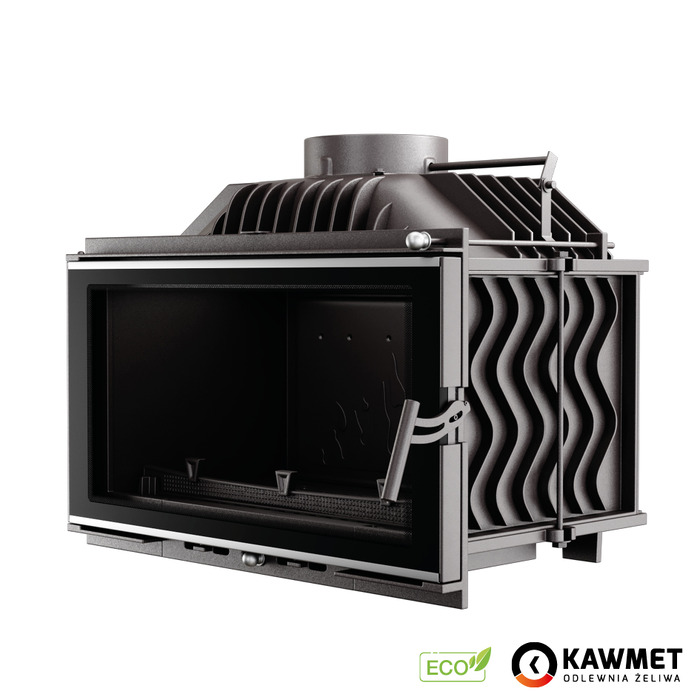

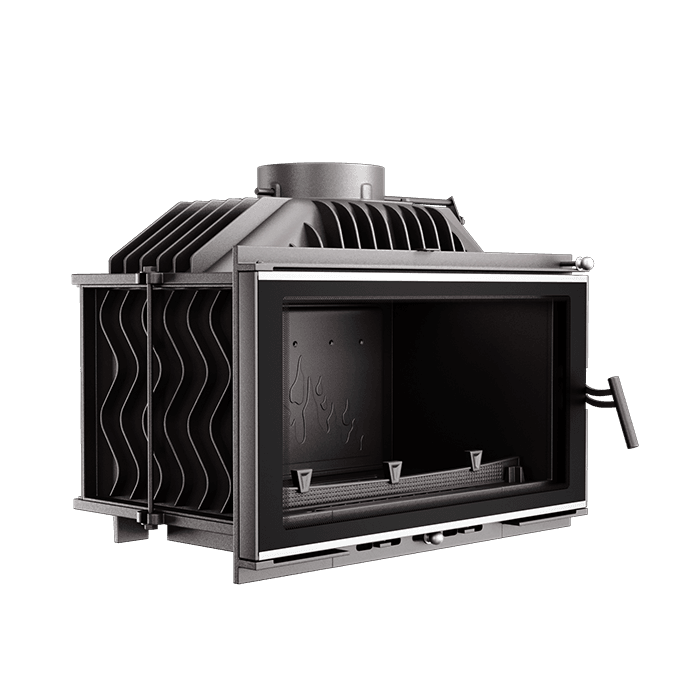

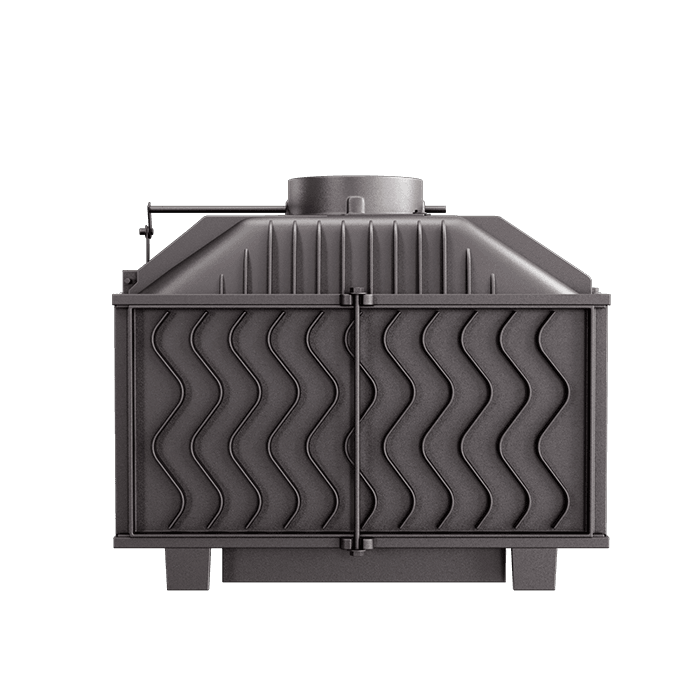

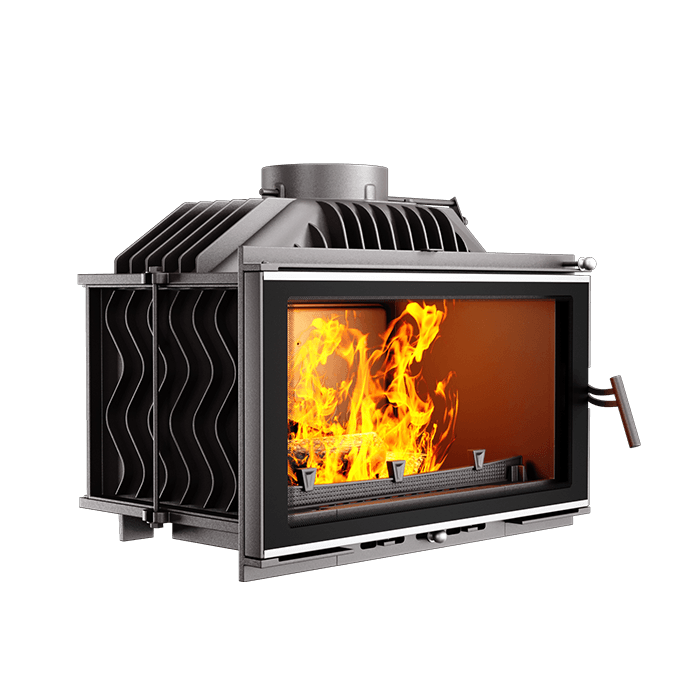

The body weighing 78 kg is cast entirely from iron. Unlike steel constructions, cast iron does not warp under high temperature and stores heat — releasing it long after the fire has burnt down. Closely spaced fins enlarge the heat exchange surface, and a vermiculite baffle extends the path of the flue gases, so more energy stays in the room instead of escaping up the chimney.
Key features — W16
- Nominal output 9.4 kW — heats up to 94 m² (235 m³)
- Thermal efficiency 63.7 %, energy class B
- Secondary combustion — secondary air burns off gases that would otherwise escape up the flue
- Clean glass system — air guided along the pane limits soot build-up
- Damper for regulating the chimney draught

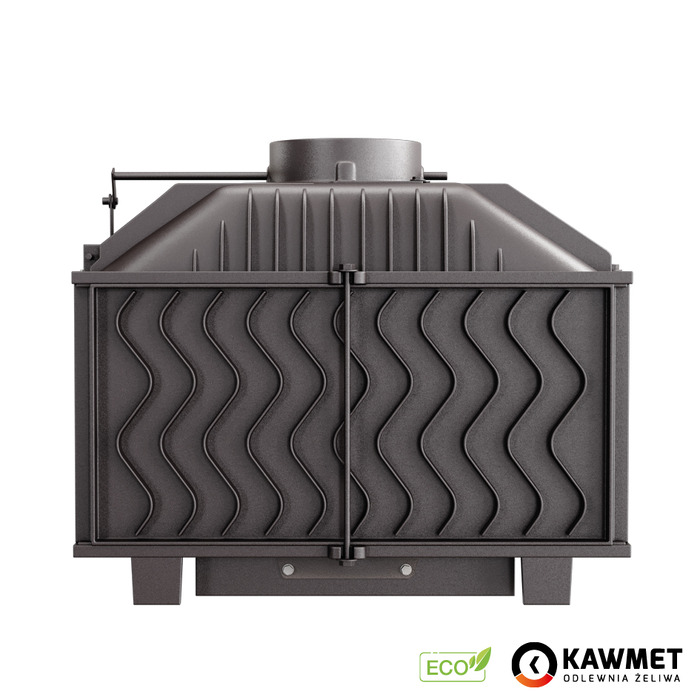

- Back plate protecting the rear of the body from burning through
- Decorative log guard keeping the wood in place
- Air supply adjusted through the ash pan
- Meets Ecodesign requirements
- Provision for an external combustion air supply
- Flue outlet top, flue pipe Ø180 mm; door opens to the left
- Maximum log length 500 mm

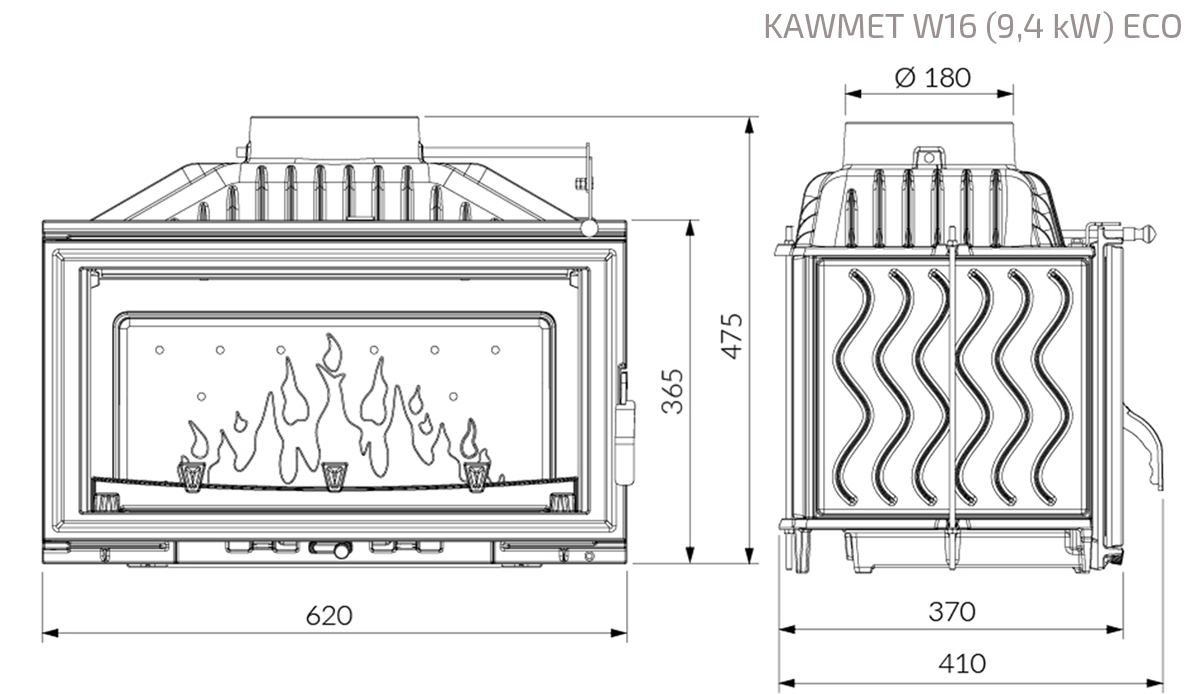

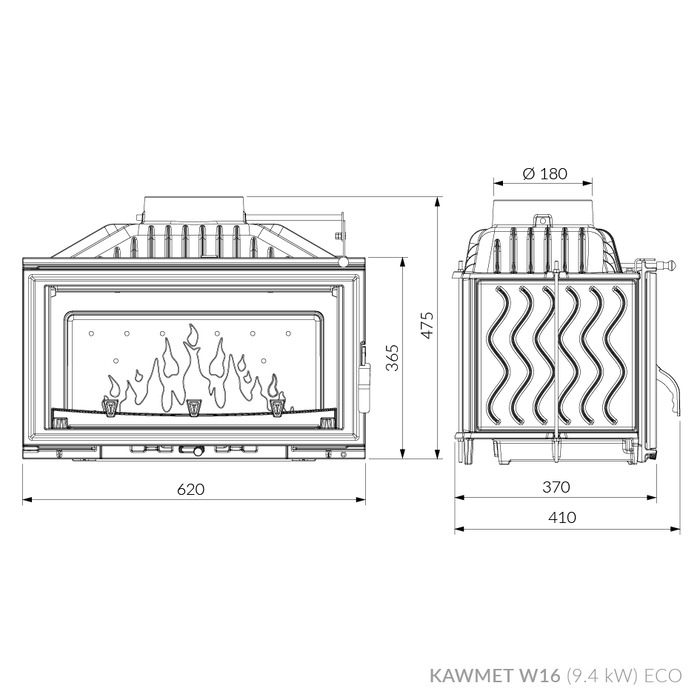

- Dimensions (W × H × D): 620 × 365 × 370 mm, weight 78 kg
- Material: cast iron. Made in Poland — 5-year warranty
The KAWMET Standard ECO range and Ecodesign requirements
The KAWMET Standard ECO inserts were developed to meet the EU Ecodesign requirements for solid fuel heating appliances. In practice this means a seasonal efficiency above 65 % and limits on particulate, carbon monoxide and hydrocarbon emissions. An insert that fails to meet these standards can no longer be legally placed on the market — and many Polish municipalities additionally enforce clean-air resolutions requiring older appliances to be replaced.
The model reaches these figures thanks to its secondary combustion system: secondary air fed above the firebed burns off gases that escaped up the flue in older designs. The effect is twofold — lower emissions and more heat from the same amount of wood.
Is 9.4 kW enough to heat my house?
The model is rated for roughly 94 m² with standard insulation and a ceiling height of 2.5–2.7 m. In a poorly insulated building, one with large glazed areas or a higher ceiling, the real figure will be lower. Oversizing is harmful too, however: for most of the season the appliance then runs on a low flame, which soots up the glass and the flue faster.
Does it need an external air supply?
The model is designed for it, and in an airtight building with mechanical ventilation or heat recovery it is the recommended solution — without its own air supply, ventilation can reverse the flue draught. In an older building with natural ventilation an external air supply is not essential, but it usually makes combustion more stable. The connection parts (inlet, orifice, pipe) are ordered separately — they are not part of the set.
What surround and chimney does the insert require?
The insert connects to a flue of Ø180 mm, with the outlet at the top. The body measures 620 × 365 × 370 mm (W × H × D) and weighs 78 kg — the surround is designed with allowance for expansion and convection ducts, and the floor beneath the fireplace has to carry that weight. Required clearances to combustible materials and the ventilation rules for the surround are given in the manufacturer's manual, available in the documents section on this page.
What fuel should be used?
The fuel is seasoned hardwood with a moisture content of up to 20 %. The maximum log length is 500 mm. Wet wood gives noticeably less heat, smokes up the glass and speeds up soot deposits in the flue. Chipboard, painted or impregnated timber and waste must not be burnt — they shorten the life of the cast iron and void the warranty.
KAWMET products carry a 5-year manufacturer's warranty. Your nearest representative will confirm availability and purchase terms.
