Product code: W16LB-13,5kW EKO WR
Fireplace insert KAWMET W16 LB (13,5 kW) ECO
Product code: W16LB-13,5kW EKO WR
Fireplace insert KAWMET W16 LB (13,5 kW) ECO
In stock
Characteristics

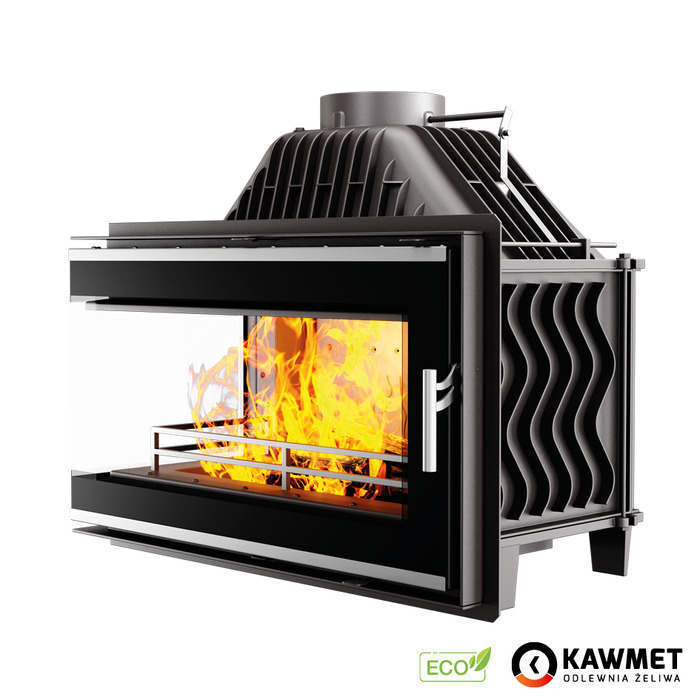

Fireplace insert KAWMET W16 LB (13,5 kW) ECO
General information
- Nominal rated power (kW) 13,5
- Efficiency (%) 80,4
- Material cast iron
- Fuel type Recommended seasoned hardwood (moisture ≤20%)
- Heating capacity (m²/m³) 135 / 337
- Average flue gas temperature (°C) 271,9

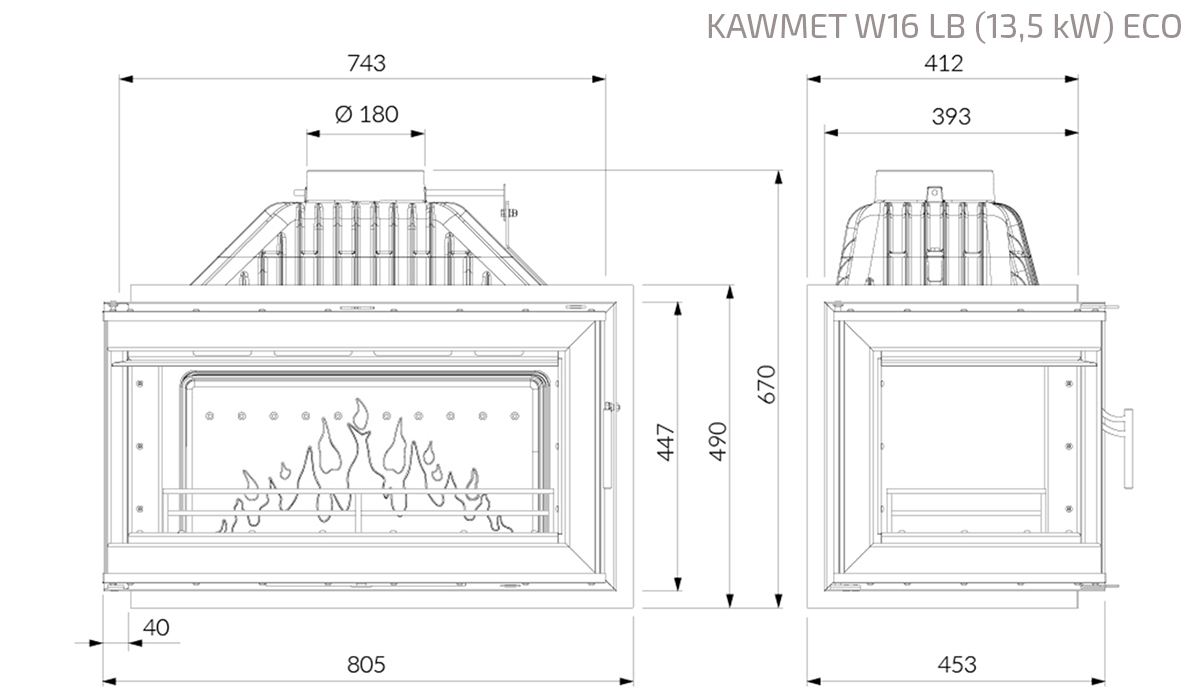

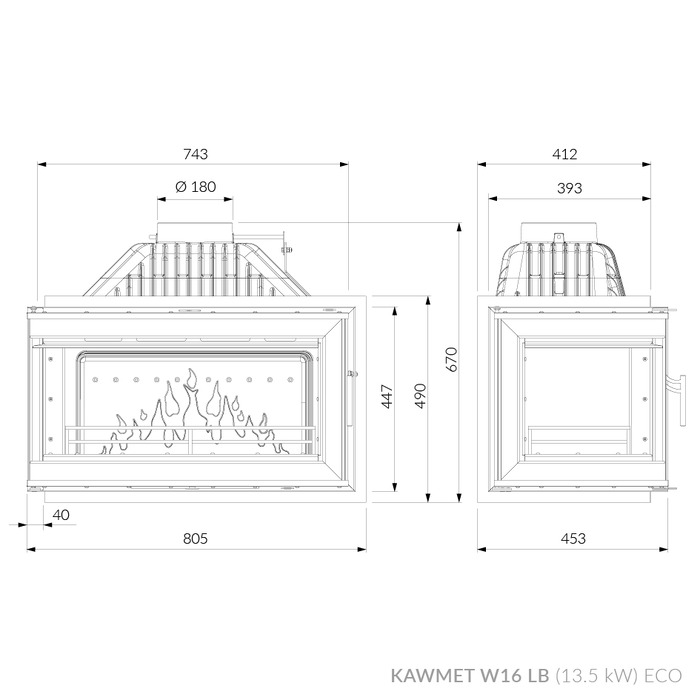

Physical parameters
- Weight (kg) 129
- Width (mm) 805
- Height (mm) 447 (670)
- Depth (mm) 453
- Flue pipe diameter (mm) 180
- Main glass dimension (mm) - L / H / W 760 / 405 / 4
- Left side glass dimension (mm) - L / H / W 408 / 405 / 4
- Max length of wood (mm) 550
- Recommended ventilation area of the air outlet grid / intake grid (cm²) 675 / 1013
Accessories
- Clean glass system yes
- Ashpan yes
- Removable grate yes
- Removable back plate yes
- Damper yes
- Deflector vermiculite
- Double combustion yes
- Bar colour silver
Energetic efficiency
- Energy efficiency class A
- Energy efficiency index (EEI) (%) 107
- CO emissions (at 13% O₂) (%) 0,12
- Solid particles (PM mg/m³) 47
- Organic gas compounds (OGC mg/m³) 108
- Carbon monoxide (CO mg/m³) 1482
- Nitrogen oxides (NOx mg/m³) 77
Certificates
- Compliance with ECOPROJECT standards yes
Additional information
- External air feed yes
- Manufacturer KAWMET
Physical parameters
- Weight (kg) 129
- Width (mm) 805
- Height (mm) 447 (670)
- Depth (mm) 453
- Flue pipe diameter (mm) 180
- Main glass dimension (mm) - L / H / W 760 / 405 / 4
- Left side glass dimension (mm) - L / H / W 408 / 405 / 4
- Max length of wood (mm) 550
- Recommended ventilation area of the air outlet grid / intake grid (cm²) 675 / 1013
Energetic efficiency
- Energy efficiency class A
- Energy efficiency index (EEI) (%) 107
- CO emissions (at 13% O₂) (%) 0,12
- Solid particles (PM mg/m³) 47
- Organic gas compounds (OGC mg/m³) 108
- Carbon monoxide (CO mg/m³) 1482
- Nitrogen oxides (NOx mg/m³) 77
Additional information
- External air feed yes
- Manufacturer KAWMET
General information
- Nominal rated power (kW) 13,5
- Efficiency (%) 80,4
- Material cast iron
- Fuel type Recommended seasoned hardwood (moisture ≤20%)
- Heating capacity (m²/m³) 135 / 337
- Average flue gas temperature (°C) 271,9
Accessories
- Clean glass system yes
- Ashpan yes
- Removable grate yes
- Removable back plate yes
- Damper yes
- Deflector vermiculite
- Double combustion yes
- Bar colour silver
Certificates
- Compliance with ECOPROJECT standards yes

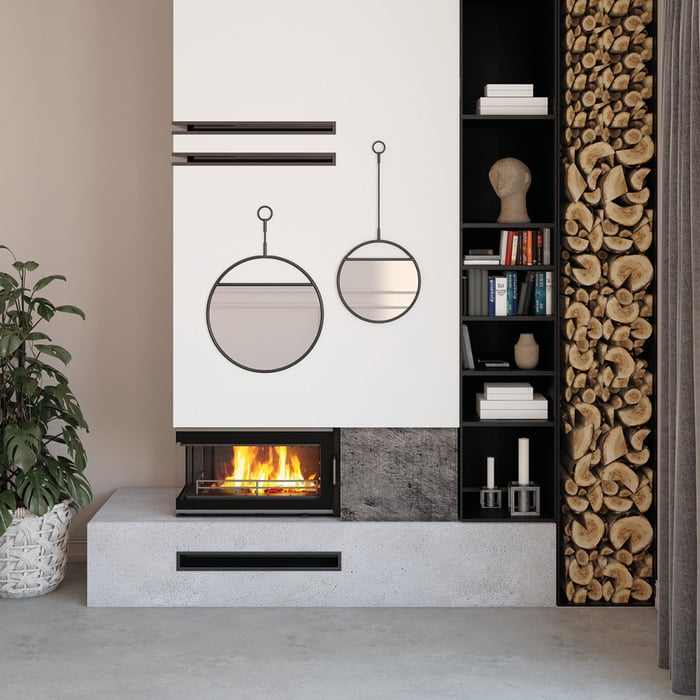

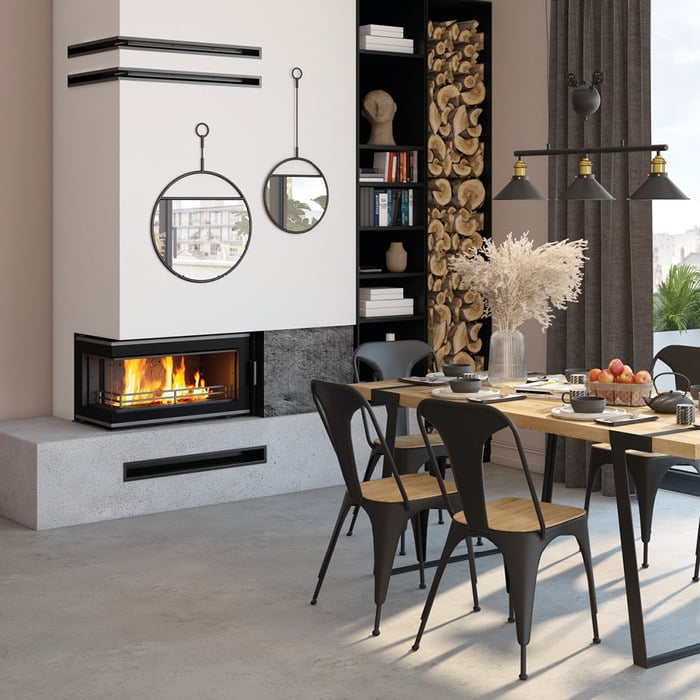

Fireplace in the interior
