Product code: W4PB WR

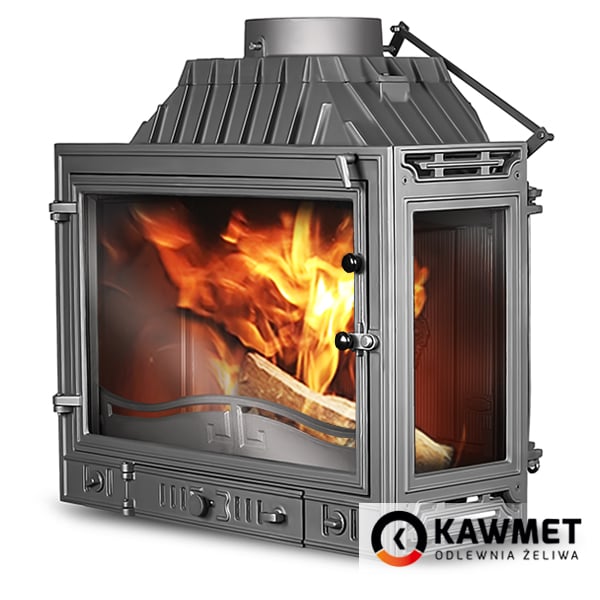

Fireplace insert KAWMET W4 PB (14,5 kW)
Product code: W4PB WR
Fireplace insert KAWMET W4 PB (14,5 kW)
In stock
Characteristics
Fireplace insert KAWMET W4 PB (14,5 kW)
General information
- Nominal rated power (kW) 14,5
- Efficiency (%) 72,0
- Material cast iron
- Fuel type Recommended seasoned hardwood (moisture ≤20%)
- Heating capacity (m²/m³) 145 / 363
- Average flue gas temperature (°C) 377,2
Physical parameters
- Weight (kg) 141
- Width (mm) 700
- Height (mm) 540 (785)
- Depth (mm) 420
- Flue pipe diameter (mm) 200
- Main glass dimension (mm) - L / H / W 590 / 380 / 4
- Right side glass dimension (mm) - L / H / W 370 / 220 / 4
- Max length of wood (mm) 600
- Recommended ventilation area of the air outlet grid / intake grid (cm²) 725 / 1088
Accessories
- Clean glass system yes
- Ashpan yes
- Removable grate yes
- Removable back plate yes
- Damper yes
- Double combustion no
Energetic efficiency
- Energy efficiency class A
- Energy efficiency index (EEI) (%) 94
Certificates
- Compliance with ECOPROJECT standards no
Additional information
- External air feed yes
- Manufacturer KAWMET
Physical parameters
- Weight (kg) 141
- Width (mm) 700
- Height (mm) 540 (785)
- Depth (mm) 420
- Flue pipe diameter (mm) 200
- Main glass dimension (mm) - L / H / W 590 / 380 / 4
- Right side glass dimension (mm) - L / H / W 370 / 220 / 4
- Max length of wood (mm) 600
- Recommended ventilation area of the air outlet grid / intake grid (cm²) 725 / 1088
Energetic efficiency
- Energy efficiency class A
- Energy efficiency index (EEI) (%) 94
Additional information
- External air feed yes
- Manufacturer KAWMET
General information
- Nominal rated power (kW) 14,5
- Efficiency (%) 72,0
- Material cast iron
- Fuel type Recommended seasoned hardwood (moisture ≤20%)
- Heating capacity (m²/m³) 145 / 363
- Average flue gas temperature (°C) 377,2
Accessories
- Clean glass system yes
- Ashpan yes
- Removable grate yes
- Removable back plate yes
- Damper yes
- Double combustion no
Certificates
- Compliance with ECOPROJECT standards no

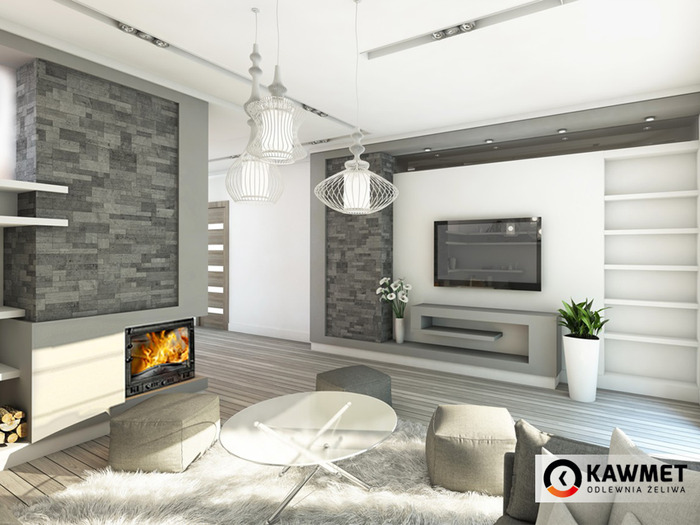

Fireplace in the interior

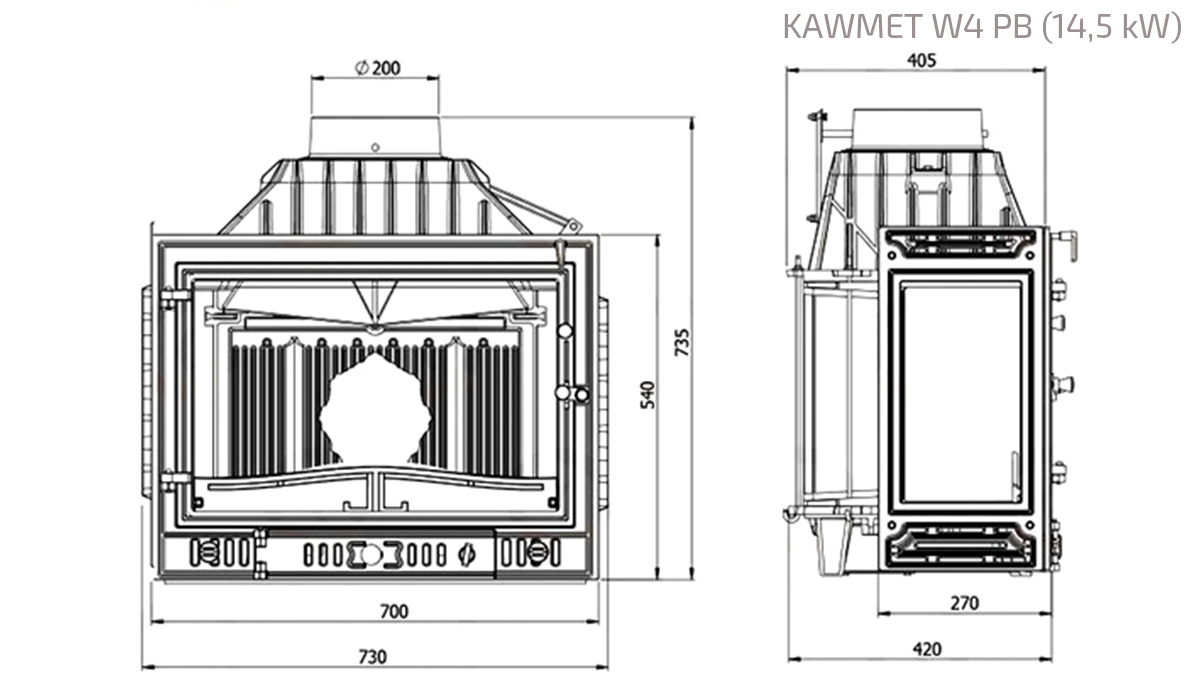

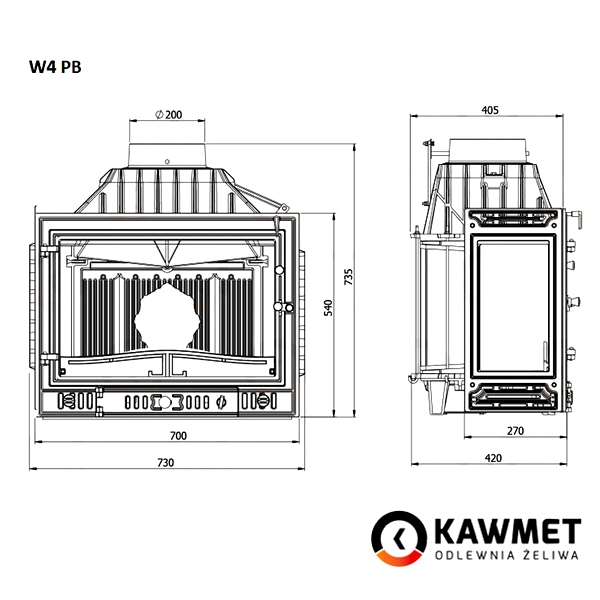

Technical drawing
Fireplace insert KAWMET W4 PB (14,5 kW)
