Product code: W9-9,8kW EKOWR

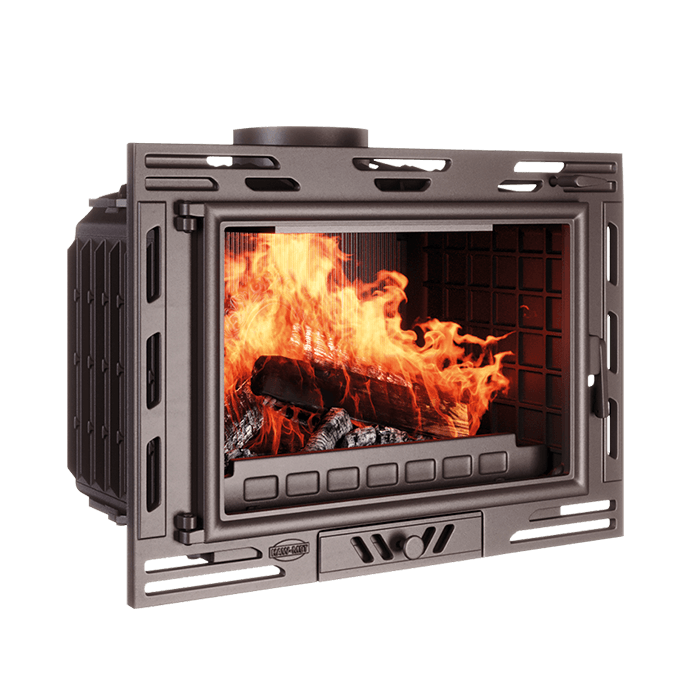

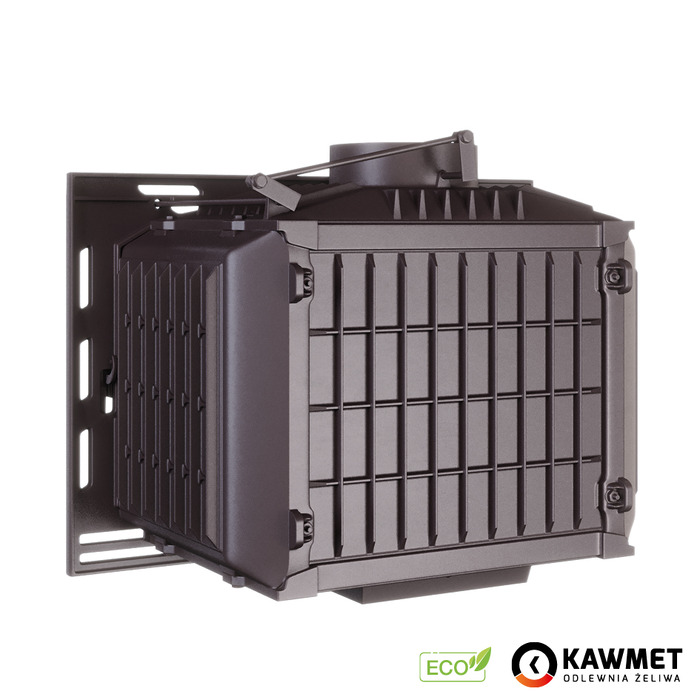

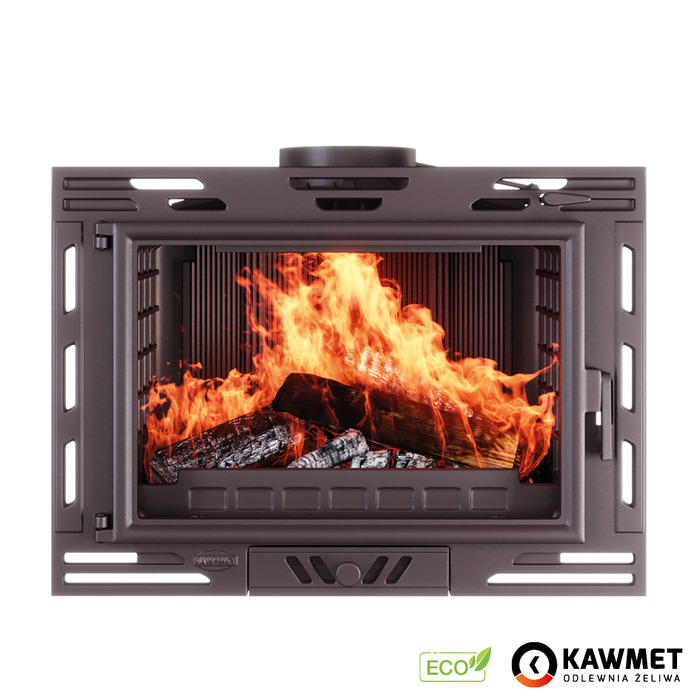

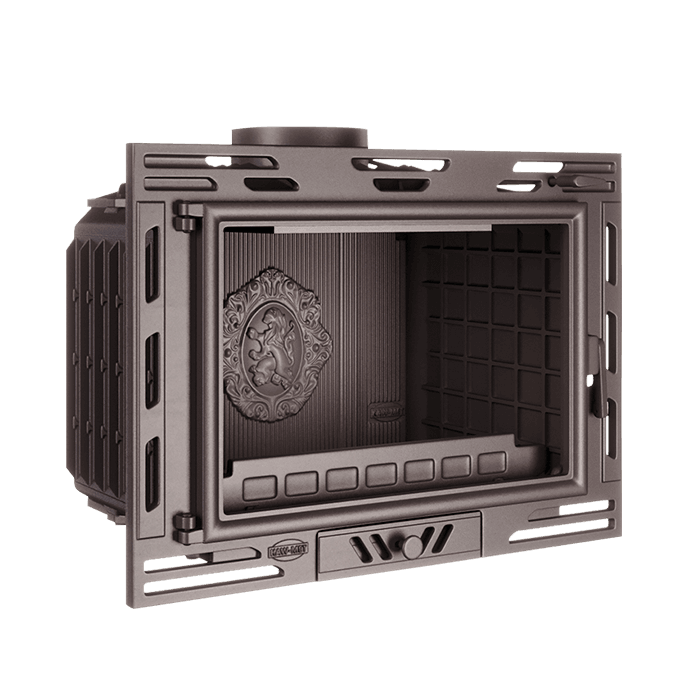

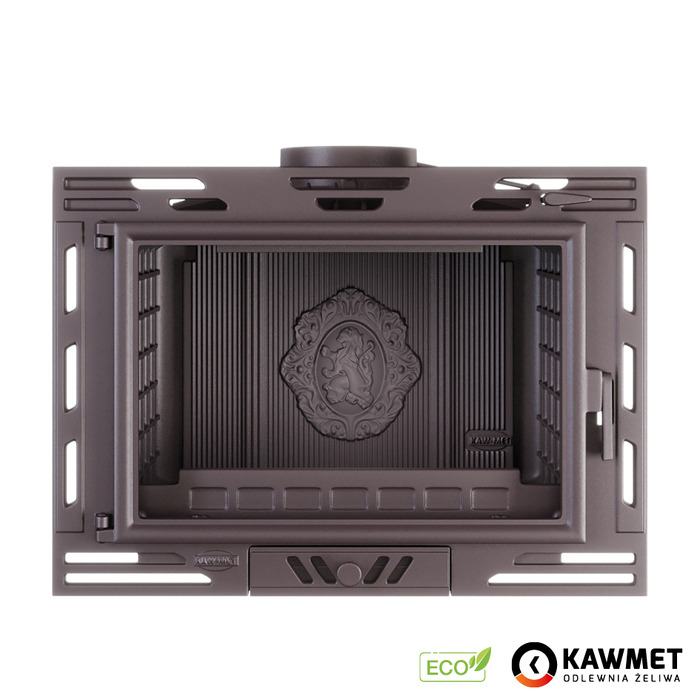

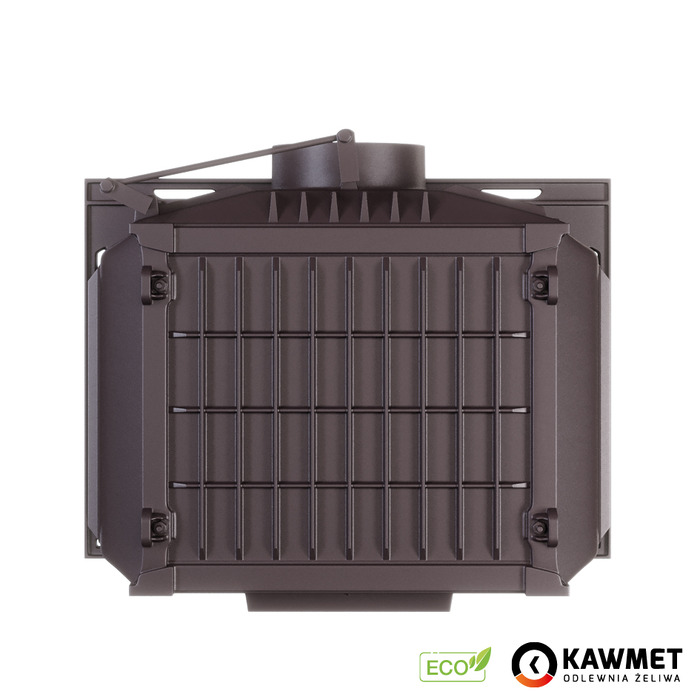

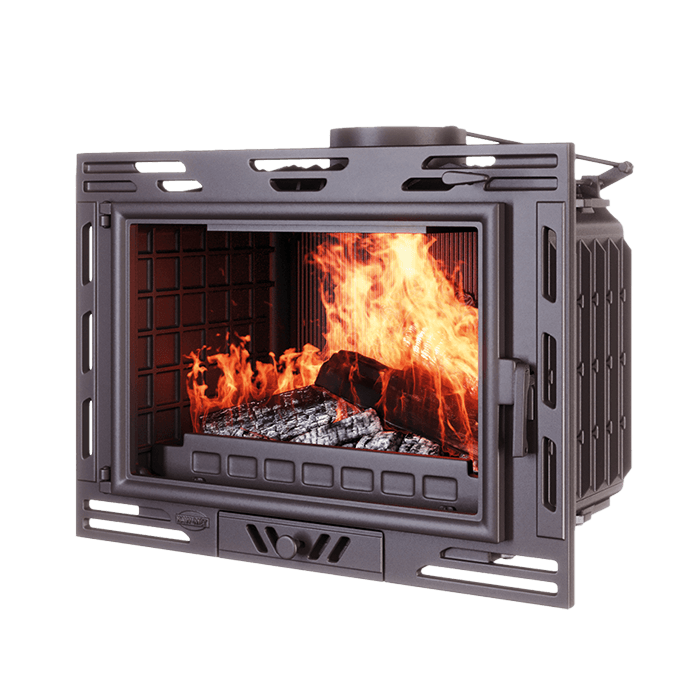

Fireplace insert KAWMET W9 (9,8 kW) ECO
Product code: W9-9,8kW EKOWR
Fireplace insert KAWMET W9 (9,8 kW) ECO
In stock
Characteristics

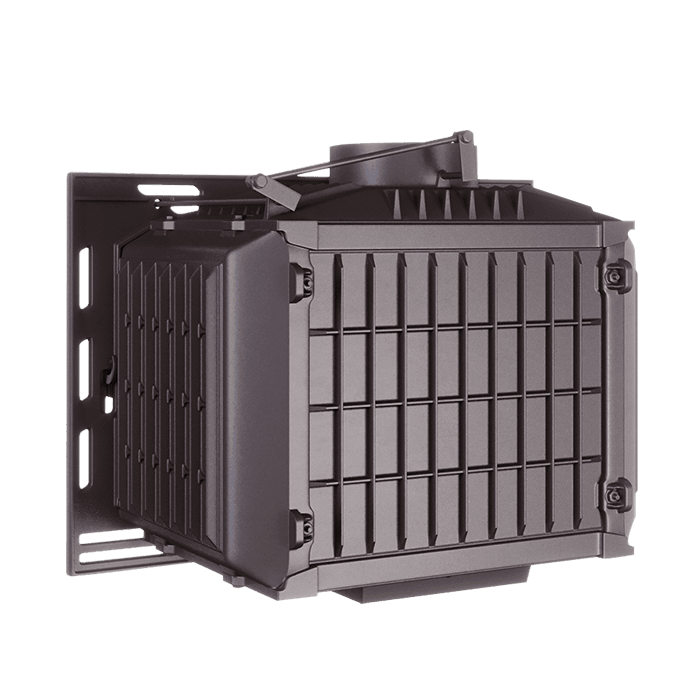

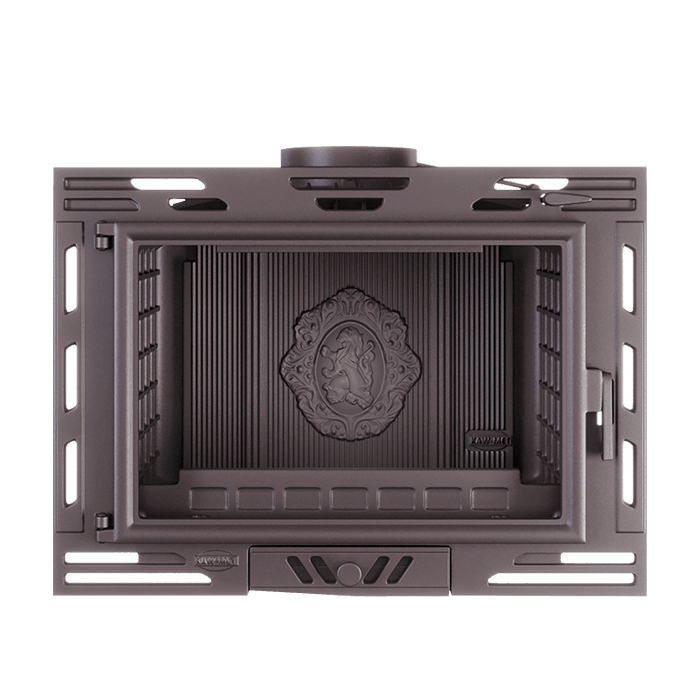

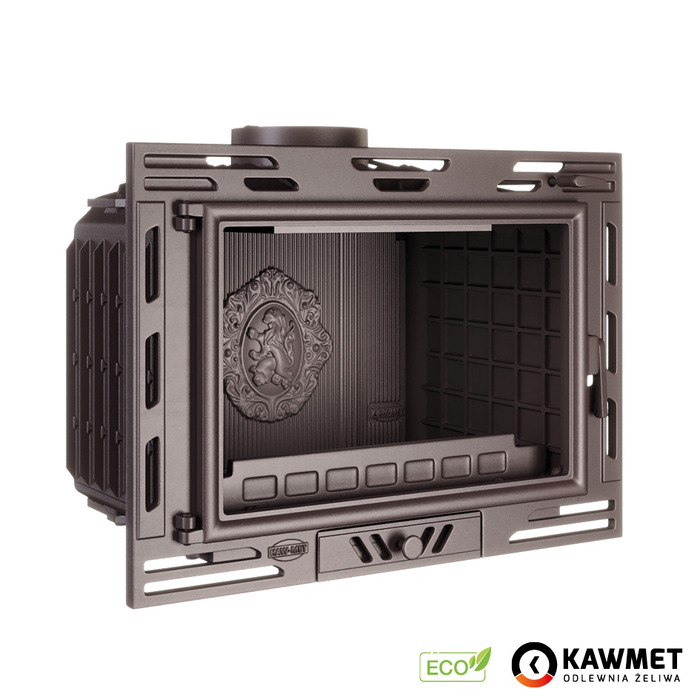

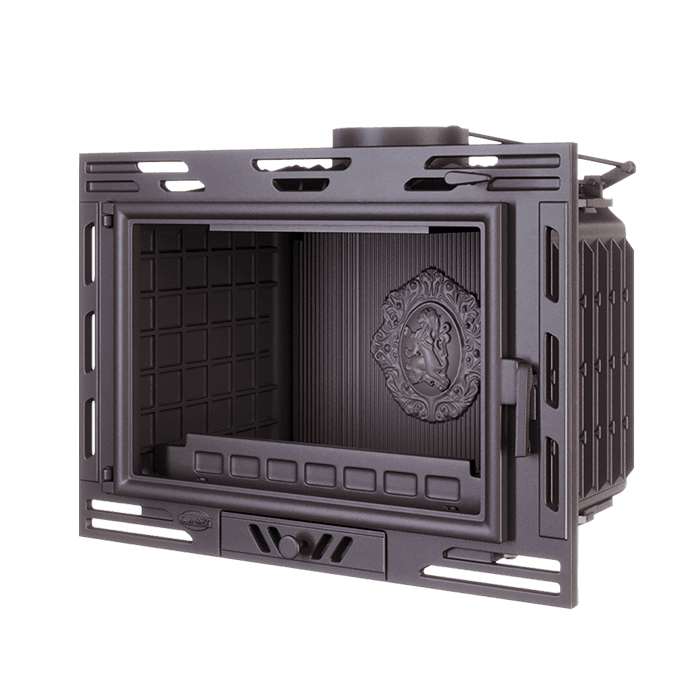

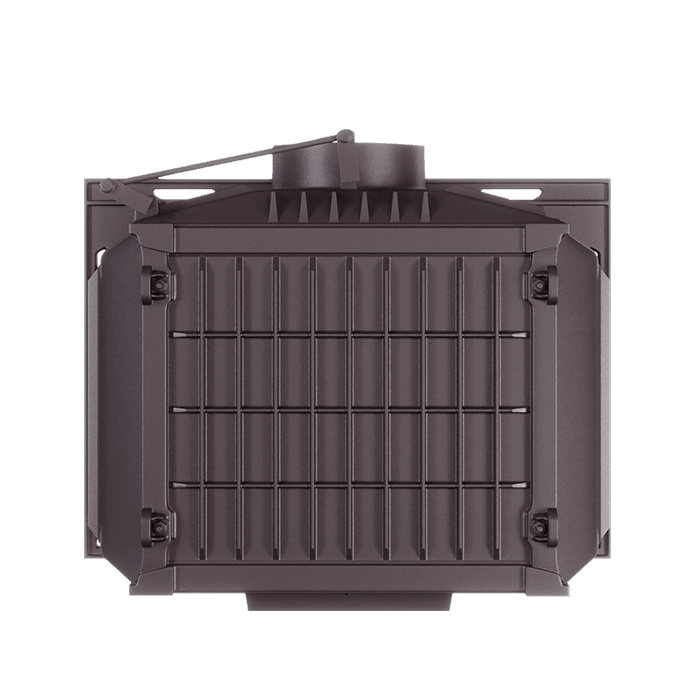

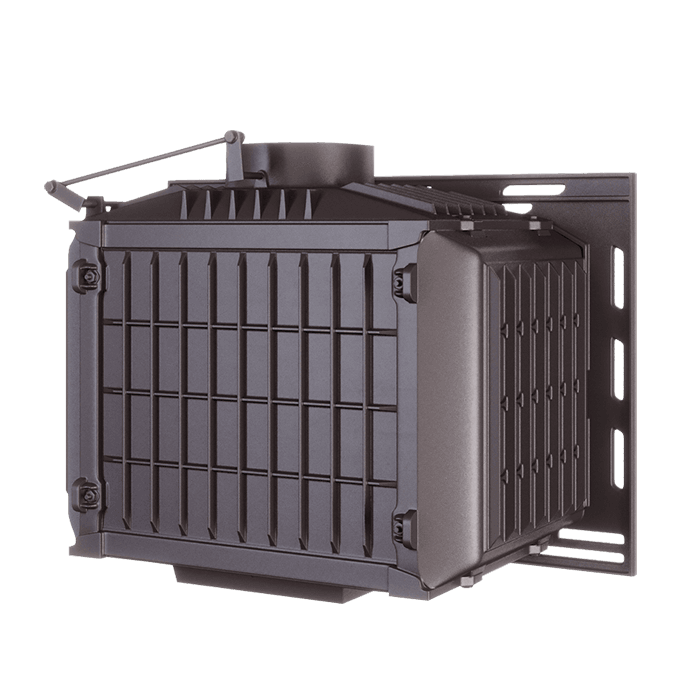

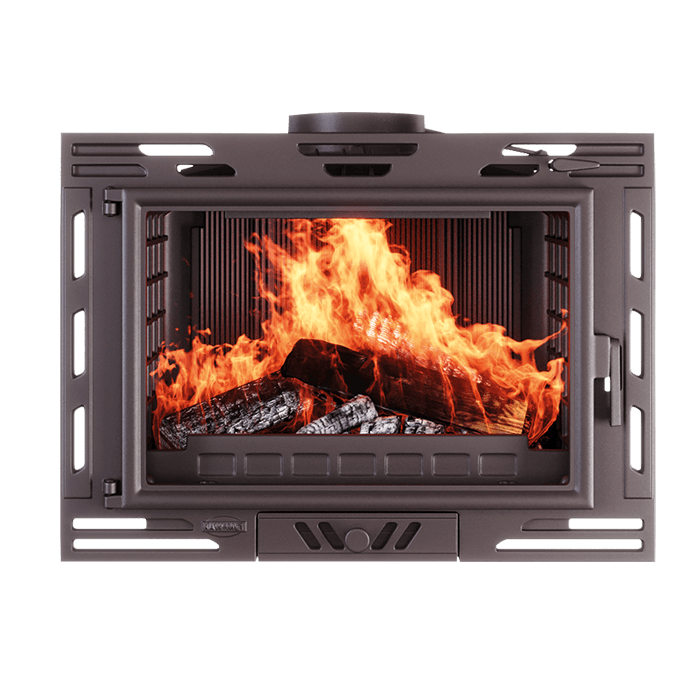

Fireplace insert KAWMET W9 (9,8 kW) ECO
General information
- Nominal rated power (kW) 9,8
- Efficiency (%) 66,0
- Material cast iron
- Fuel type Recommended seasoned hardwood (moisture ≤20%)
- Heating capacity (m²/m³) 98 / 245
- Average flue gas temperature (°C) 382
Physical parameters
- Weight (kg) 89
- Width (mm) 680
- Height (mm) 490 (520)
- Depth (mm) 405
- Flue pipe diameter (mm) 180
- Main glass dimension (mm) - L / H / W 504 / 317 / 4
- Max length of wood (mm) 480
- Recommended ventilation area of the air outlet grid / intake grid (cm²) 490 / 735
Accessories
- Clean glass system yes
- Ashpan yes
- Removable grate yes
- Removable back plate yes
- Damper yes
- Deflector vermiculite
- Double combustion no
Energetic efficiency
- Energy efficiency class B
- Energy efficiency index (EEI) (%) 86
- CO emissions (at 13% O₂) (%) 0,15
- Solid particles (PM mg/m³) 15
- Organic gas compounds (OGC mg/m³) 114
- Carbon monoxide (CO mg/m³) 1911
- Nitrogen oxides (NOx mg/m³) 12
Certificates
- Compliance with ECOPROJECT standards yes
Additional information
- External air feed no
- Manufacturer KAWMET
Physical parameters
- Weight (kg) 89
- Width (mm) 680
- Height (mm) 490 (520)
- Depth (mm) 405
- Flue pipe diameter (mm) 180
- Main glass dimension (mm) - L / H / W 504 / 317 / 4
- Max length of wood (mm) 480
- Recommended ventilation area of the air outlet grid / intake grid (cm²) 490 / 735
Energetic efficiency
- Energy efficiency class B
- Energy efficiency index (EEI) (%) 86
- CO emissions (at 13% O₂) (%) 0,15
- Solid particles (PM mg/m³) 15
- Organic gas compounds (OGC mg/m³) 114
- Carbon monoxide (CO mg/m³) 1911
- Nitrogen oxides (NOx mg/m³) 12
Additional information
- External air feed no
- Manufacturer KAWMET
General information
- Nominal rated power (kW) 9,8
- Efficiency (%) 66,0
- Material cast iron
- Fuel type Recommended seasoned hardwood (moisture ≤20%)
- Heating capacity (m²/m³) 98 / 245
- Average flue gas temperature (°C) 382
Accessories
- Clean glass system yes
- Ashpan yes
- Removable grate yes
- Removable back plate yes
- Damper yes
- Deflector vermiculite
- Double combustion no
Certificates
- Compliance with ECOPROJECT standards yes

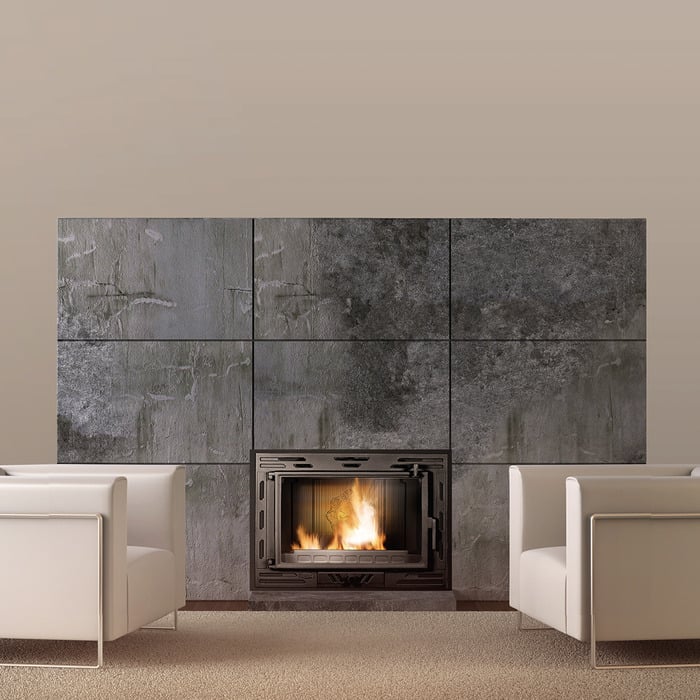

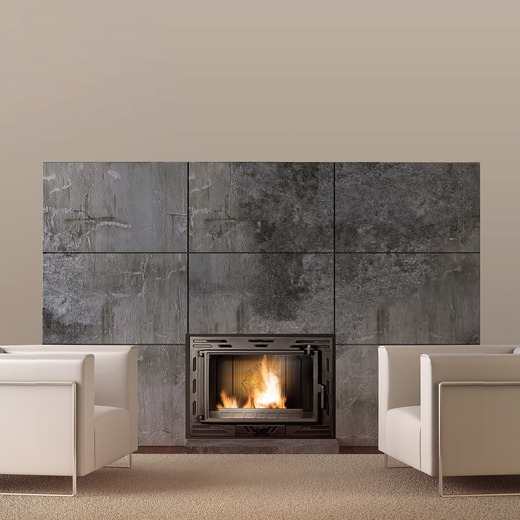

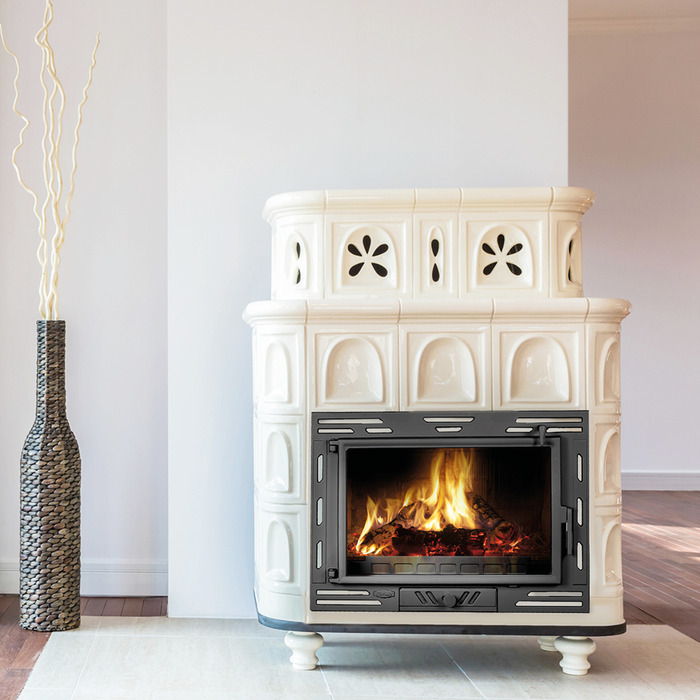

Fireplace in the interior

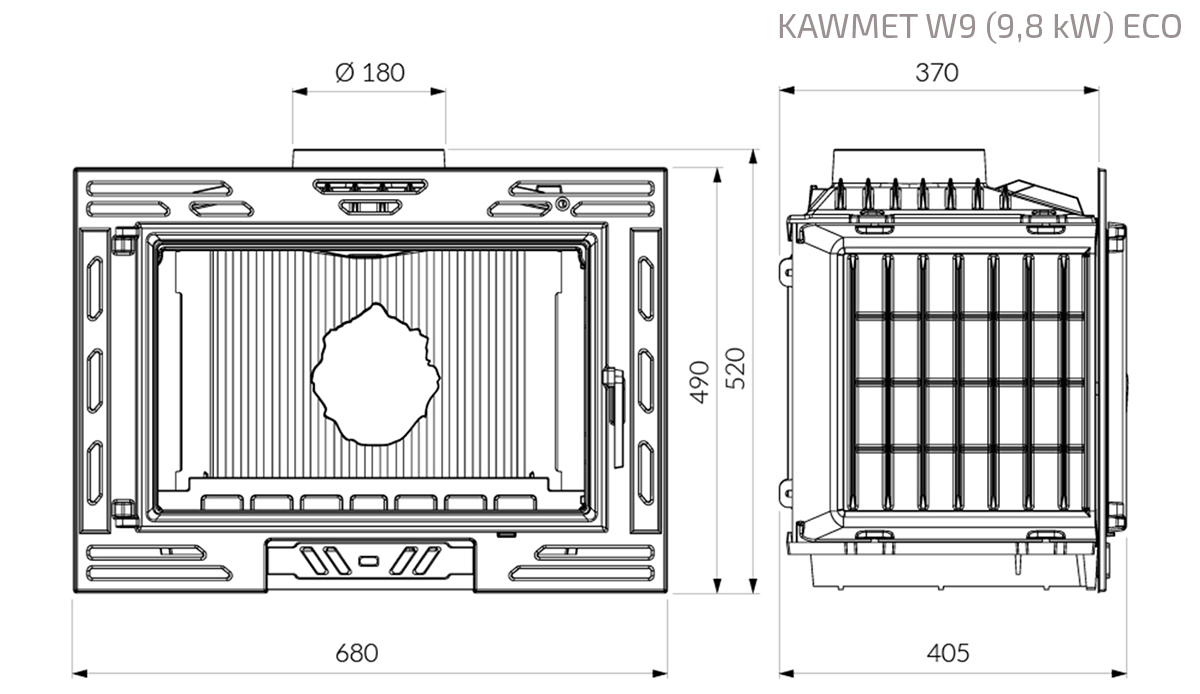

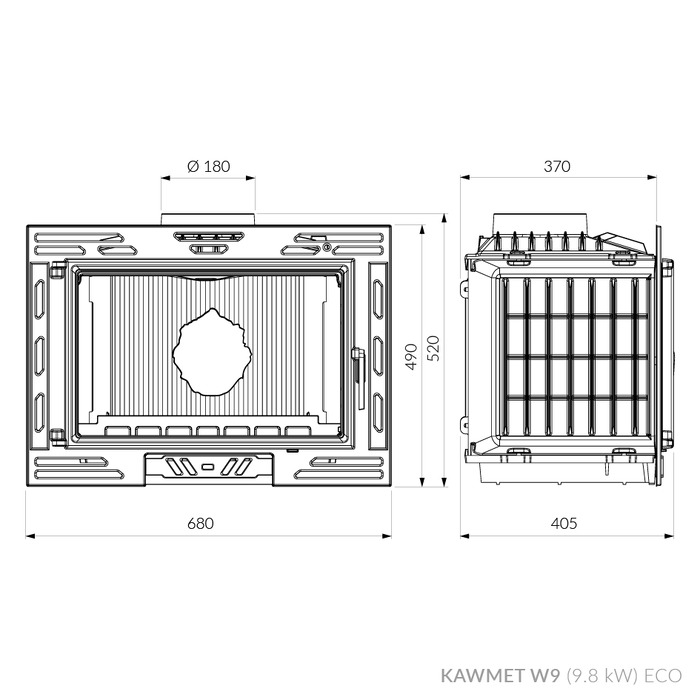

Technical drawing
Fireplace insert KAWMET W9 (9,8 kW) ECO
