Product code: LOFT/NP/9,5/80/45/BL

Fireplace ventilation grille 95x800x450 SAVEN Loft Angle black

Product code: LOFT/NP/9,5/80/45/BL
Fireplace ventilation grille 95x800x450 SAVEN Loft Angle black
In stock
Characteristics Fireplace ventilation grille 95x800x450 SAVEN Loft Angle black
General information
  • Material Steel
  • Colour black
  • Grille placement right angle
  • RAL colour RAL 9005
Physical parameters
  • Grille size (cm) 9,5x80x45
  • Air flow area (cm²) 653.8
  • Net weight (kg) 3.25
  • Gross weight (kg) 3.50
  • Outer dimensions of the grille AxBxD (mm) 802x452x94
  • Mounting dimensions CxExFxG (mm) 73x791.5x441.5x123
Accessories
  • Grille with louvres no
Additional information
  • Manufacturer SAVEN
  • Country Ukraine
  • Warranty 2 years
  • Barcode (GTIN) 4820295261988
  • Package dimensions (mm) 815x470x135x100
Physical parameters
  • Grille size (cm) 9,5x80x45
  • Air flow area (cm²) 653.8
  • Net weight (kg) 3.25
  • Gross weight (kg) 3.50
  • Outer dimensions of the grille AxBxD (mm) 802x452x94
  • Mounting dimensions CxExFxG (mm) 73x791.5x441.5x123
Additional information
  • Manufacturer SAVEN
  • Country Ukraine
  • Warranty 2 years
  • Barcode (GTIN) 4820295261988
  • Package dimensions (mm) 815x470x135x100
General information
  • Material Steel
  • Colour black
  • Grille placement right angle
  • RAL colour RAL 9005
Accessories
  • Grille with louvres no
Description Fireplace ventilation grille 95x800x450 SAVEN Loft Angle black

Fireplace ventilation grille SAVEN

Thanks to high-quality metal and temperature-resistant powder coating, SAVEN grids can be used both for venting hot air and delivering cold air, as well as for creating access points for inspections.

The ventilation grille can be mounted directly into the openings of the heat chamber using simple and reliable fastenings. The main advantages of SAVEN ventilation grids are:

  • DURABLE DESIGN. Elegant shapes and restrained colors will be an ideal stylistic addition to any design.
  • RELIABLE CONSTRUCTION. The solid and reliable construction ensures durability for many years.
  • TEMPERATURE-RESISTANT COATING. The use of a high-quality coating protects the grids from sudden changes in temperature, corrosion, and the effects of the surrounding environment.
  • CRAFTED BY HAND. Precision in the execution of each detail will give you confidence that you are using a high-quality product.
  • VERSATILITY OF USE. The materials used in the construction of the grid and mounting frame allow for their use in most building walls and frames of various thicknesses.

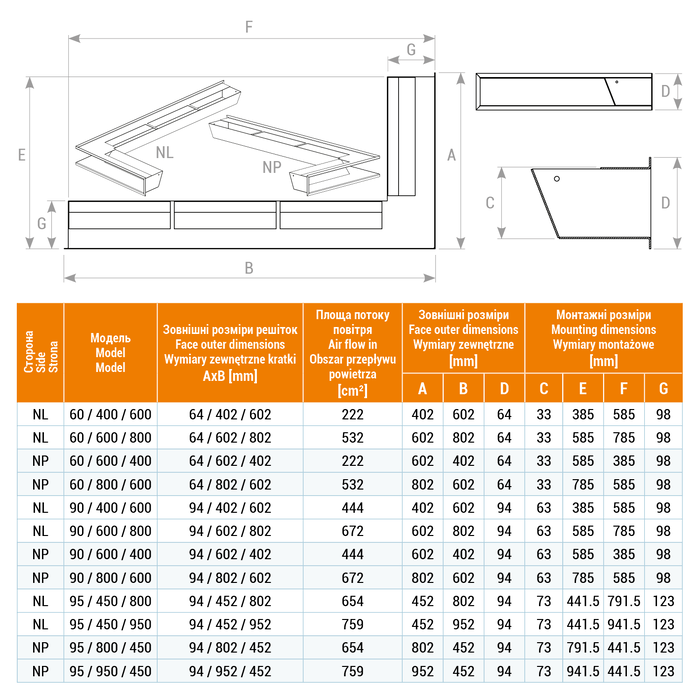

Technical drawing Fireplace ventilation grille 95x800x450 SAVEN Loft Angle black
Documentation
PDF, 66.1 Mb
PDF, 78.7 Mb
