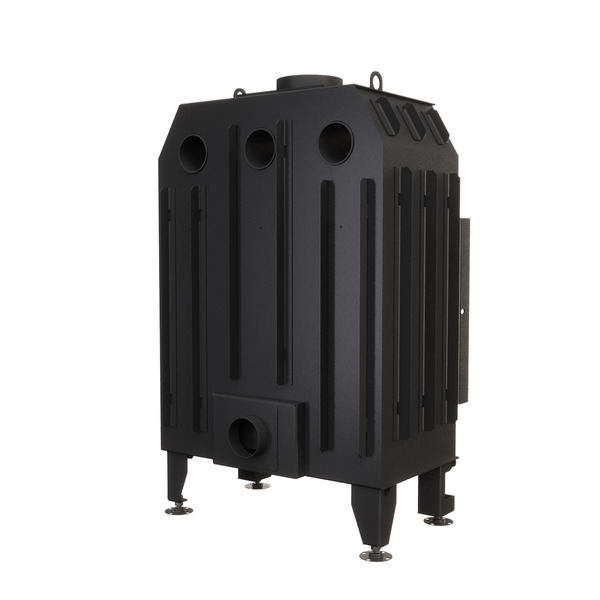

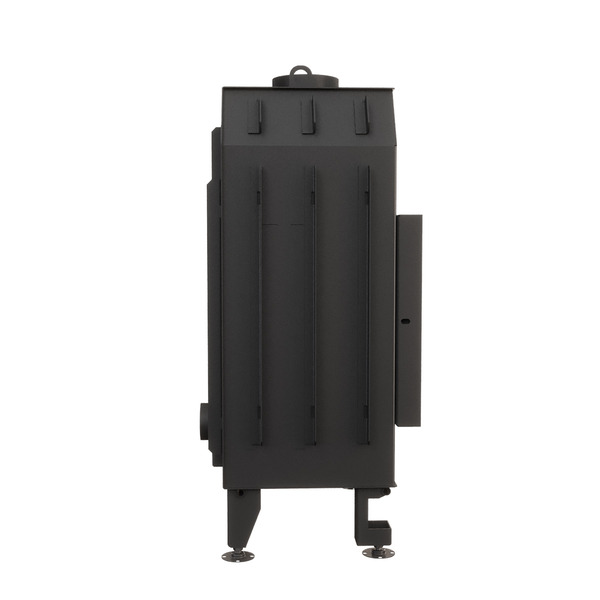

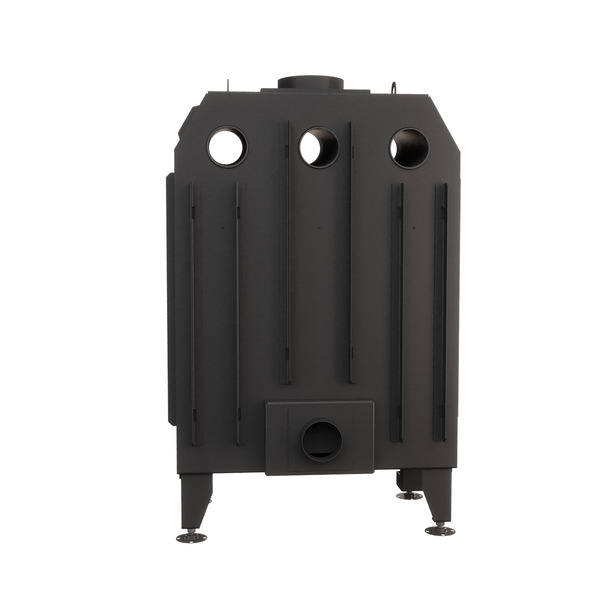

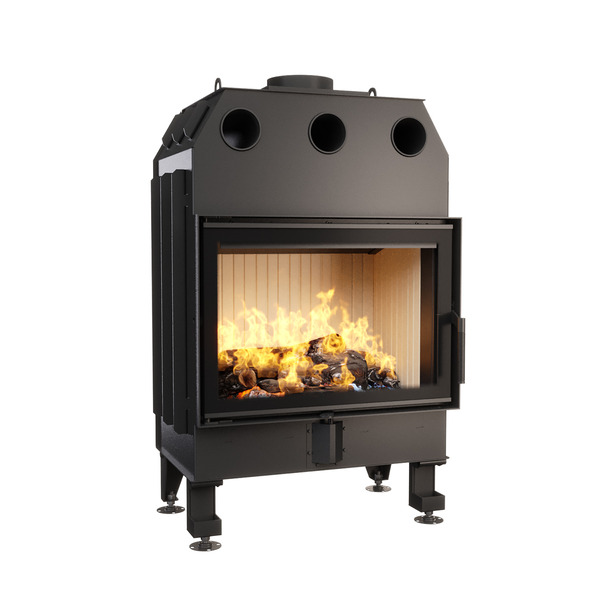

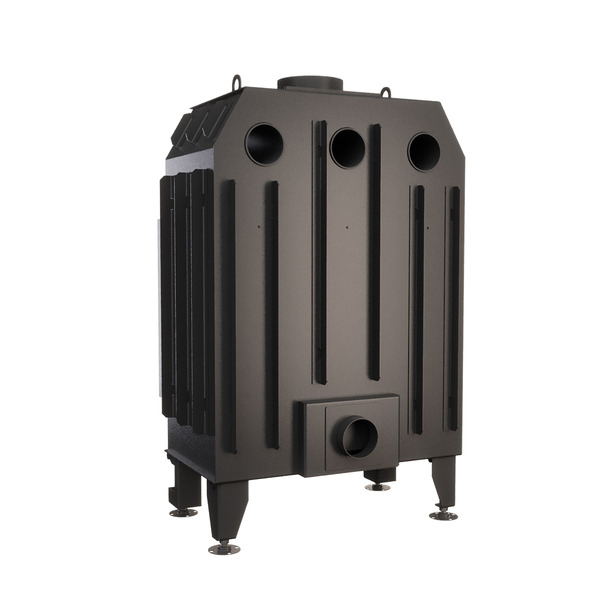

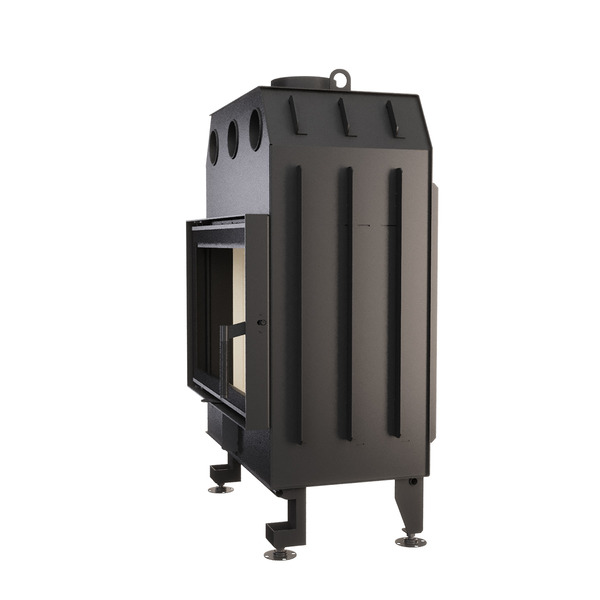

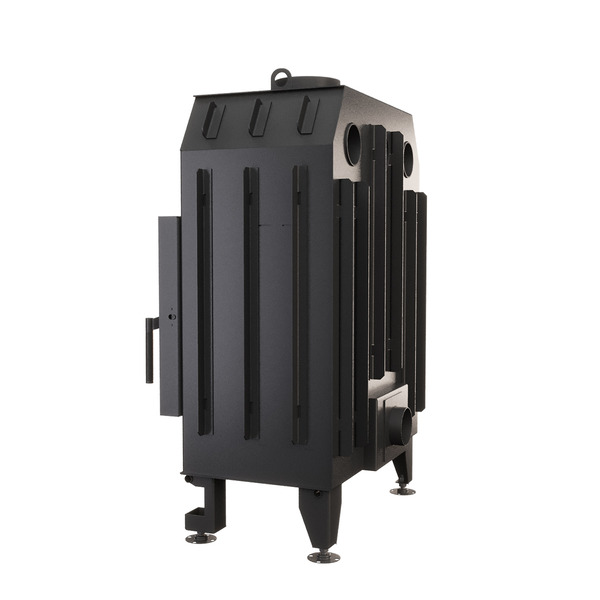

Product code: SE/70/50

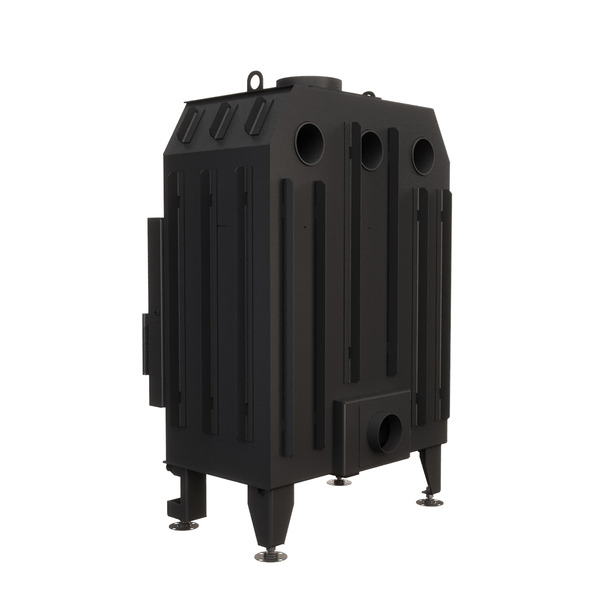

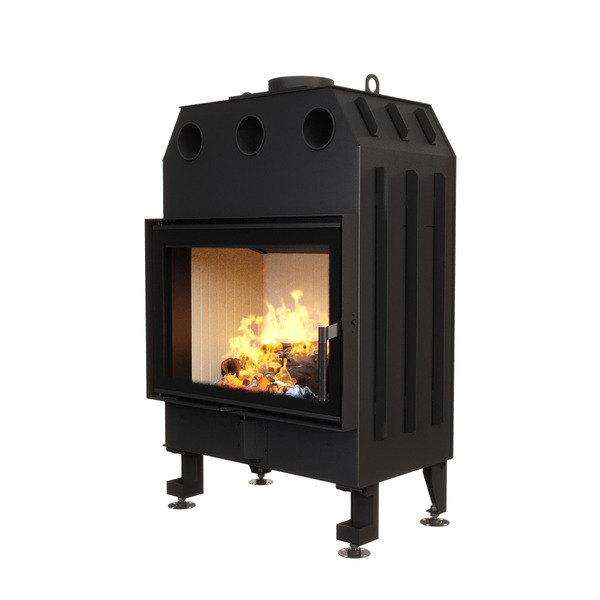

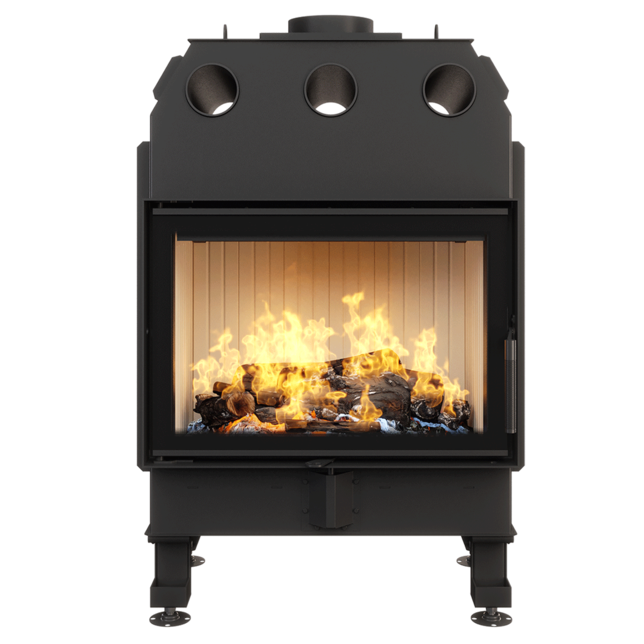

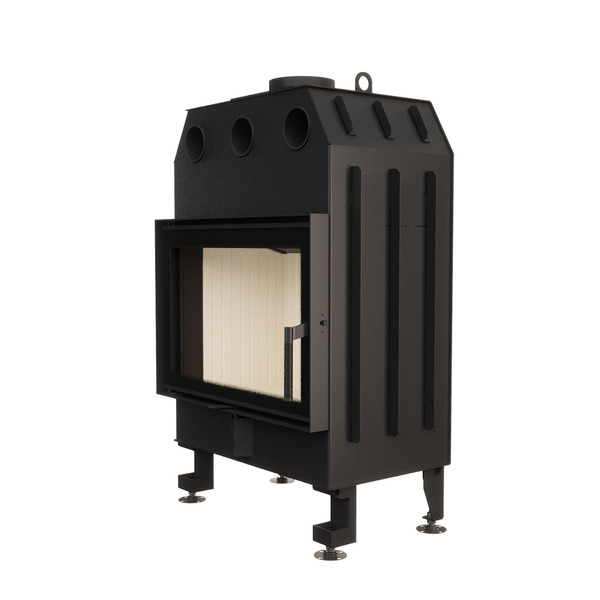

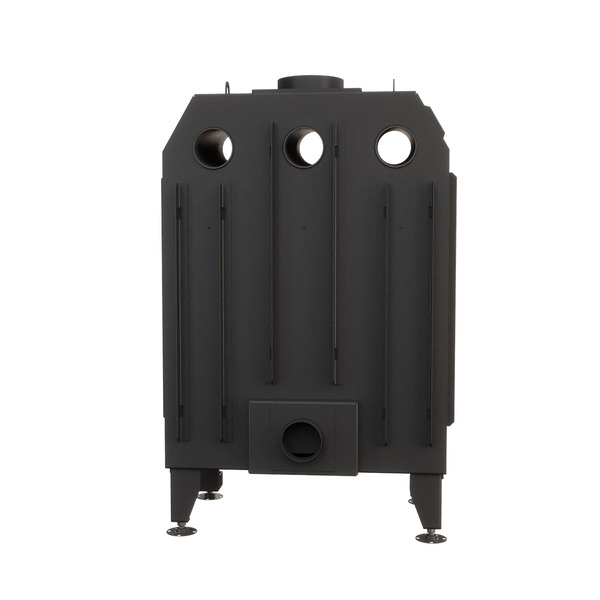

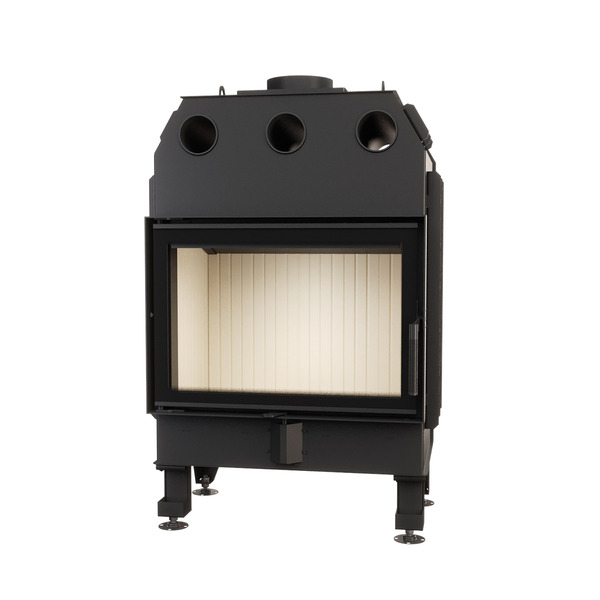

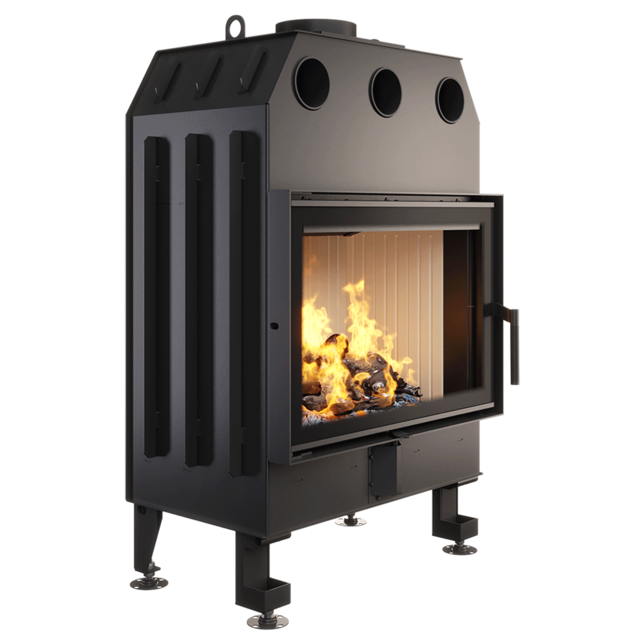

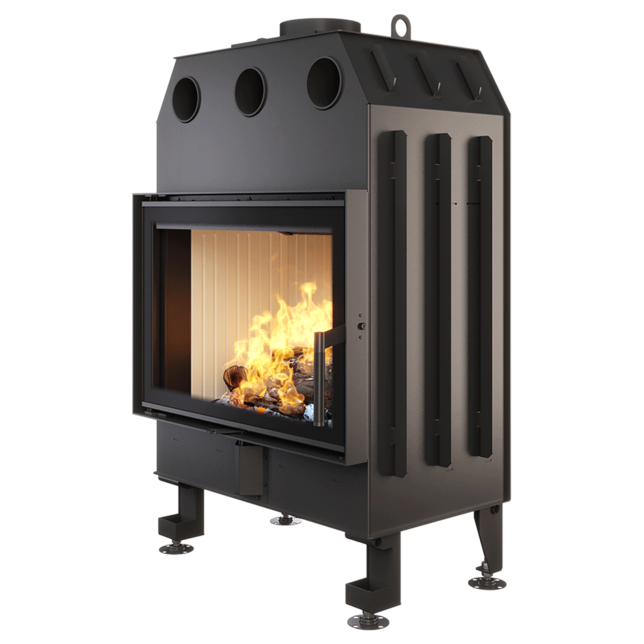

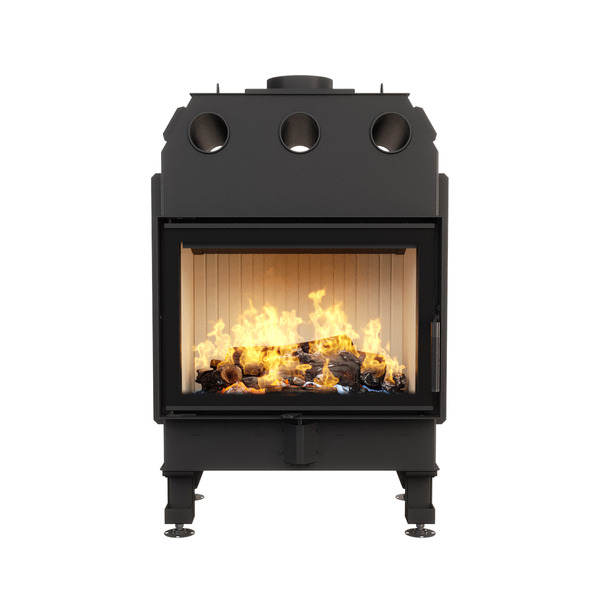

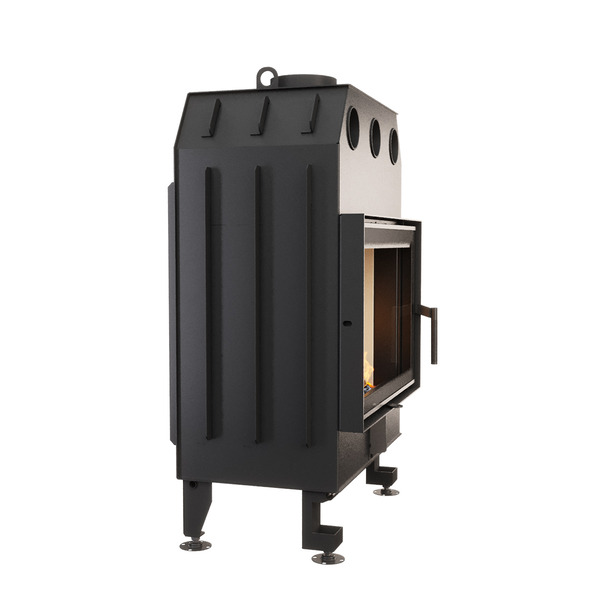

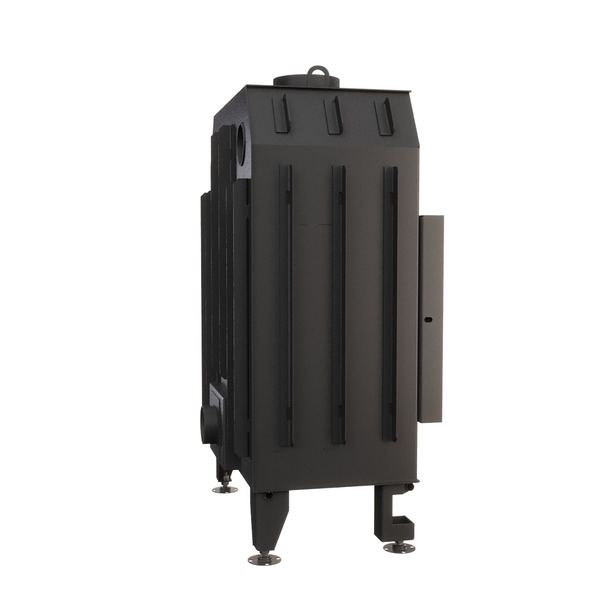

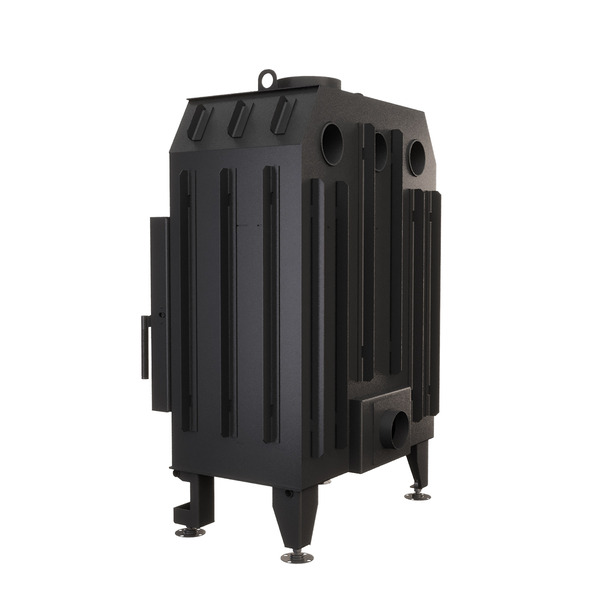

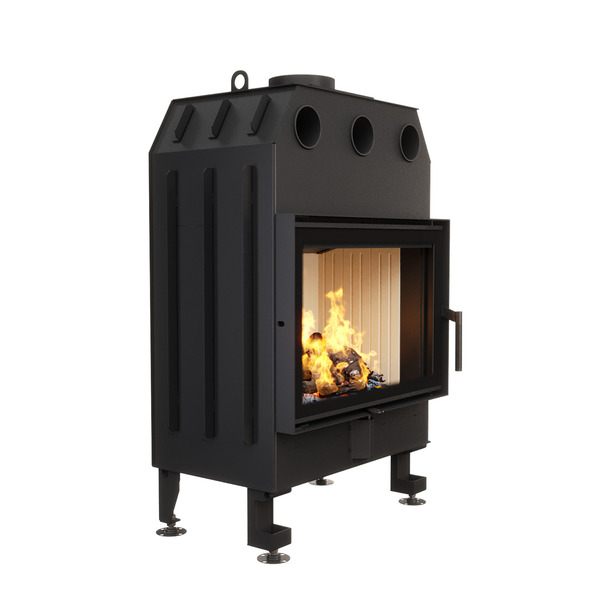

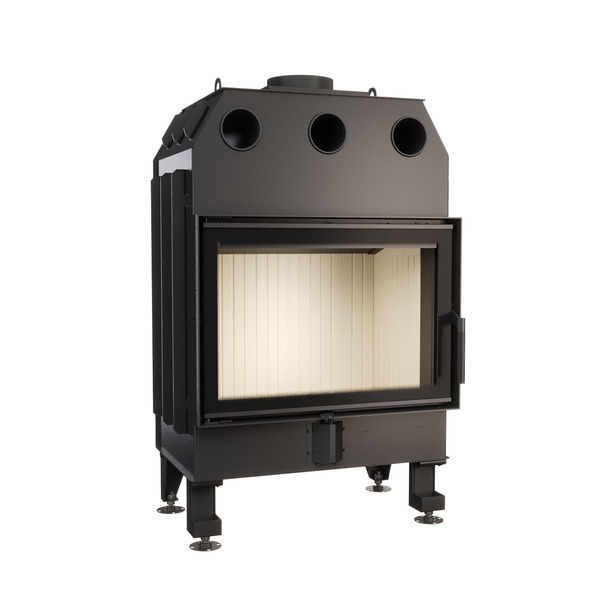

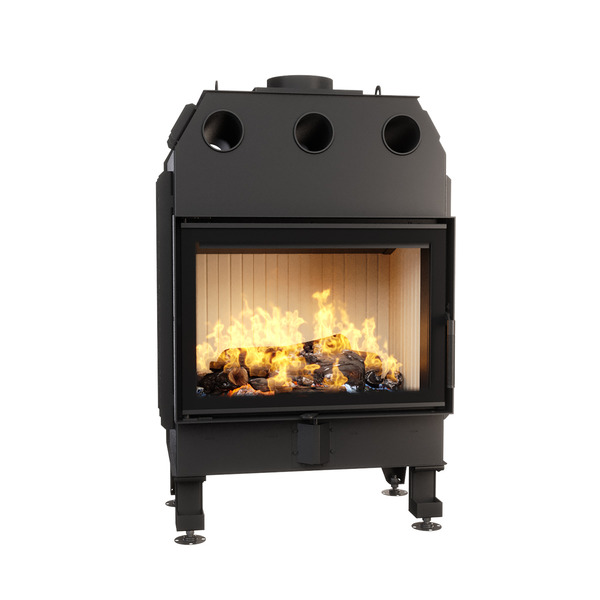

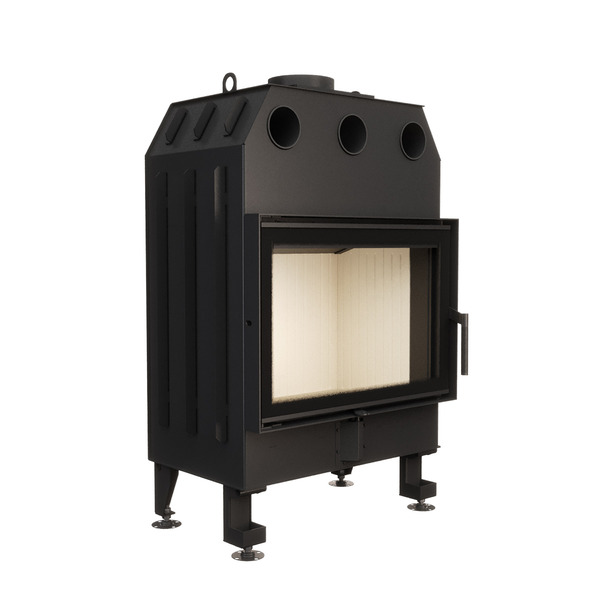

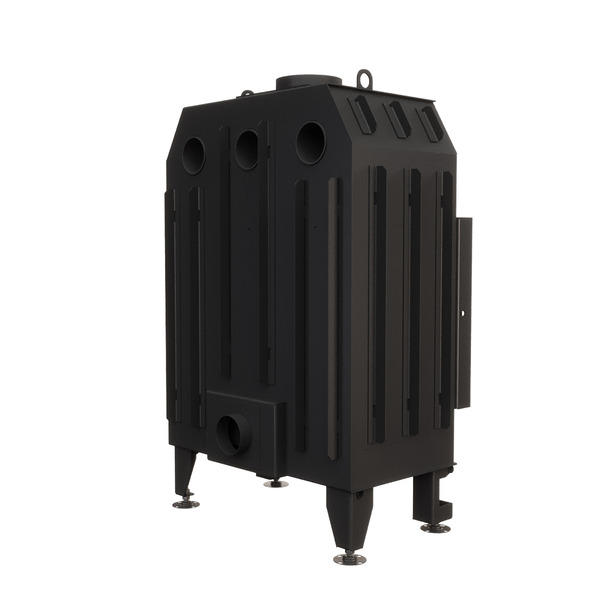

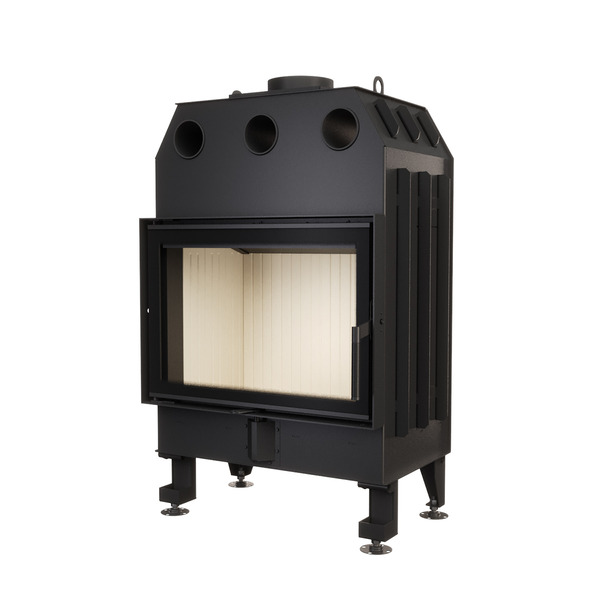

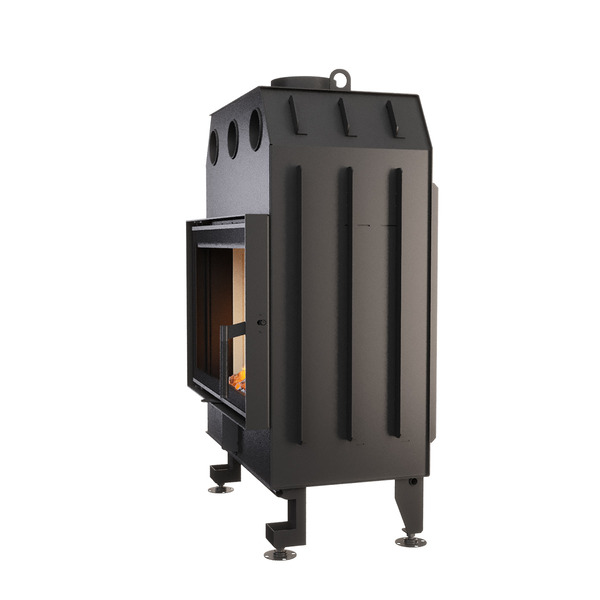

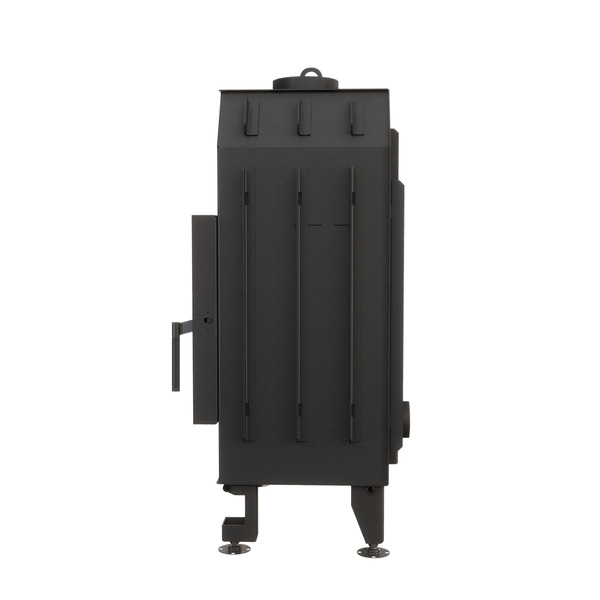

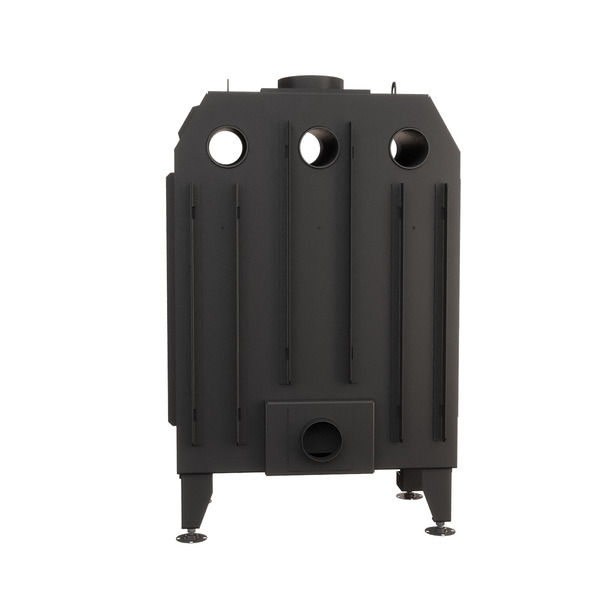

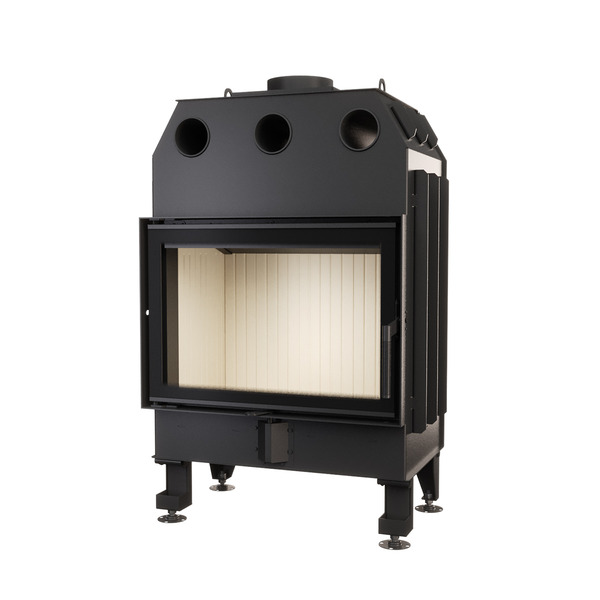

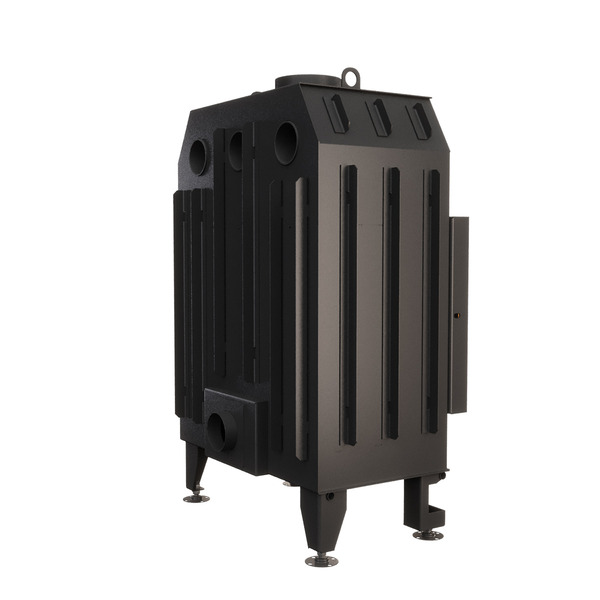

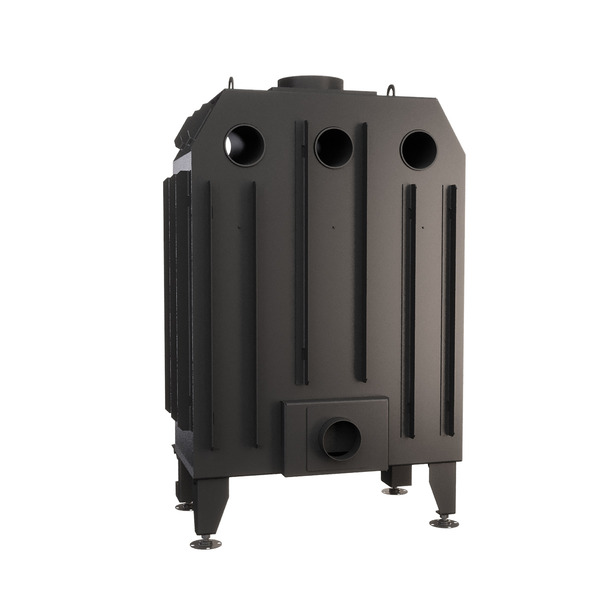

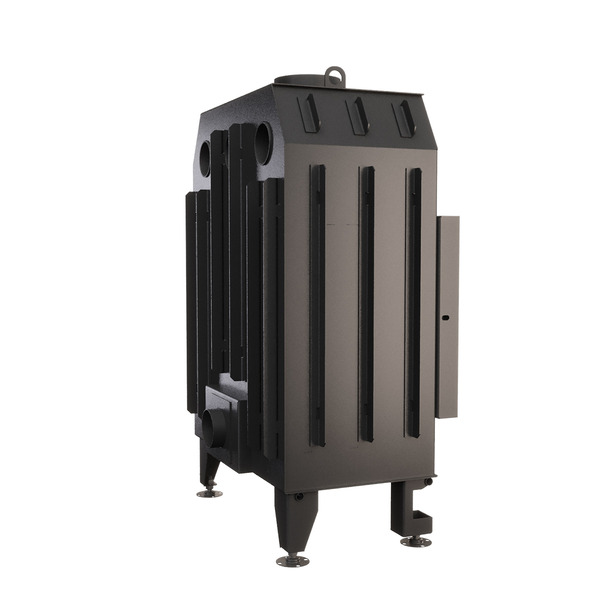

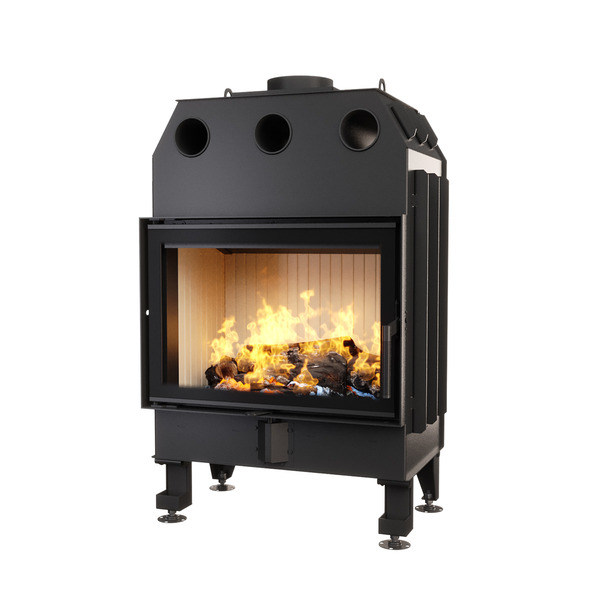

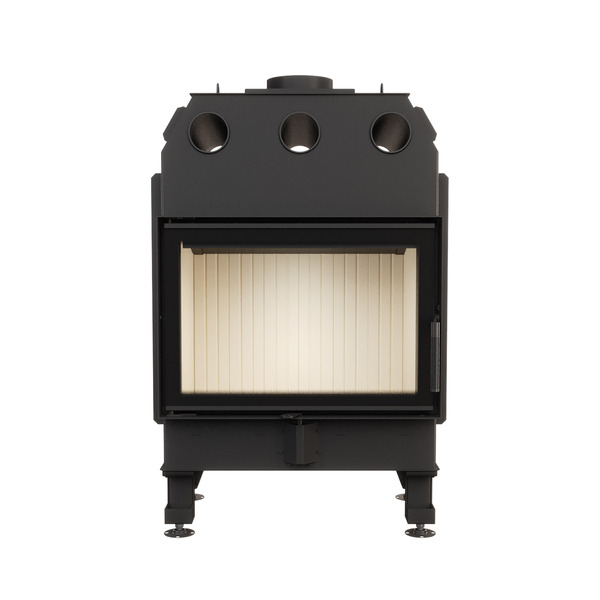

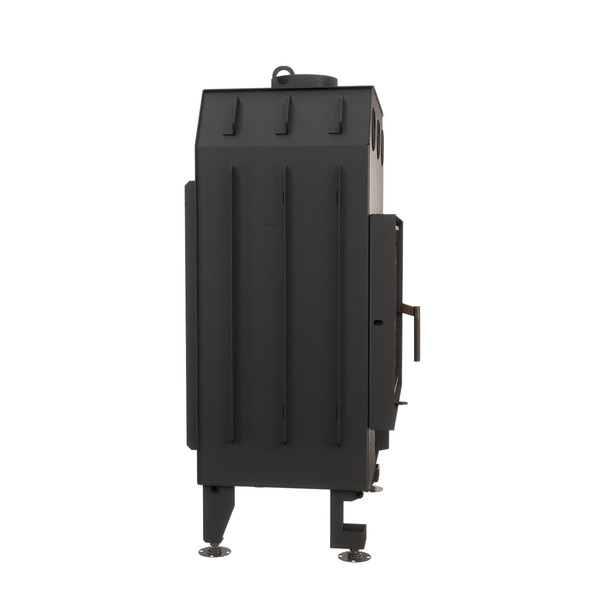

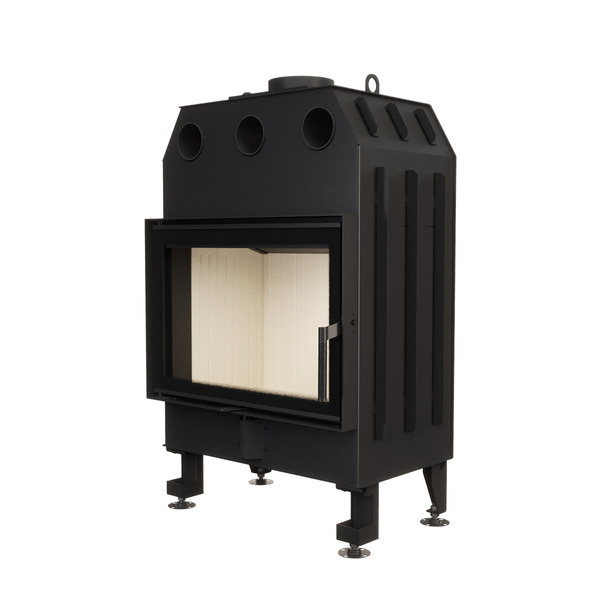

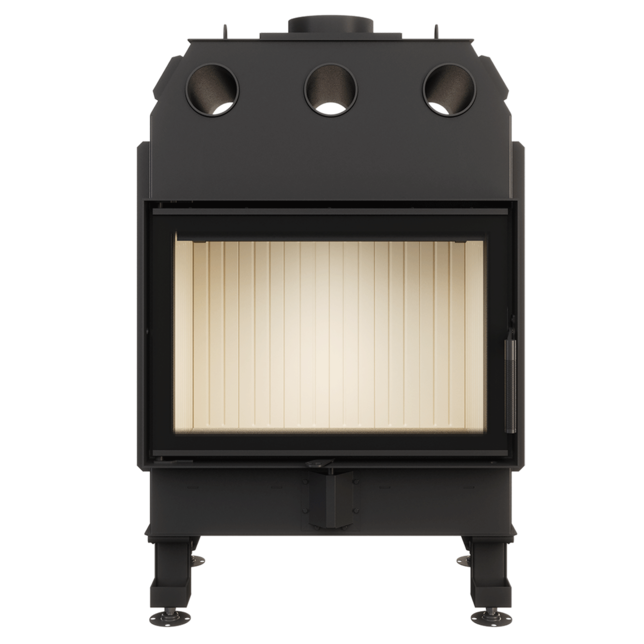

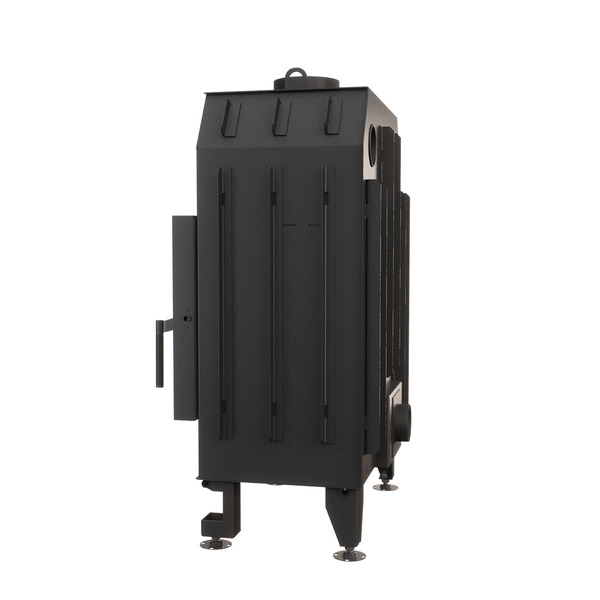

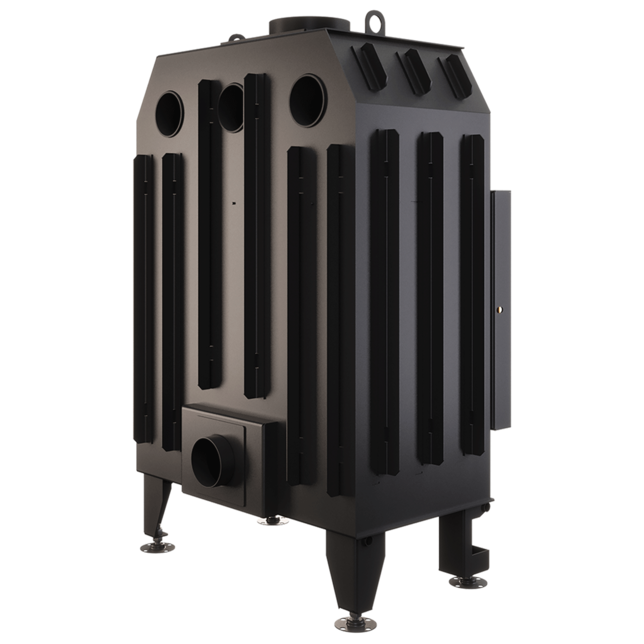

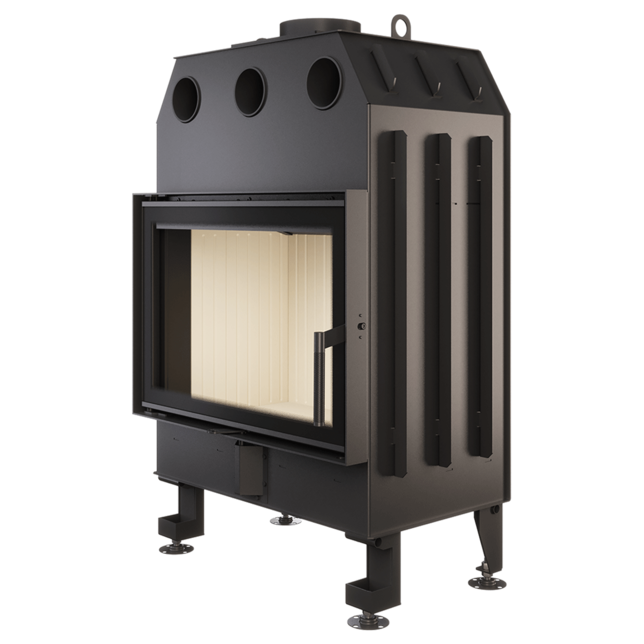

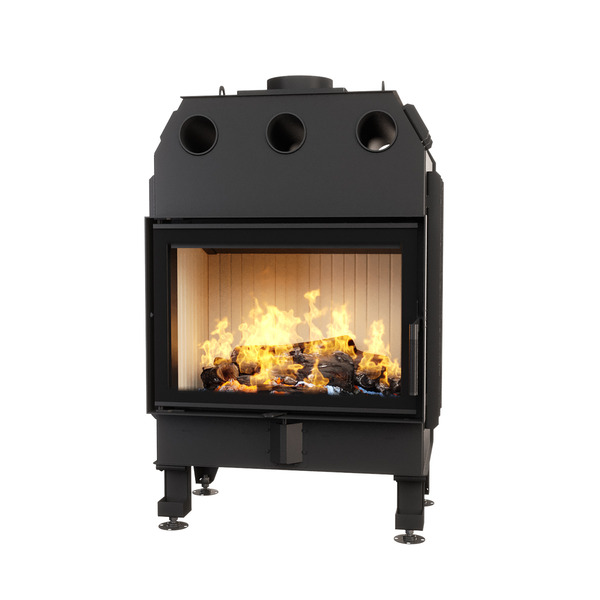

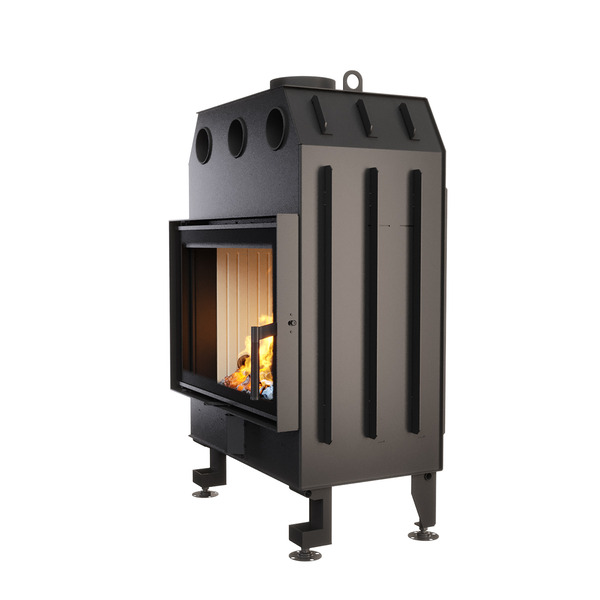

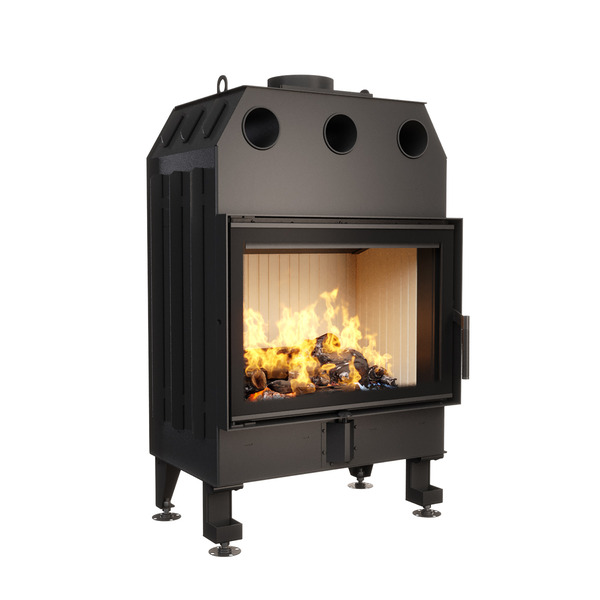

Fireplace insert SAVEN Energy 70x50 (15,1kW) ECO

Product code: SE/70/50
Fireplace insert SAVEN Energy 70x50 (15,1kW) ECO
In stock
A
Characteristics Fireplace insert SAVEN Energy 70x50 (15,1kW) ECO
General information
  • Nominal rated power (kW) 15.1
  • Efficiency (%) 78
  • Glass form straight
  • Material Steel
  • Fuel type wood
  • Heating capacity (m²/m³) 151 / 377

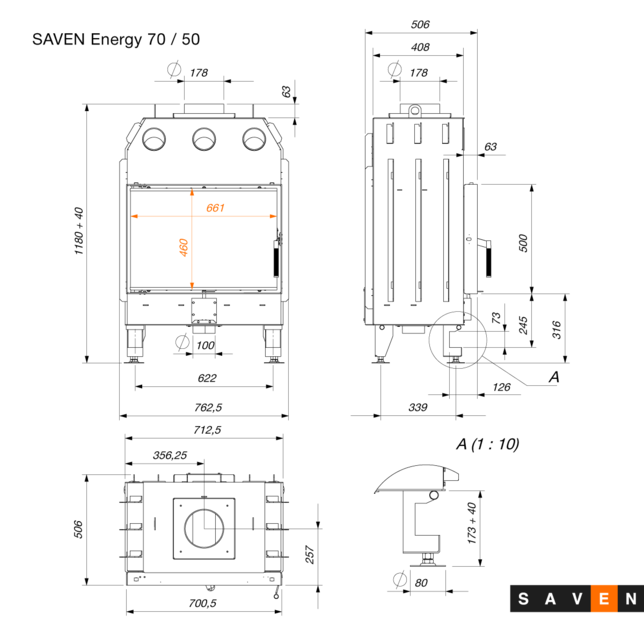

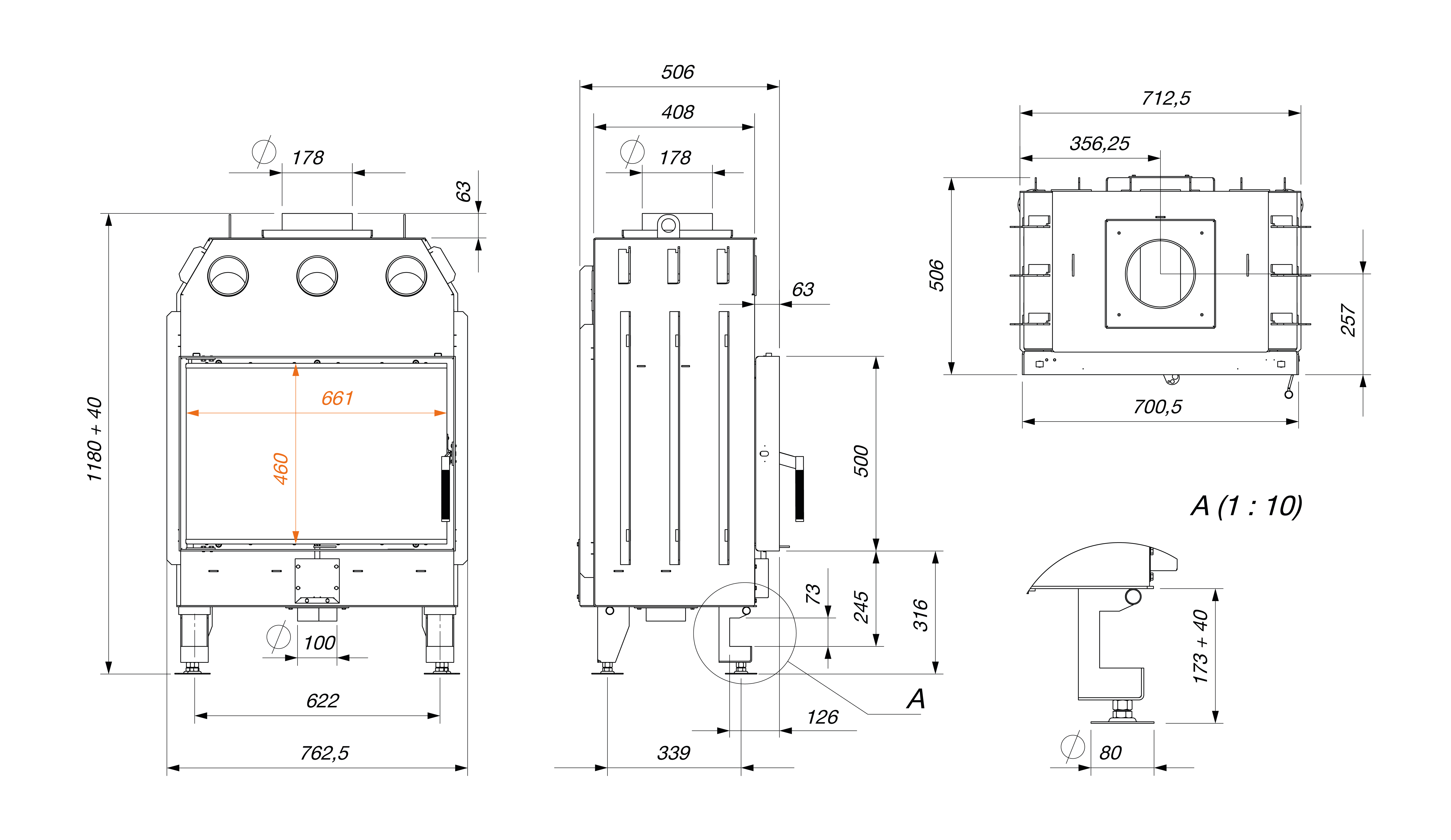

Physical parameters
  • Weight (kg) 194
  • Width (mm) 762.5
  • Height (mm) 1180
  • Depth (mm) 506
  • Flue pipe diameter (mm) 180
  • Main glass dimension (mm) - L / H / W 661x460x4
  • Max length of wood (mm) 600
  • Recommended ventilation area of the air outlet grid / intake grid (cm²) ≥ 755 / ≥ 1135 см²
  • External air inlet diameter (mm) 100
Accessories
  • Clean glass system yes
  • Flue exit options top
  • Double combustion yes
  • Door opening mechanism right/left side
  • Chamotte colour white
Energetic efficiency
  • Energy efficiency class A
Certificates
  • Compliance with ECOPROJECT standards yes
Additional information
  • External air feed lower / rear
  • Manufacturer SAVEN
  • Country Ukraine
  • Compatible with recuperation yes
  • Warranty 5 years
  • Barcode (GTIN) 4820295260059
  • Equipment type Fireplace inserts
Physical parameters
  • Weight (kg) 194
  • Width (mm) 762.5
  • Height (mm) 1180
  • Depth (mm) 506
  • Flue pipe diameter (mm) 180
  • Main glass dimension (mm) - L / H / W 661x460x4
  • Max length of wood (mm) 600
  • Recommended ventilation area of the air outlet grid / intake grid (cm²) ≥ 755 / ≥ 1135 см²
  • External air inlet diameter (mm) 100
Energetic efficiency
  • Energy efficiency class A
Additional information
  • External air feed lower / rear
  • Manufacturer SAVEN
  • Country Ukraine
  • Compatible with recuperation yes
  • Warranty 5 years
  • Barcode (GTIN) 4820295260059
  • Equipment type Fireplace inserts
General information
  • Nominal rated power (kW) 15.1
  • Efficiency (%) 78
  • Glass form straight
  • Material Steel
  • Fuel type wood
  • Heating capacity (m²/m³) 151 / 377
Accessories
  • Clean glass system yes
  • Flue exit options top
  • Double combustion yes
  • Door opening mechanism right/left side
  • Chamotte colour white
Certificates
  • Compliance with ECOPROJECT standards yes
Description Fireplace insert SAVEN Energy 70x50 (15,1kW) ECO

Steel fireplace insert SAVEN Energy 70x50 (15,1kW)​ ECO with straight glass: description

SAVEN steel fireplace inserts are made from certified materials and unique technologies. The main advantages of the SAVEN Energy 70x50 (15,1kW) ECO steel fireplace insert with straight glass are:

  • High efficiency due to the implementation of the smoke exhaust design
  • Compatibility with a recuperation system
  • Bottom and rear air intake
  • Double deflector in the steel fireplace insert for increased efficiency and better heat transfer
  • Sturdy and rigid construction that is not deformed and is not affected by high temperatures
  • Sealing of the steel fireplace insert with fireplace cords for additional sealing
  • Unique leg design of the steel fireplace insert with straight glass for easy and quick installation
  • Smooth and easy flame control with a single regulator

The one-sided steel fireplace insert SAVEN Energy 70x50 (15,1kW) ECO is made exclusively from high-quality and proven materials. The production process used:

  1. Hot-rolled low-alloyed steel with a thickness of 3 to 5 mm
  2. Lining with thick protective refractory plates with SAVEN's proprietary design
  3. Environmentally friendly paint that does not emit smoke during ignition and is resistant to high temperature fluctuations
  4. Heat-resistant glass from the German manufacturer Schott Robax (4 mm), which can withstand temperatures up to 760 °C

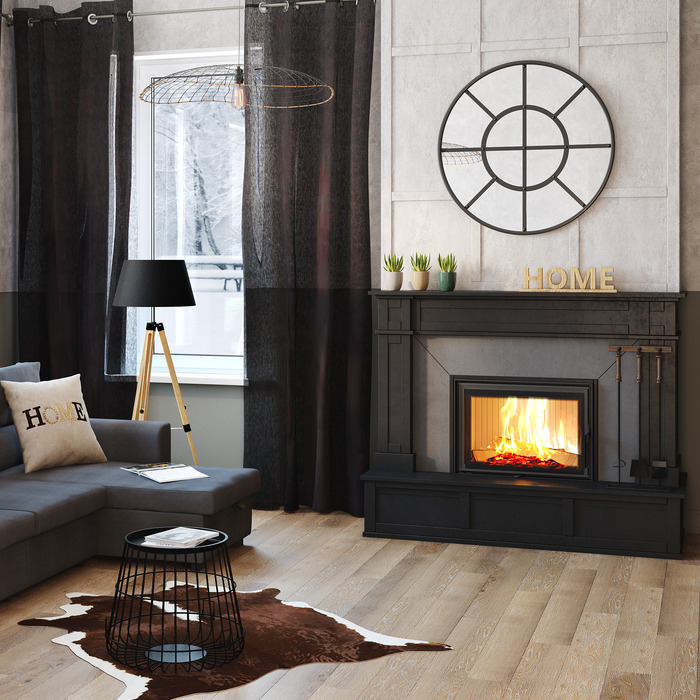

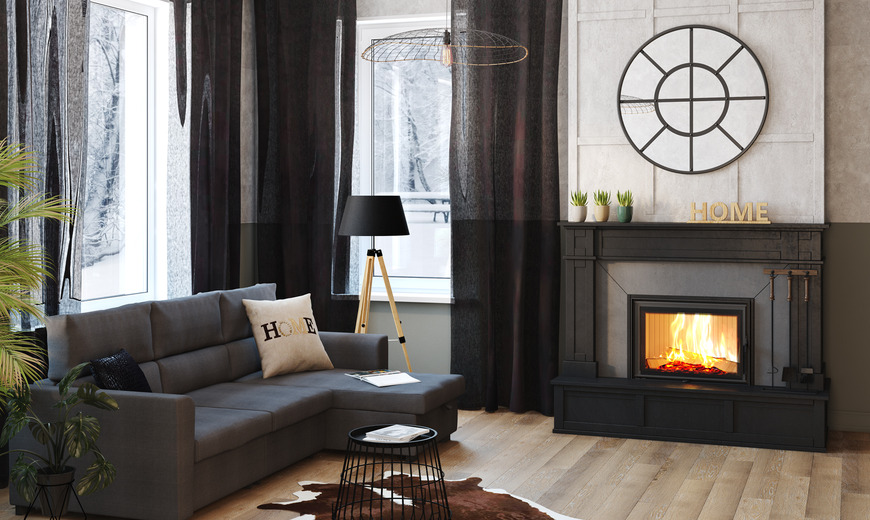

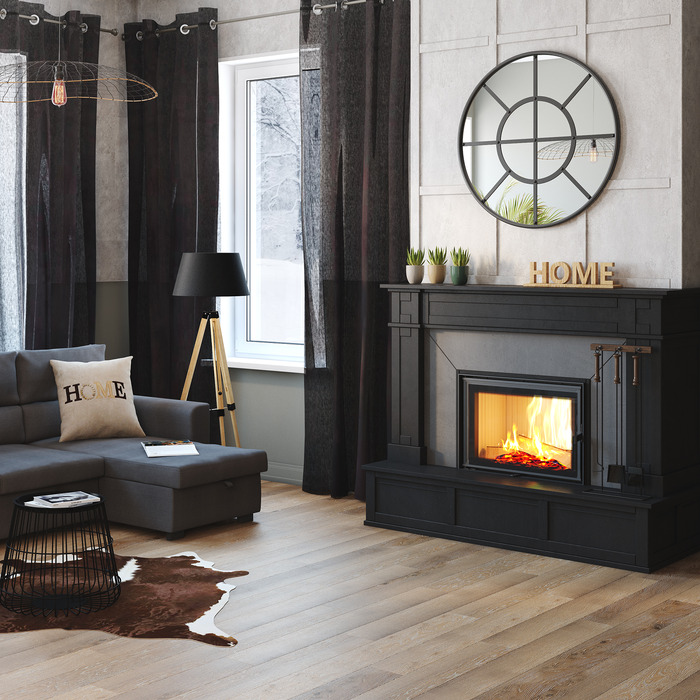

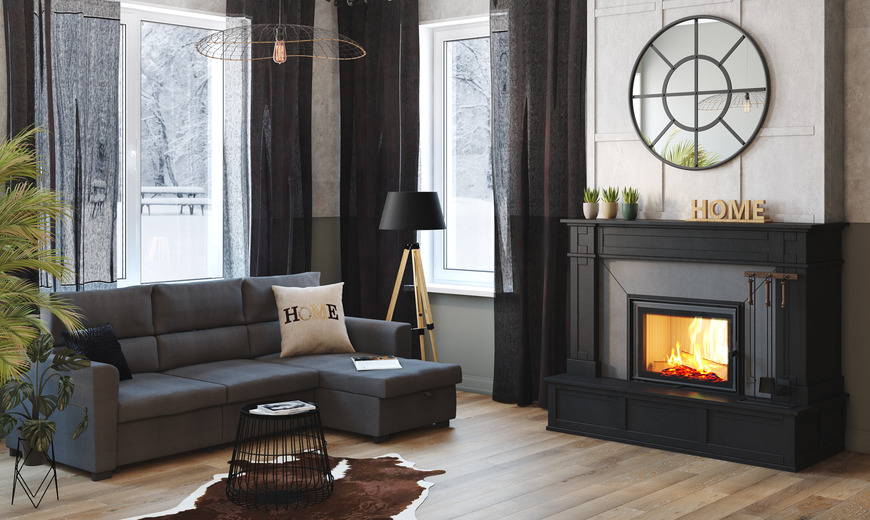

Fireplace in the interior
