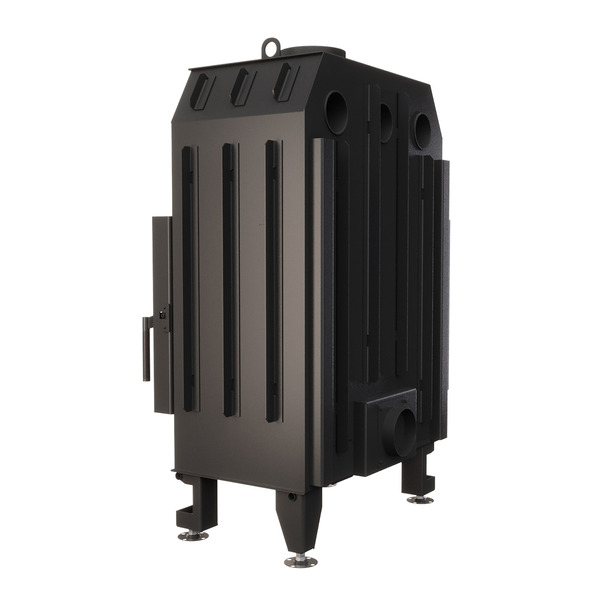

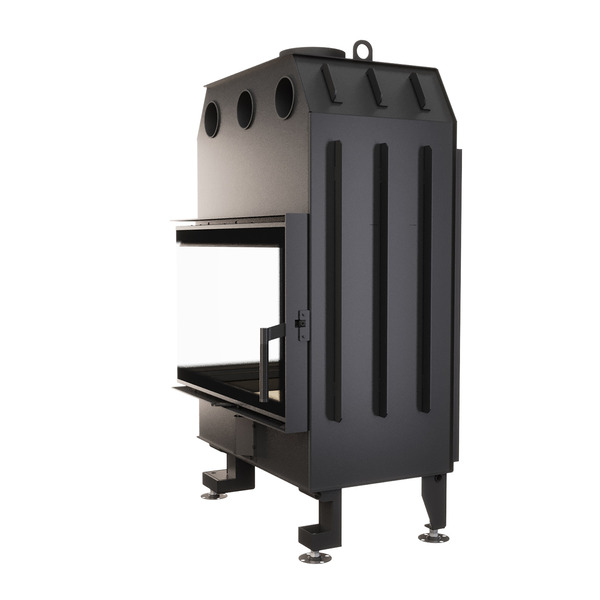

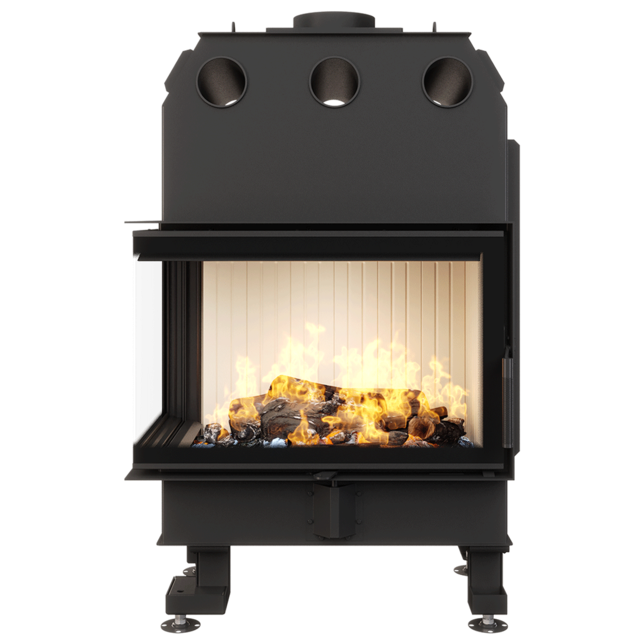

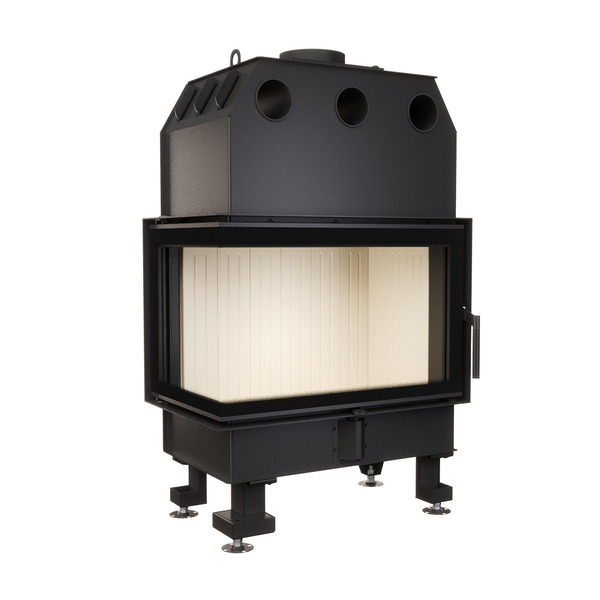

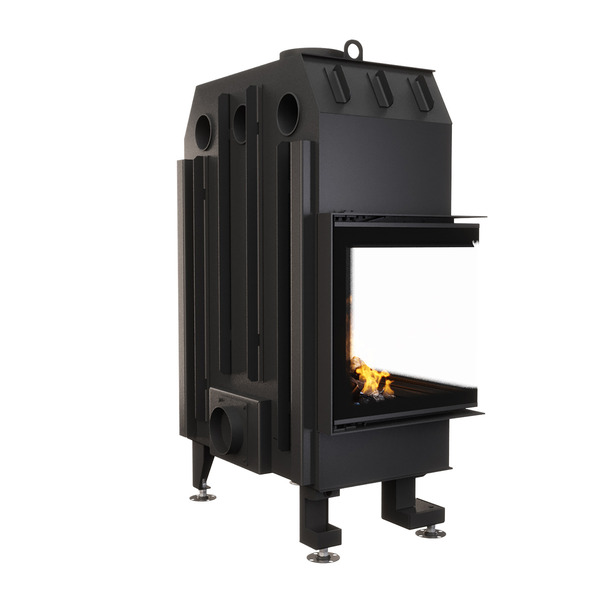

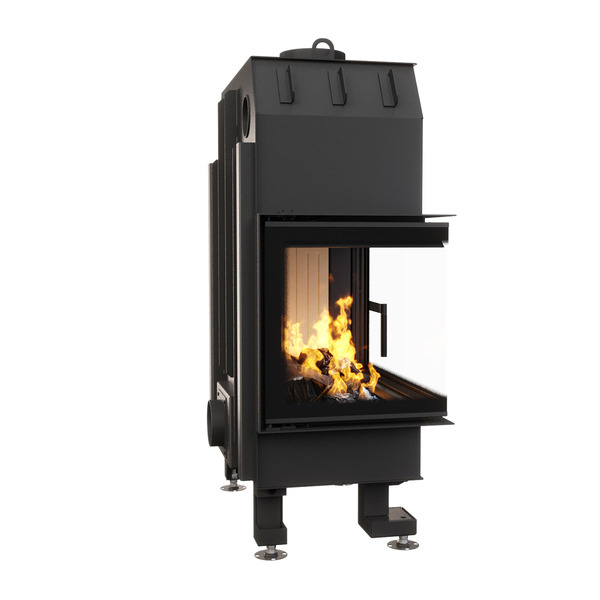

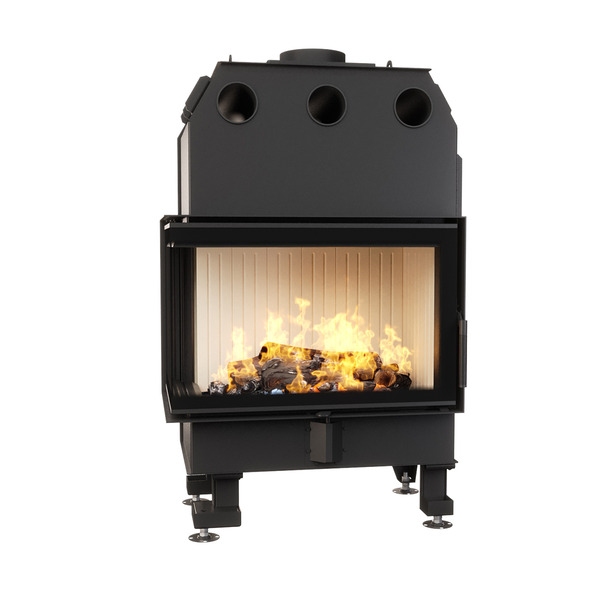

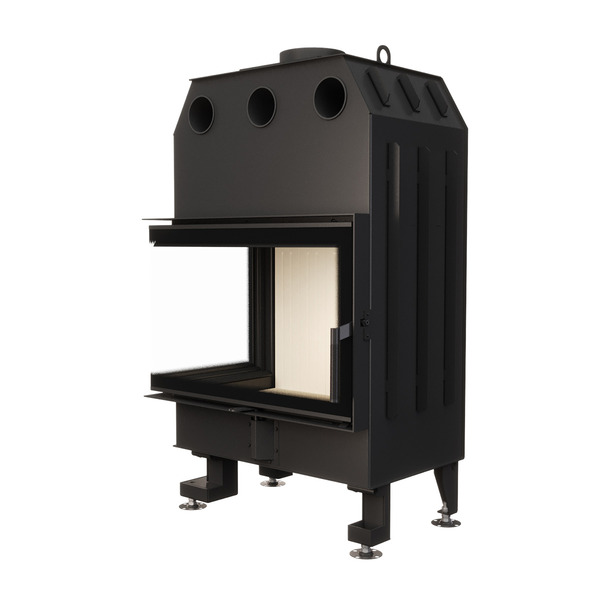

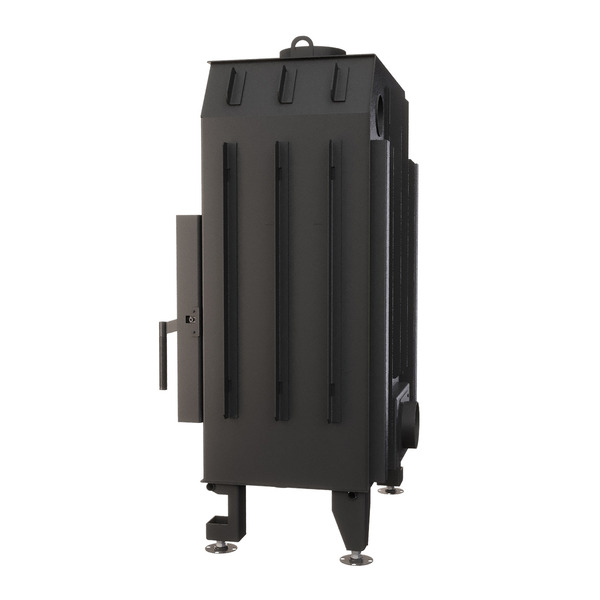

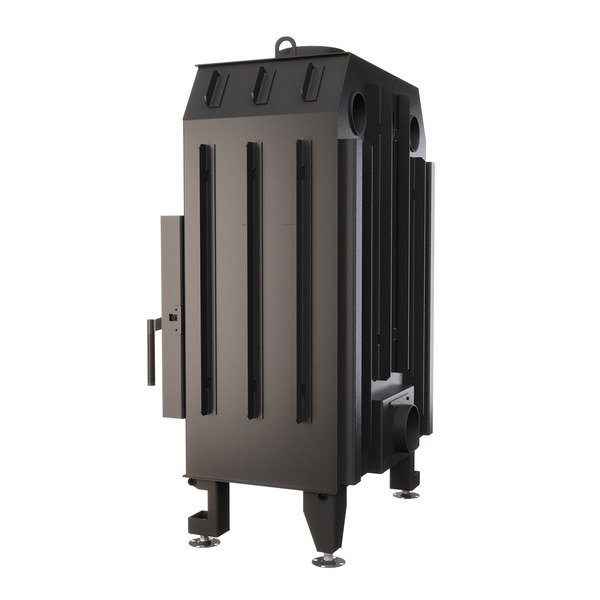

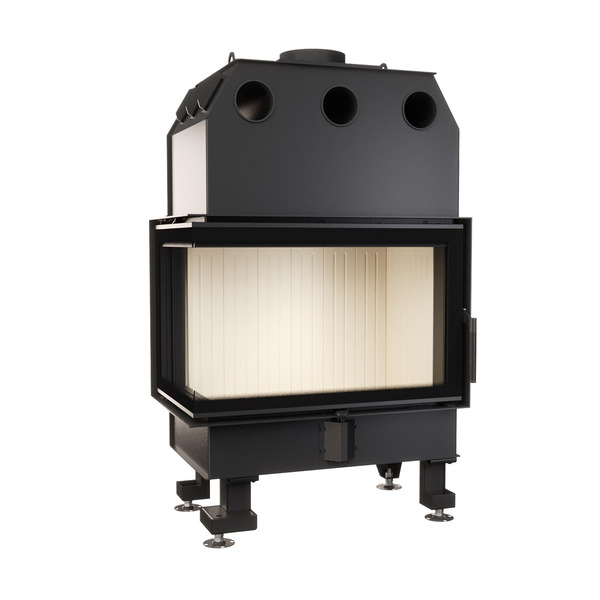

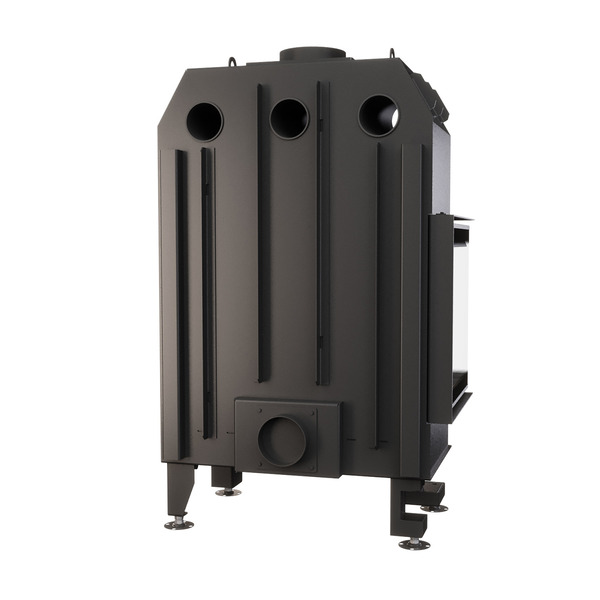

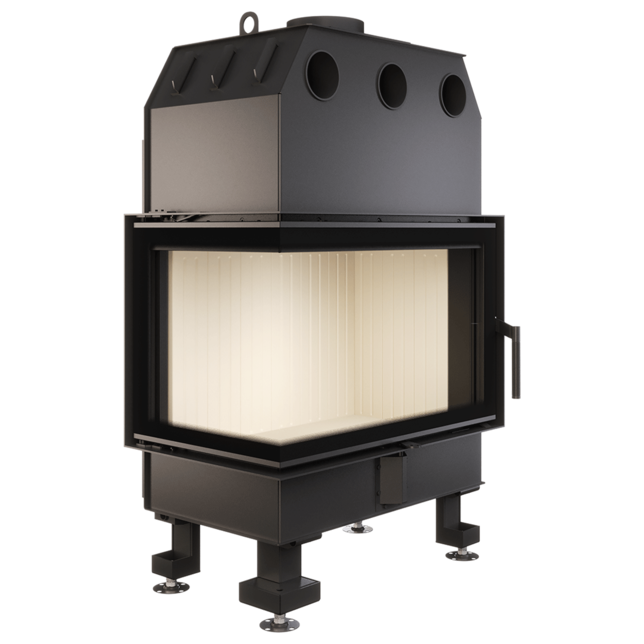

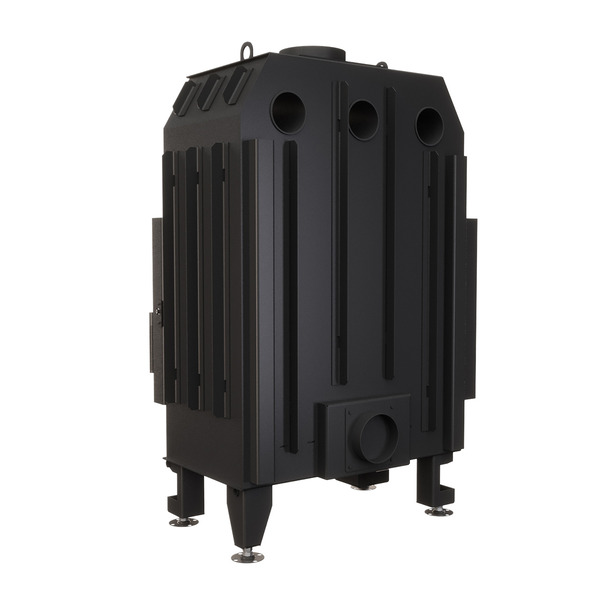

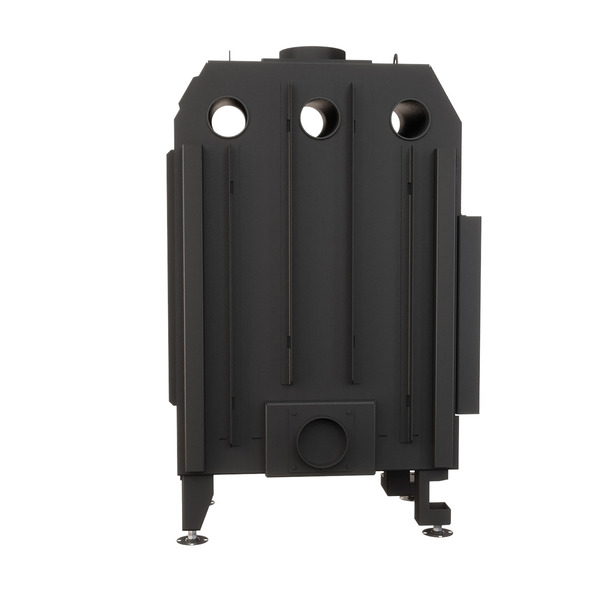

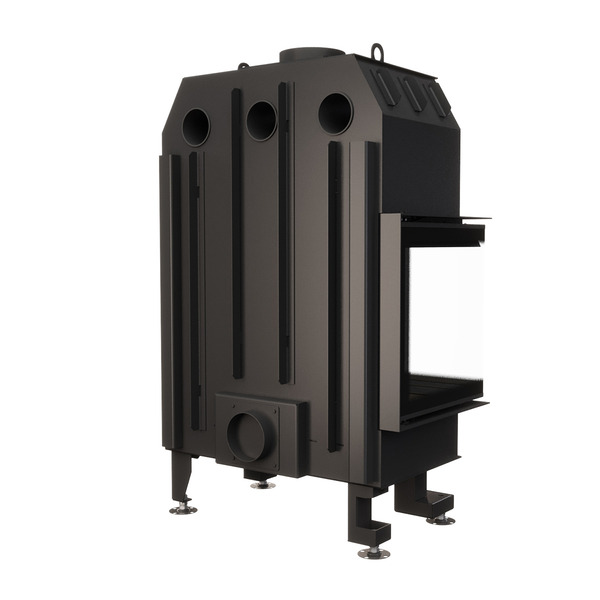

Product code: SE/75/50/47/L

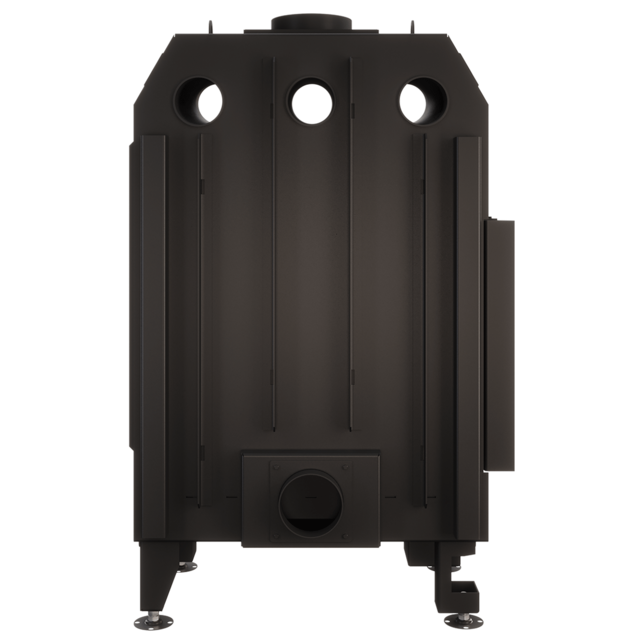

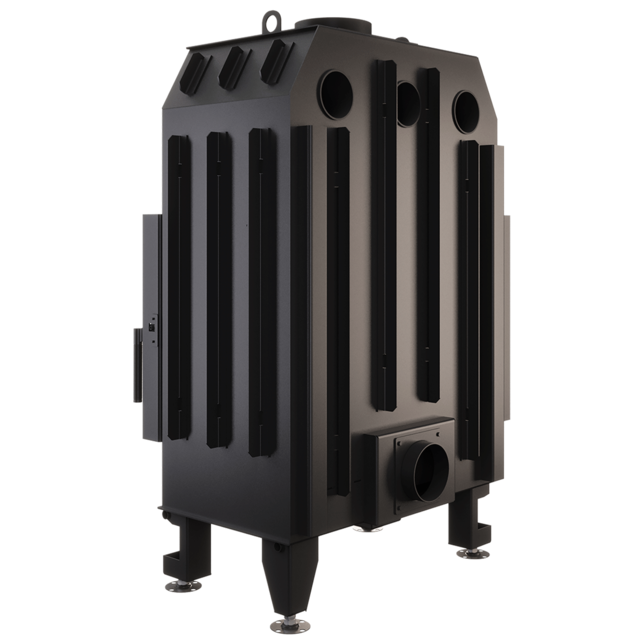

Fireplace insert SAVEN Energy 75x50x47L (15,1kW) ECO

Product code: SE/75/50/47/L

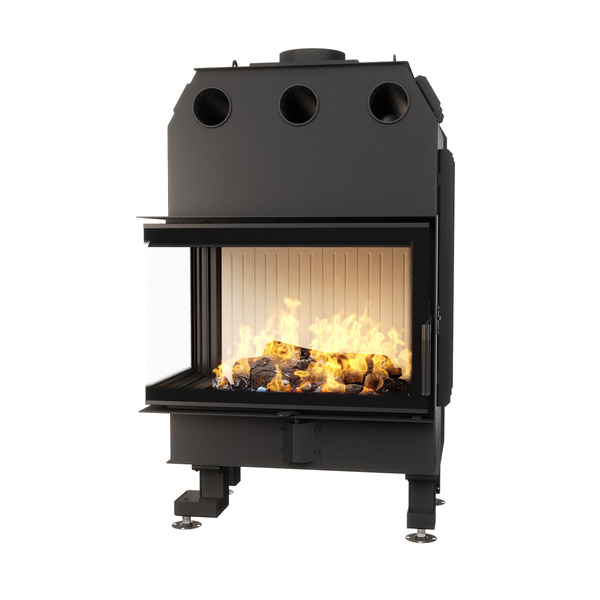

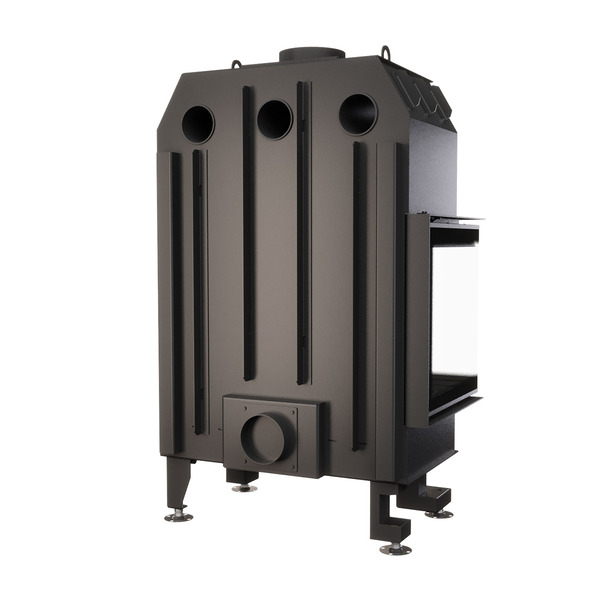

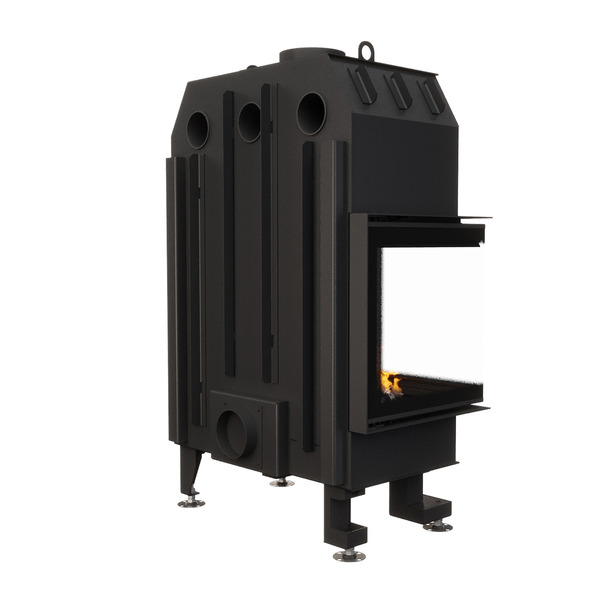

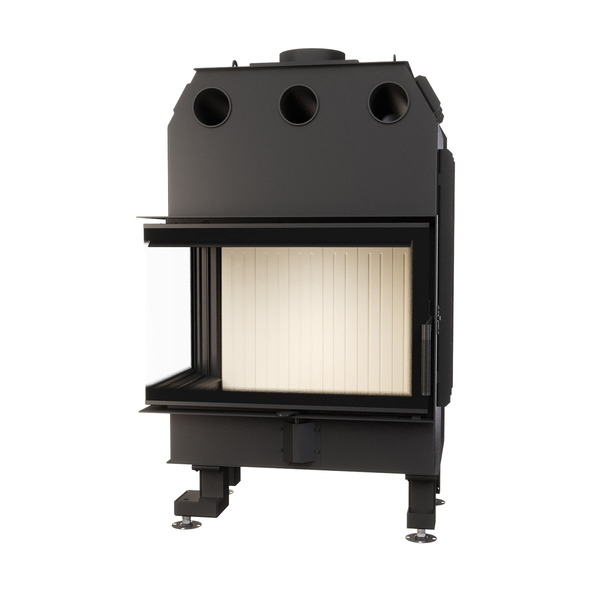

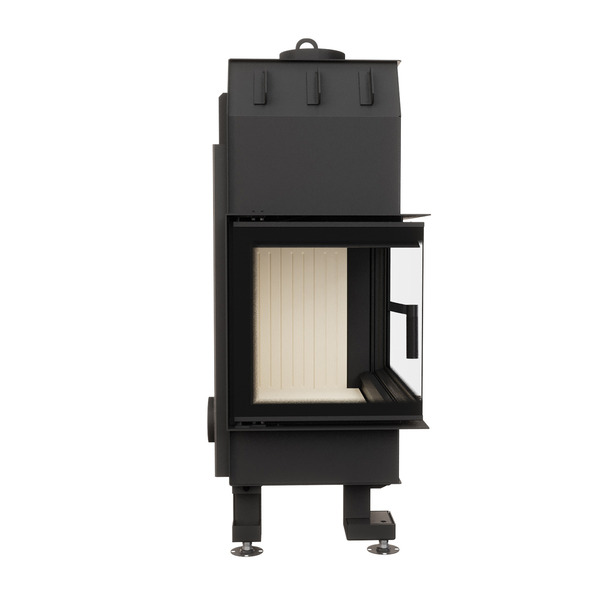

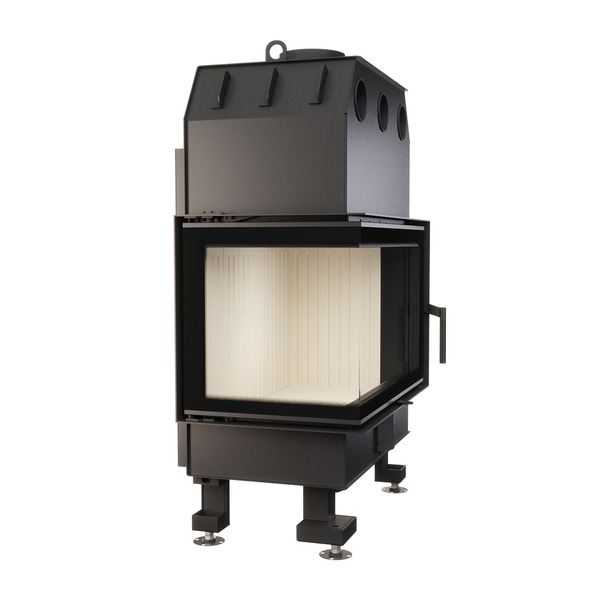

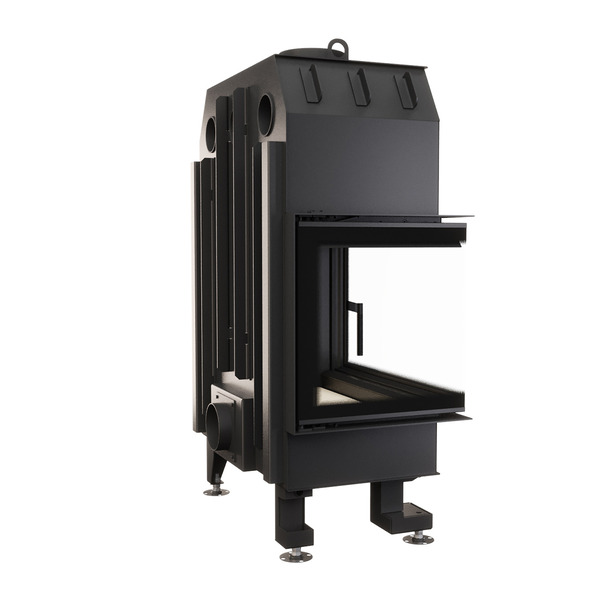

Fireplace insert SAVEN Energy 75x50x47L (15,1kW) ECO
In stock
A
Characteristics Fireplace insert SAVEN Energy 75x50x47L (15,1kW) ECO
General information
  • Nominal rated power (kW) 15.1
  • Efficiency (%) 80
  • Glass form narożne
  • Material Steel
  • Fuel type wood
  • Heating capacity (m²/m³) 151 / 377

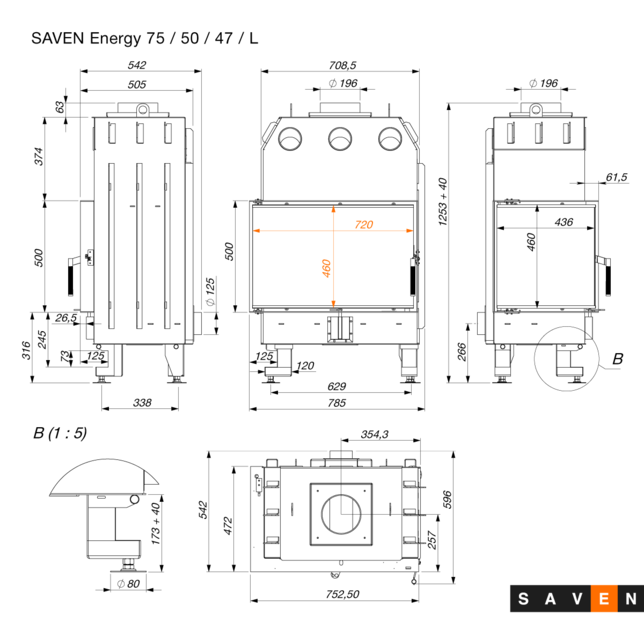

Physical parameters
  • Weight (kg) 190
  • Width (mm) 785
  • Height (mm) 1253
  • Depth (mm) 542
  • Flue pipe diameter (mm) 200
  • Main glass dimension (mm) - L / H / W 720x460x4
  • Max length of wood (mm) 600
  • Recommended ventilation area of the air outlet grid / intake grid (cm²) ≥ 755 / ≥ 1135 см²
  • External air inlet diameter (mm) 125
Accessories
  • Clean glass system yes
  • Flue exit options top
  • Double combustion yes
  • Door opening mechanism left side
  • Chamotte colour white
Energetic efficiency
  • Energy efficiency class A
Certificates
  • Compliance with ECOPROJECT standards yes
Additional information
  • External air feed lower / rear
  • Manufacturer SAVEN
  • Country Ukraine
  • Compatible with recuperation yes
  • Warranty 5 years
  • Barcode (GTIN) 4820295260103
  • Equipment type Fireplace inserts
Physical parameters
  • Weight (kg) 190
  • Width (mm) 785
  • Height (mm) 1253
  • Depth (mm) 542
  • Flue pipe diameter (mm) 200
  • Main glass dimension (mm) - L / H / W 720x460x4
  • Max length of wood (mm) 600
  • Recommended ventilation area of the air outlet grid / intake grid (cm²) ≥ 755 / ≥ 1135 см²
  • External air inlet diameter (mm) 125
Energetic efficiency
  • Energy efficiency class A
Additional information
  • External air feed lower / rear
  • Manufacturer SAVEN
  • Country Ukraine
  • Compatible with recuperation yes
  • Warranty 5 years
  • Barcode (GTIN) 4820295260103
  • Equipment type Fireplace inserts
General information
  • Nominal rated power (kW) 15.1
  • Efficiency (%) 80
  • Glass form narożne
  • Material Steel
  • Fuel type wood
  • Heating capacity (m²/m³) 151 / 377
Accessories
  • Clean glass system yes
  • Flue exit options top
  • Double combustion yes
  • Door opening mechanism left side
  • Chamotte colour white
Certificates
  • Compliance with ECOPROJECT standards yes
Description Fireplace insert SAVEN Energy 75x50x47L (15,1kW) ECO

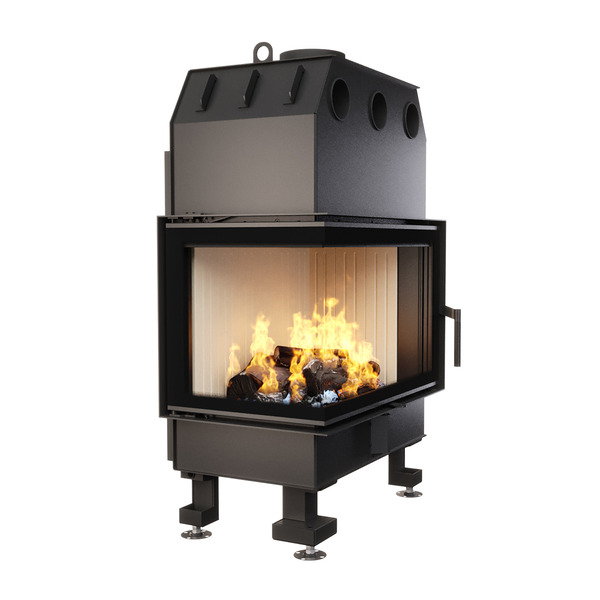

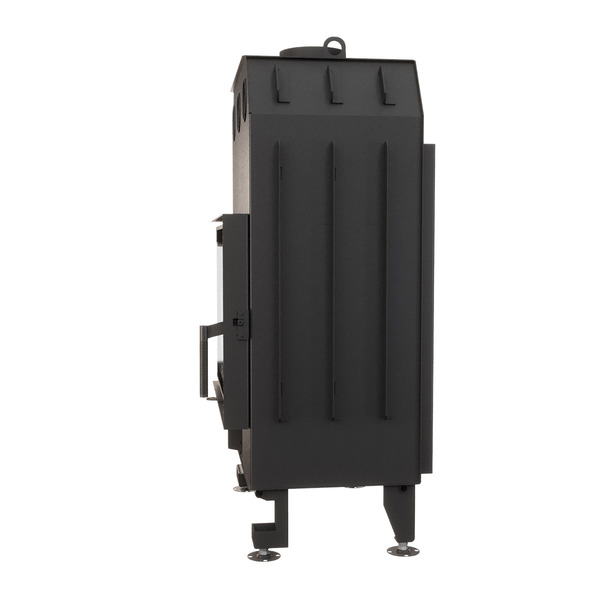

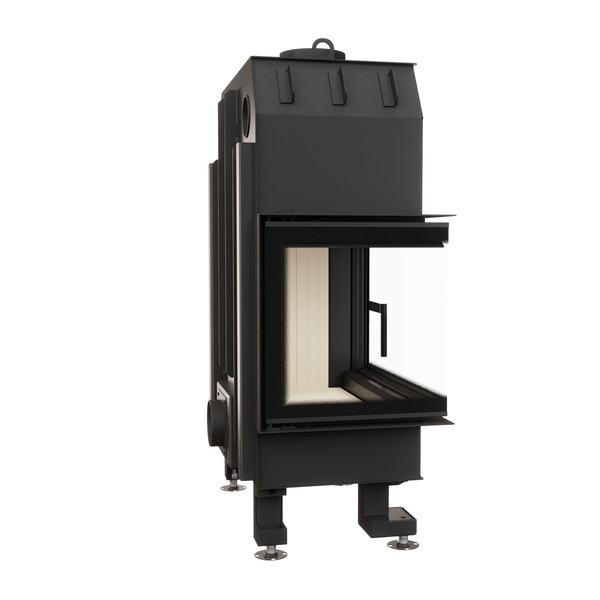

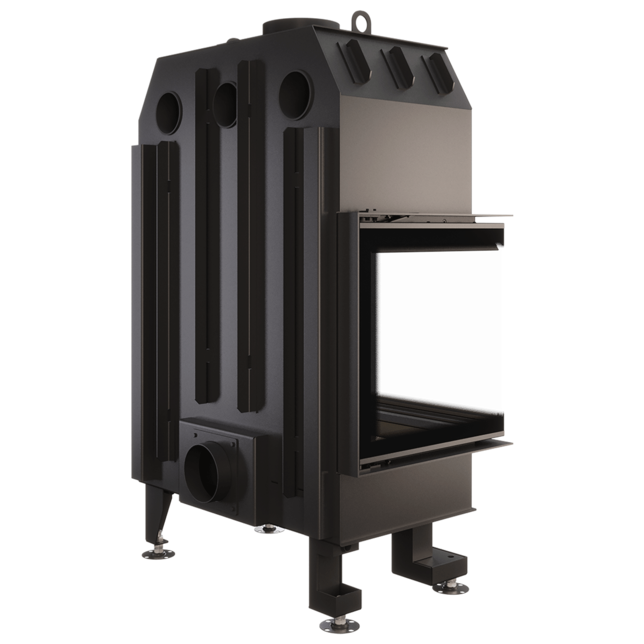

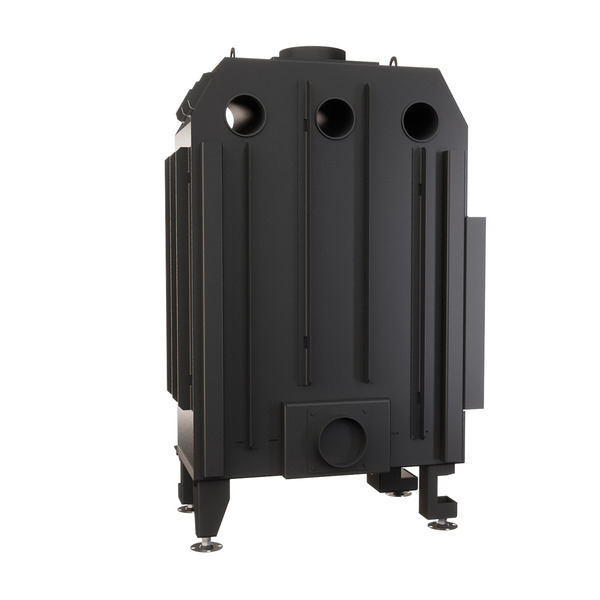

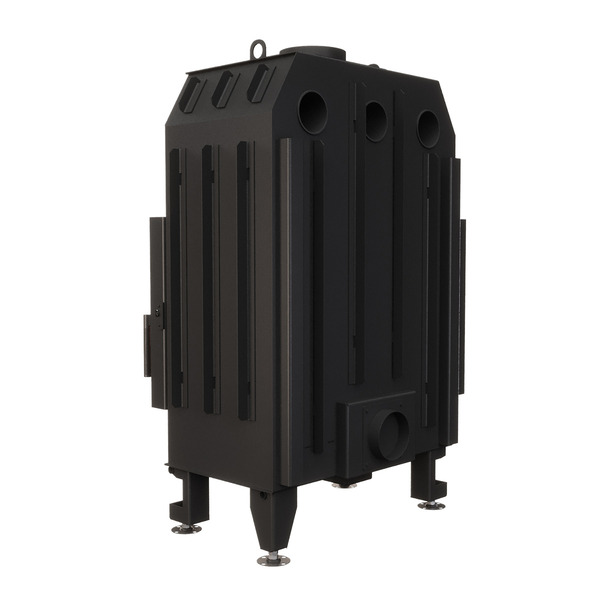

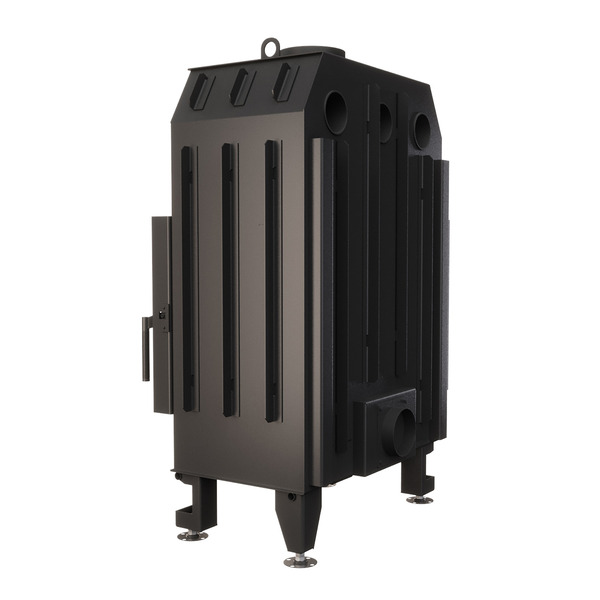

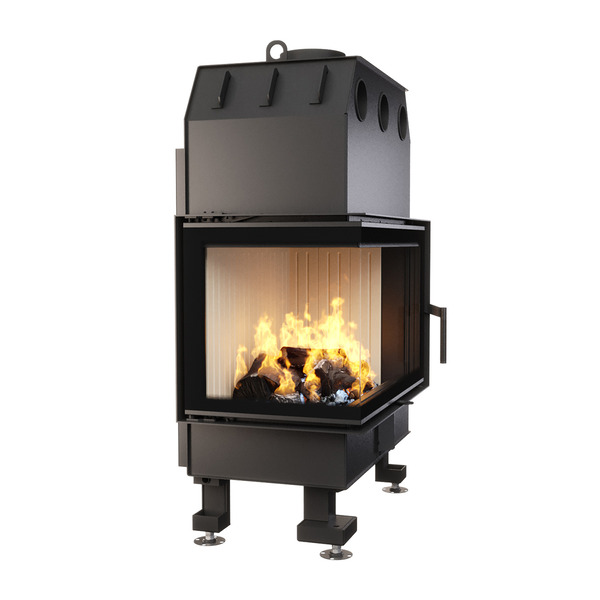

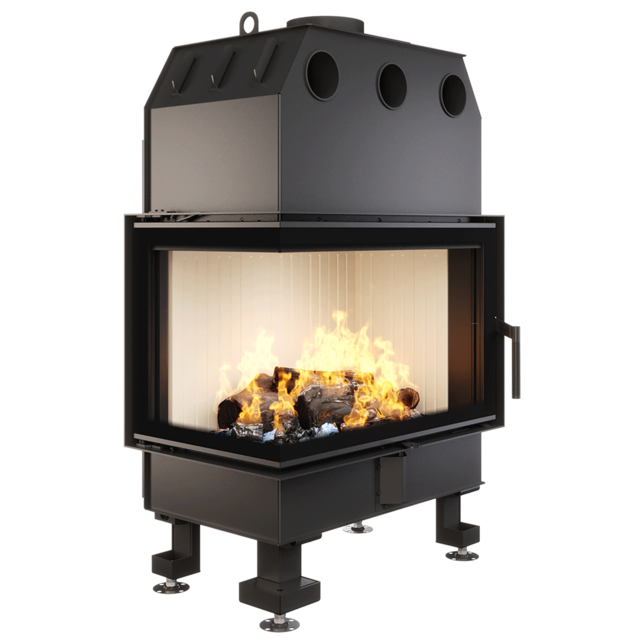

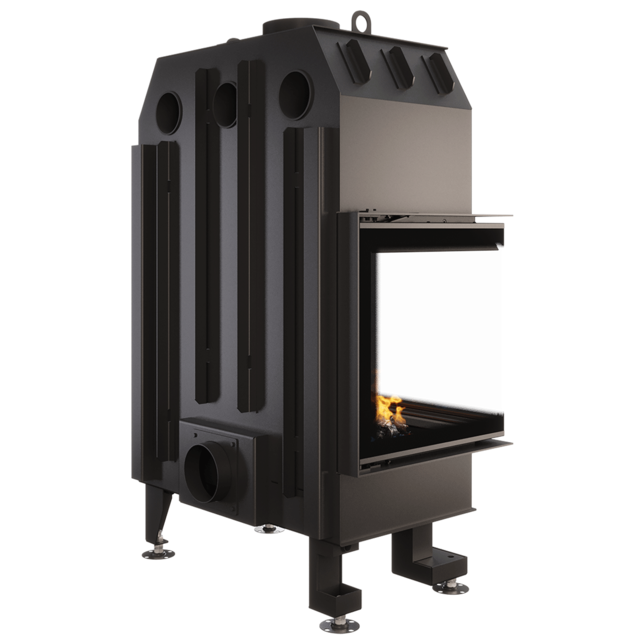

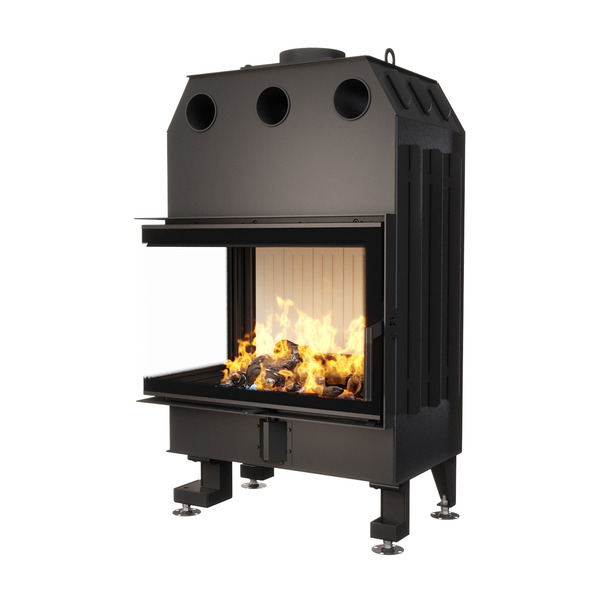

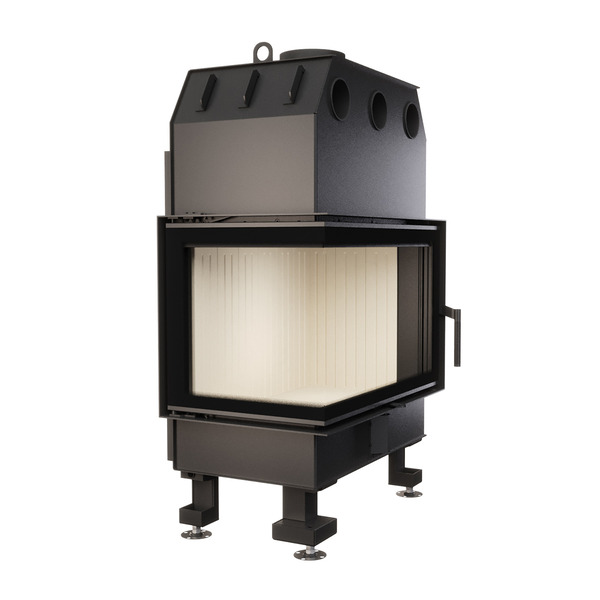

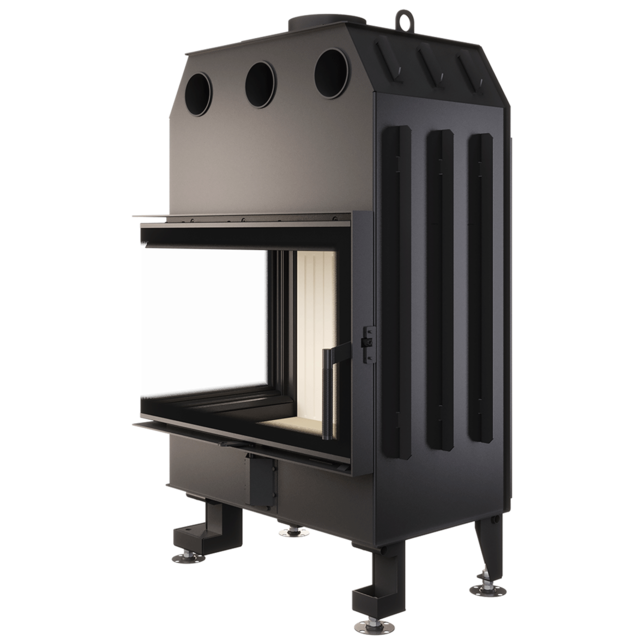

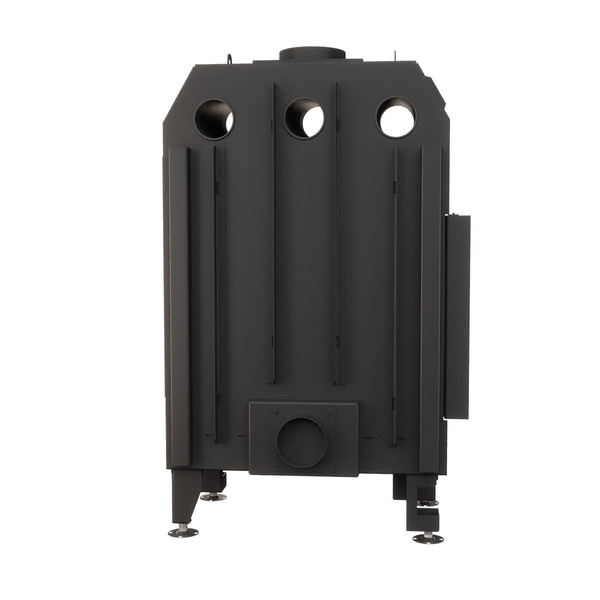

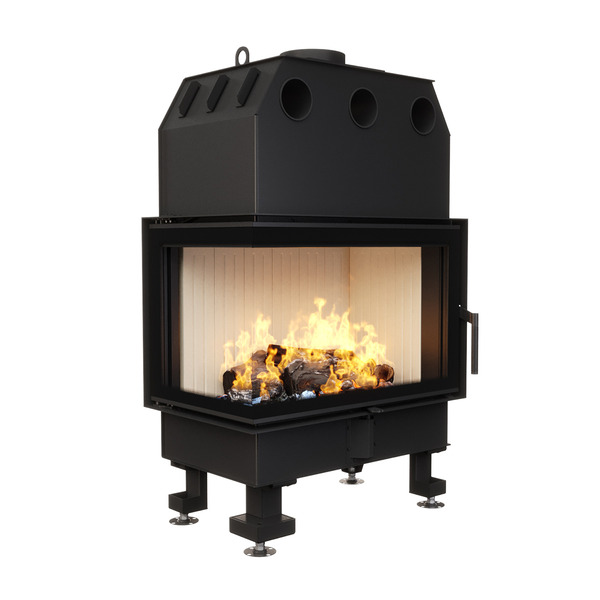

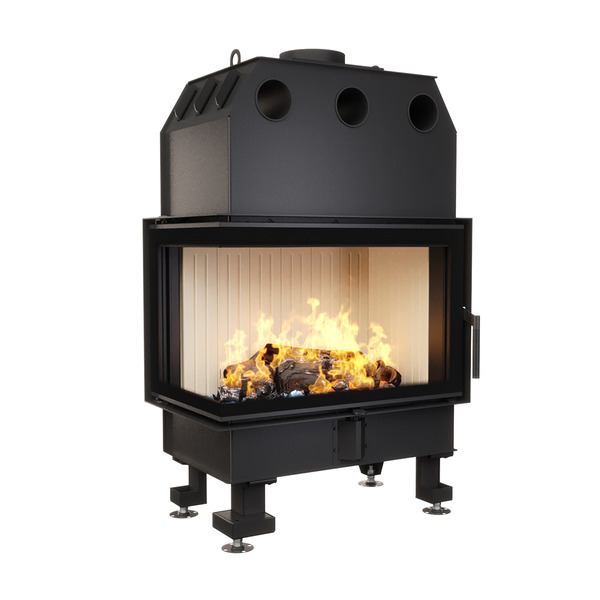

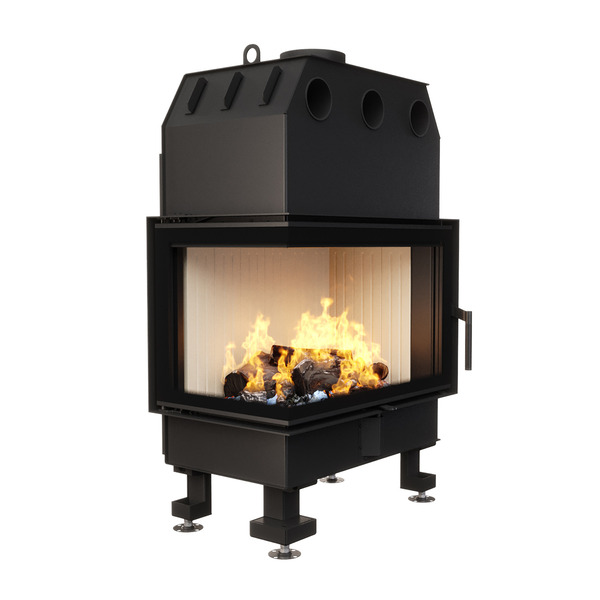

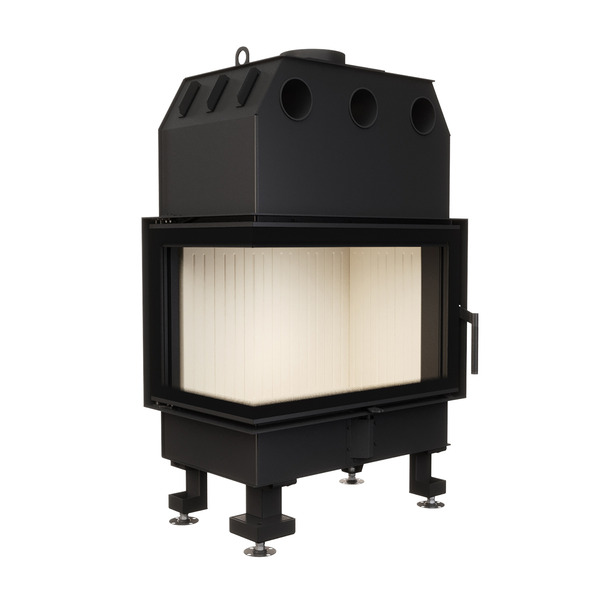

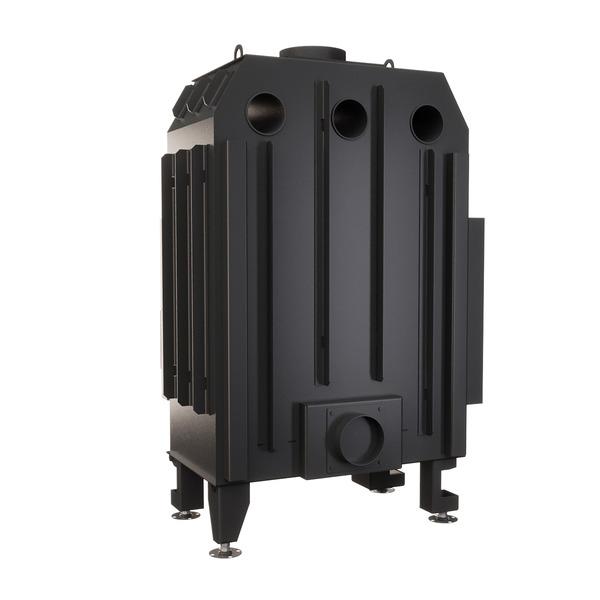

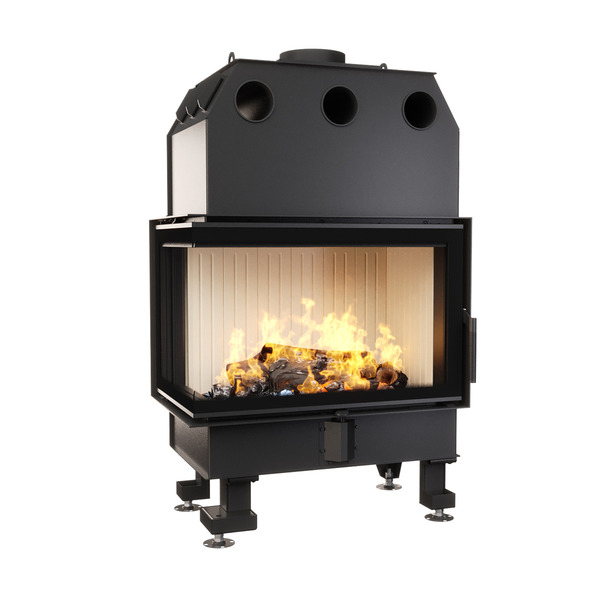

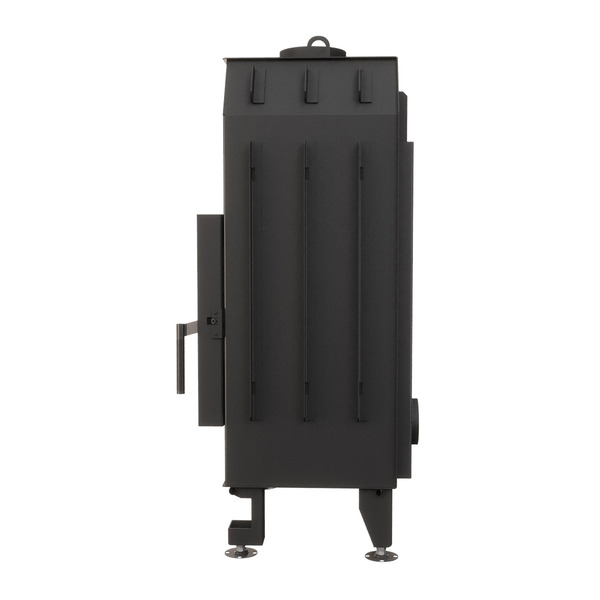

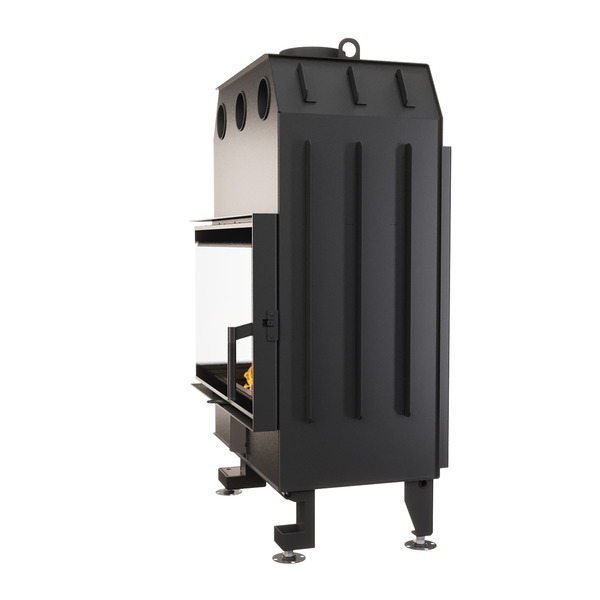

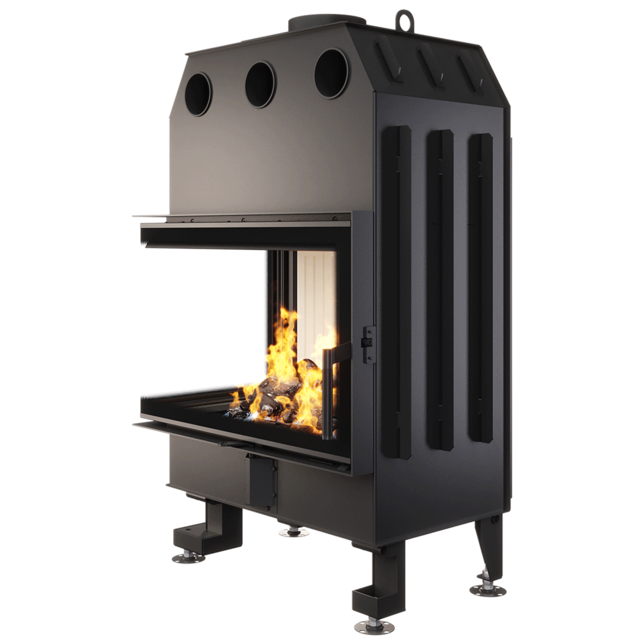

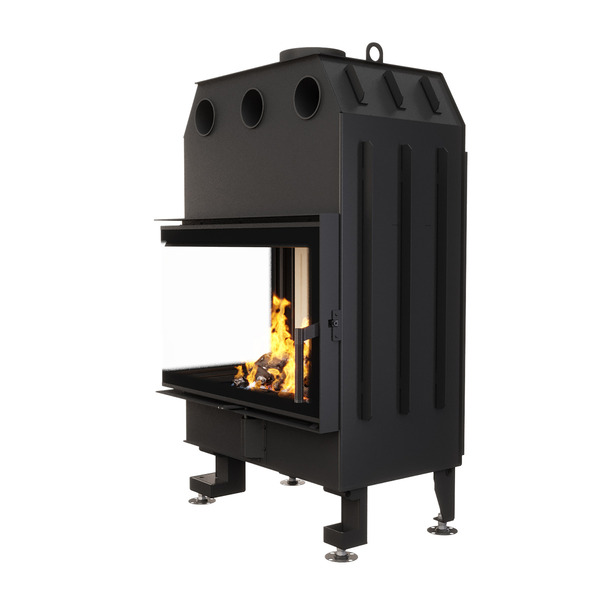

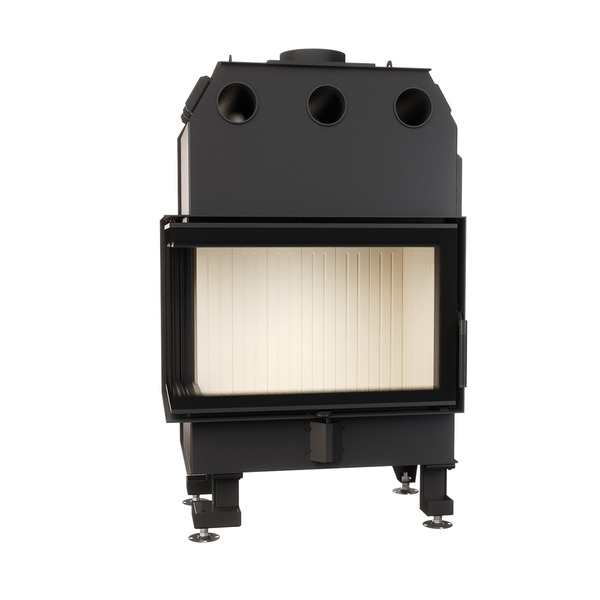

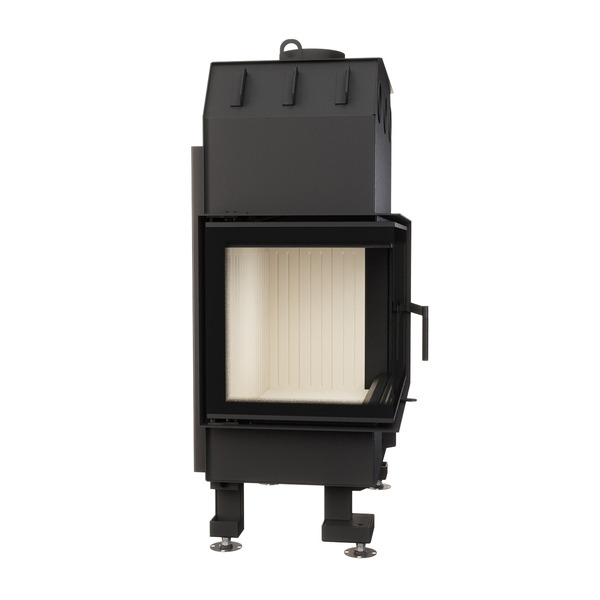

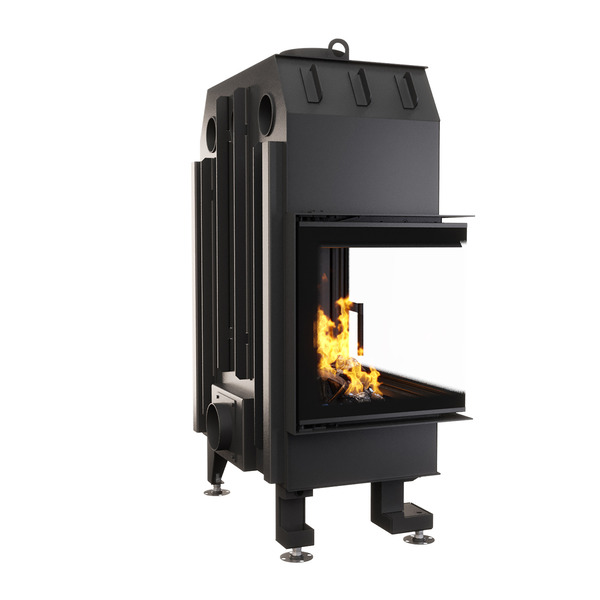

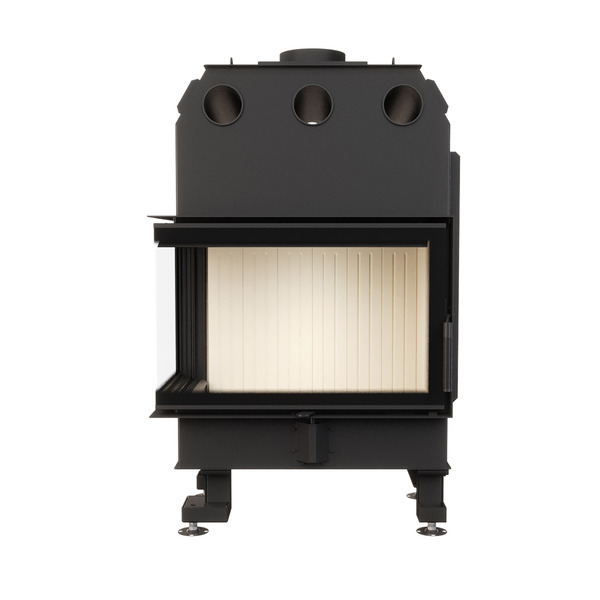

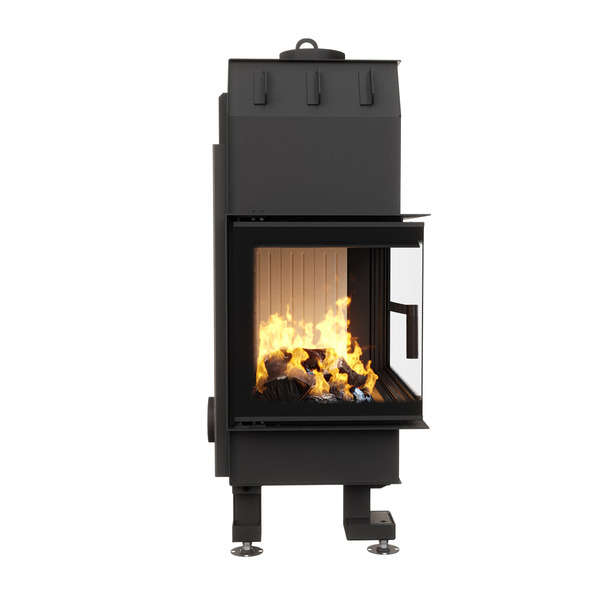

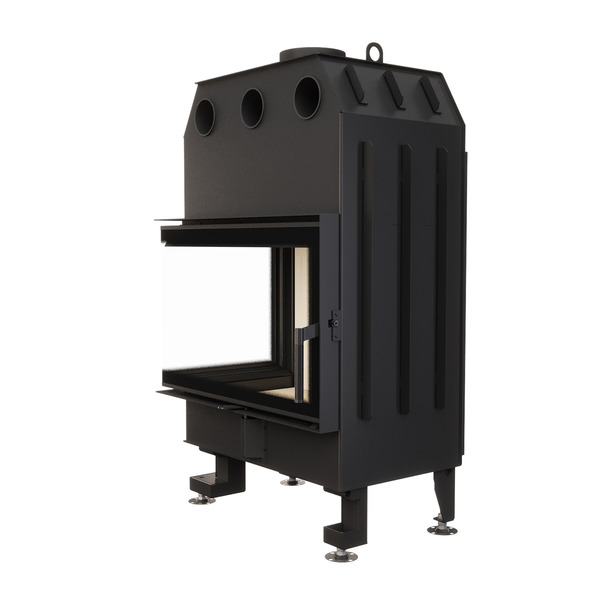

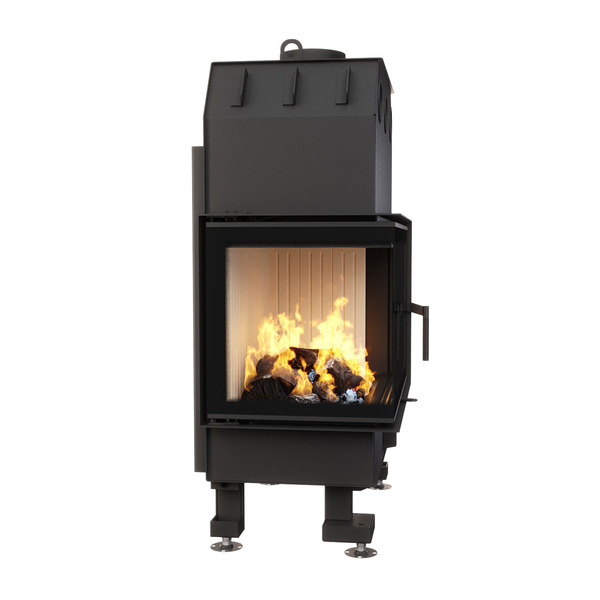

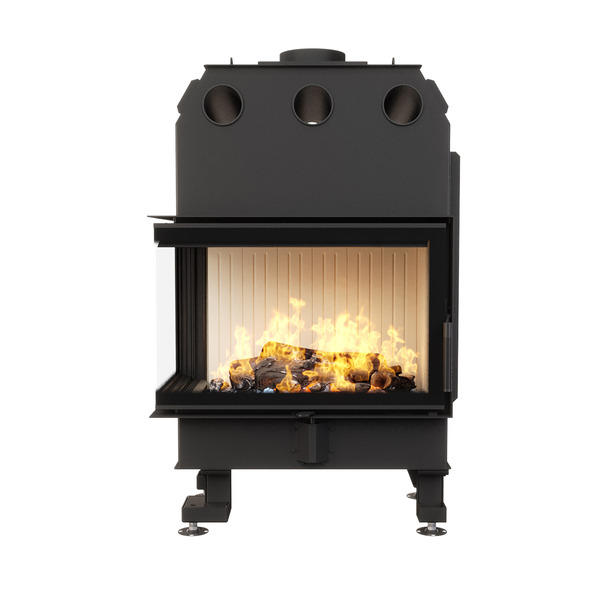

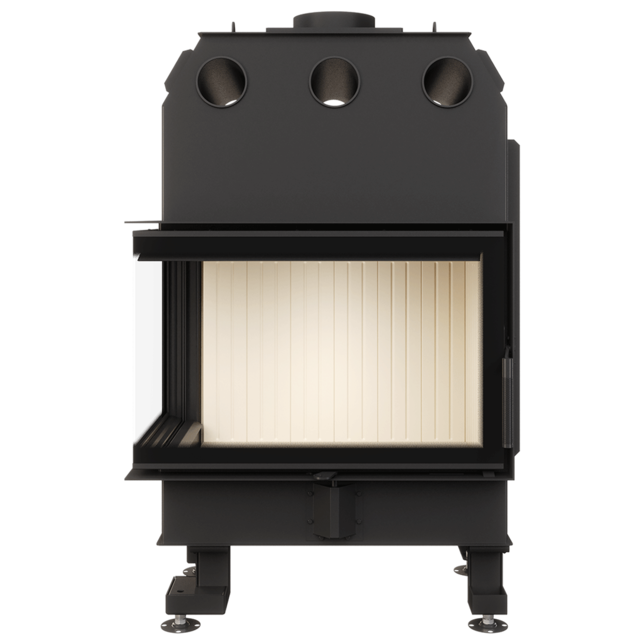

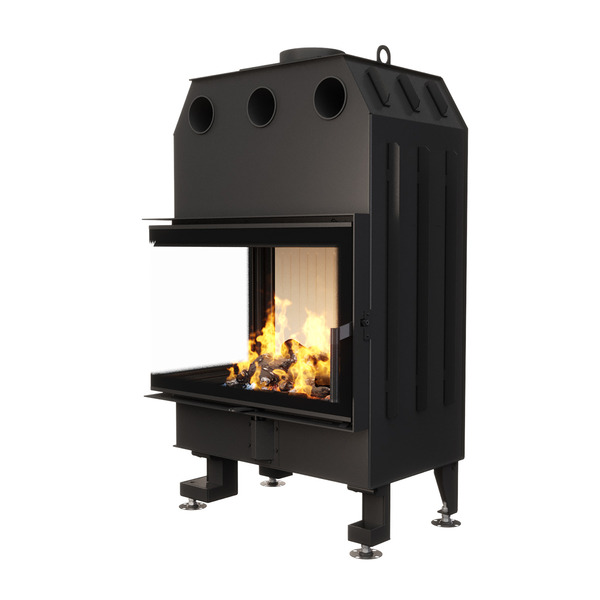

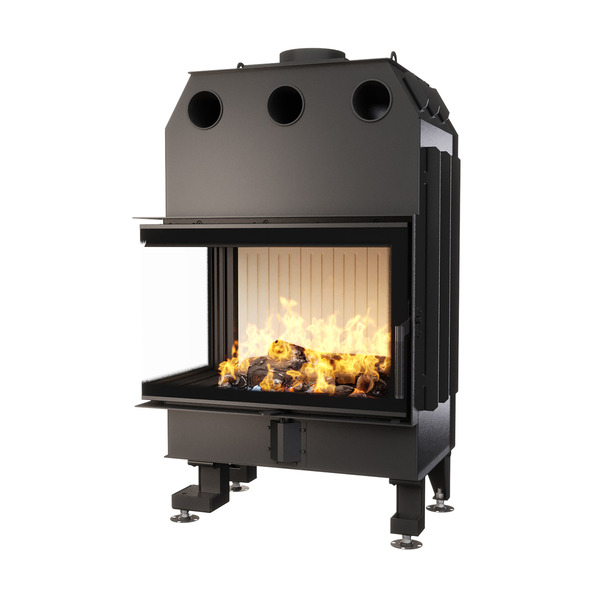

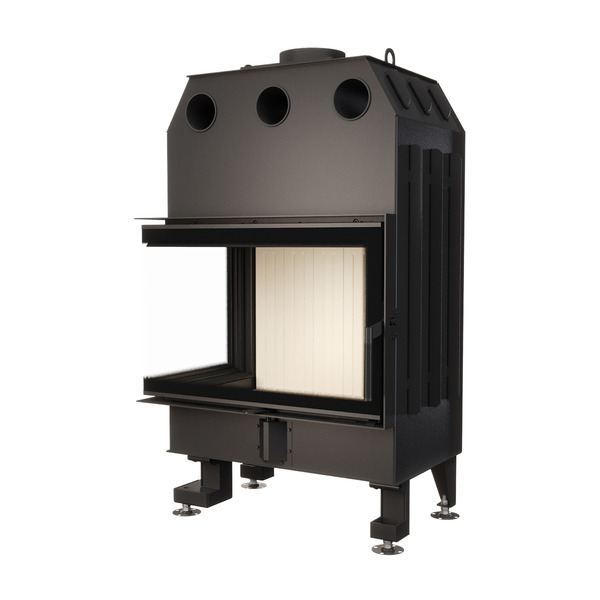

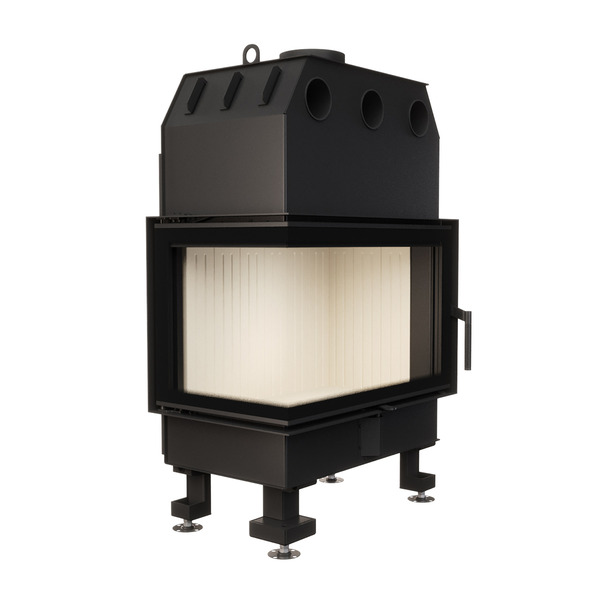

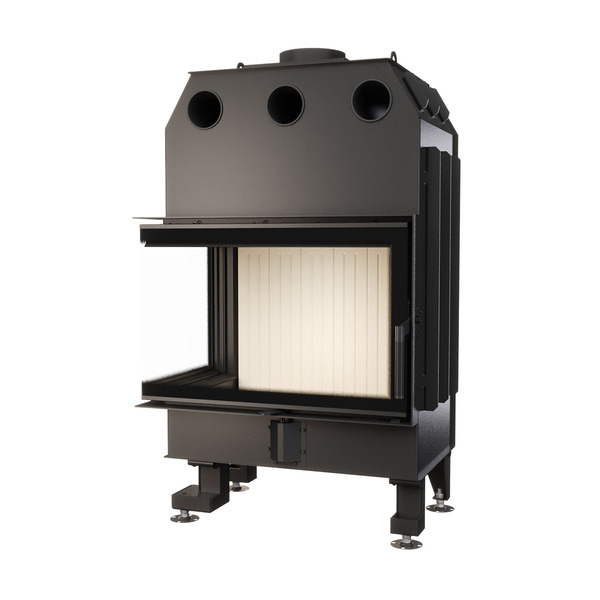

SAVEN Energy 75x50x47L (15,1kW)​ ECO Steel Corner Fireplace Insert

SAVEN's steel corner fireplace inserts are made from certified materials and unique technologies. The main advantages of the SAVEN Energy 75x50x47L (15,1kW)​ ECO steel corner fireplace insert include:

Modern technologies and energy efficiency

The SAVEN Energy 75x50x47L (15,1kW) ECO steel corner fireplace insert is a versatile insert for a corner fireplace that will fit into any interior and will safely serve for decades.

  • High efficiency of the steel fireplace insert due to the implementation of a design for exhaust gas removal.
  • Compatibility of the steel fireplace insert with a heat recovery system.
  • Bottom and rear air connections.
  • Double deflector in the steel fireplace insert for increased efficiency and better heat transfer.
  • Sturdy and rigid construction that does not deform or succumb to high temperatures.
  • Sealing of the steel fireplace insert with fireplace cords for additional sealing.
  • A reinforced door profile of the steel fireplace insert with glass that is resistant to bending and twisting under the influence of high temperatures.
  • Unique design of the corner legs of the steel fireplace insert with glass that ensures easy and quick installation.
  • Smooth and easy flame control with a single regulator.

The SAVEN Energy 75x50x47L (15,1kW) ECO steel corner fireplace insert is made exclusively from proven and high-quality materials, including:

  1. Sheet hot-rolled low-alloy boiler carbon steel with a thickness of 3 to 5 mm.
  2. Lining with thick protective refractory plates with an original design from SAVEN.
  3. Ecologically safe paint that does not emit smoke when ignited and is resistant to high-temperature fluctuations.
  4. Heat-resistant glass from the German manufacturer Schott Robax (4 mm), which can withstand temperatures up to 760 °C.

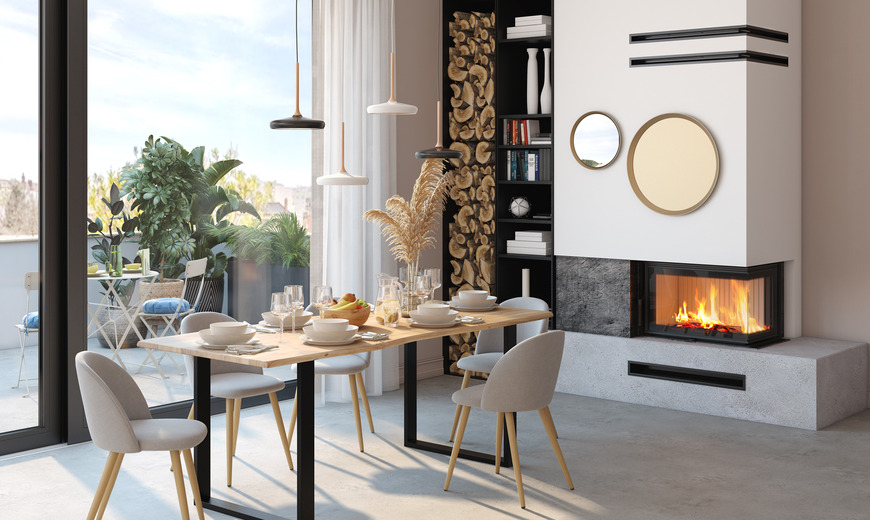

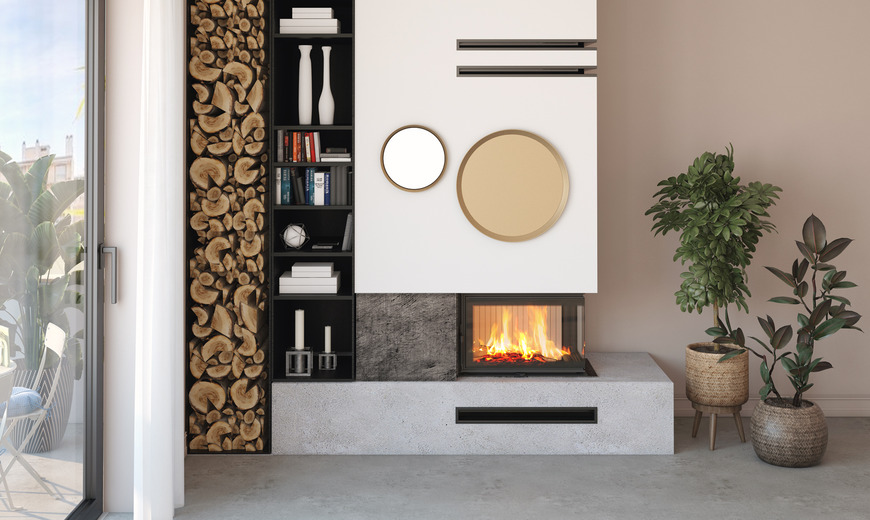

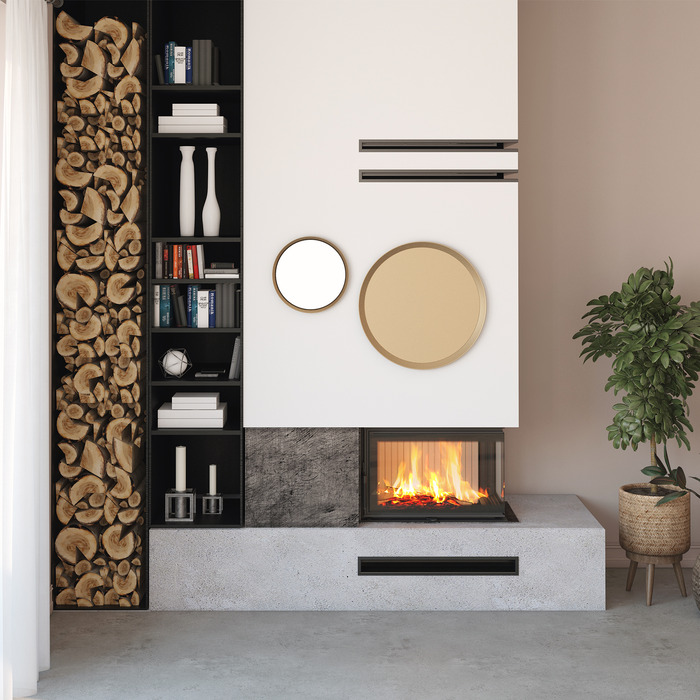

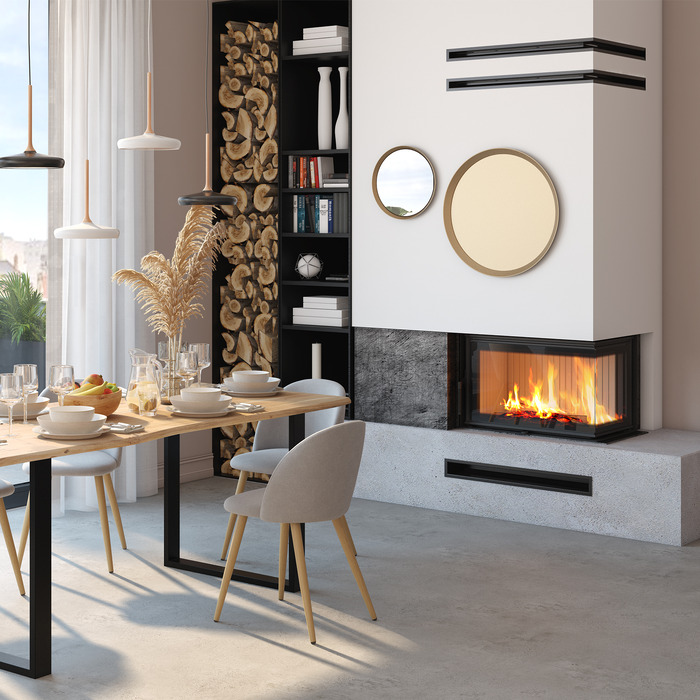

Fireplace in the interior
