Product code: SE/90/50

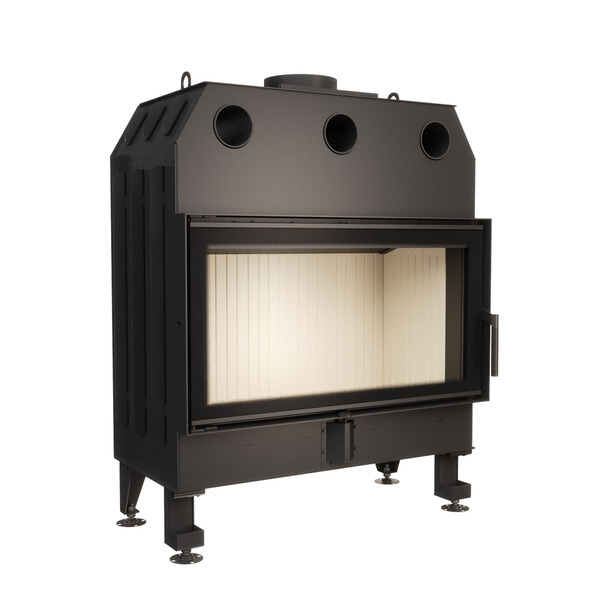

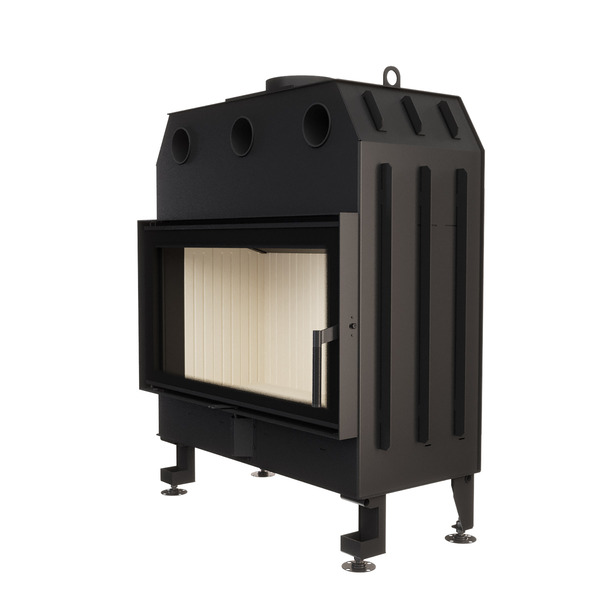

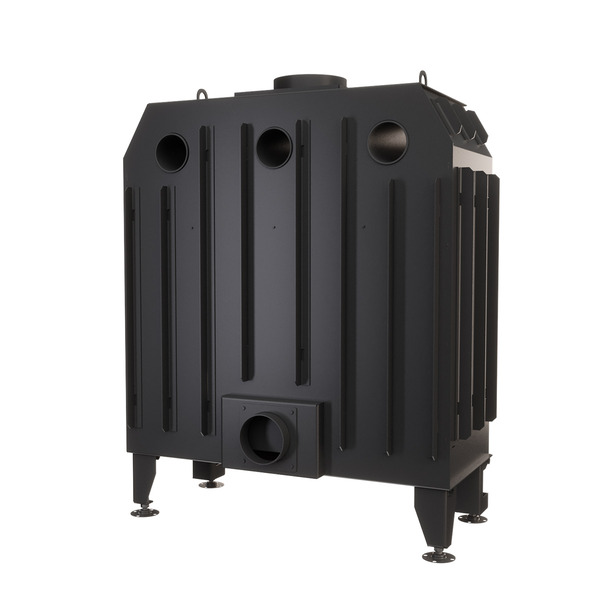

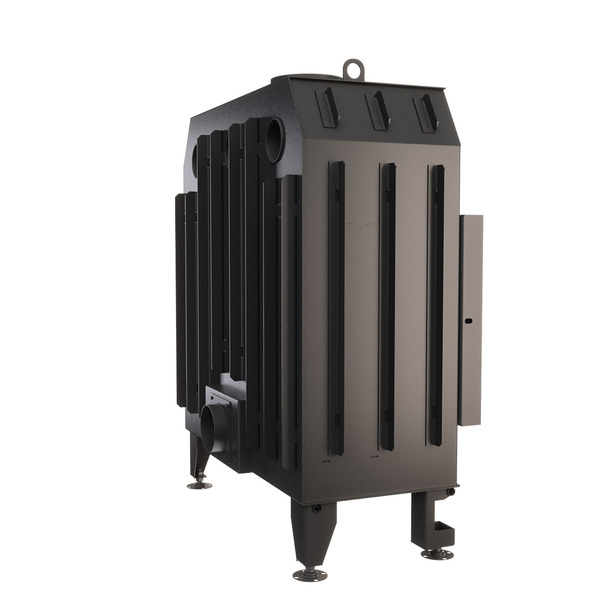

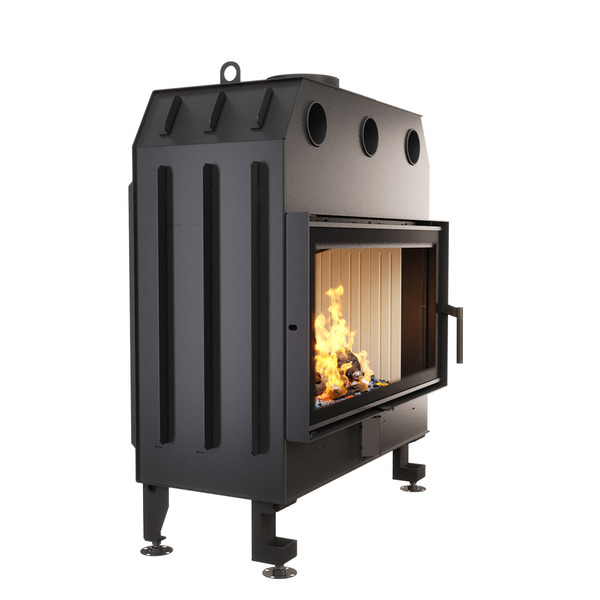

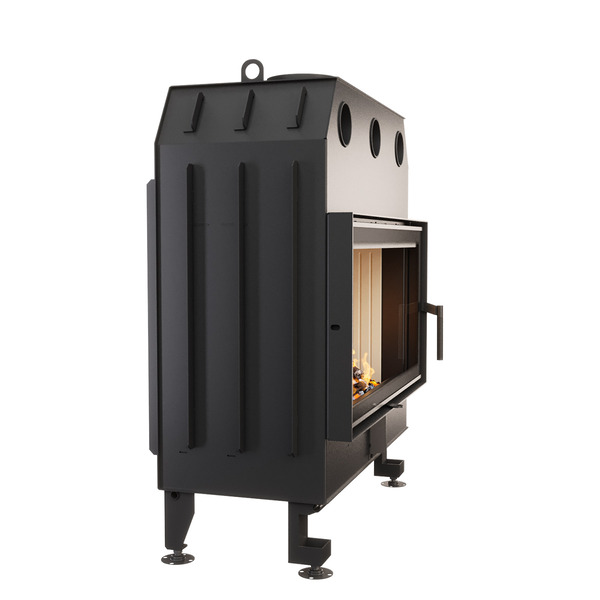

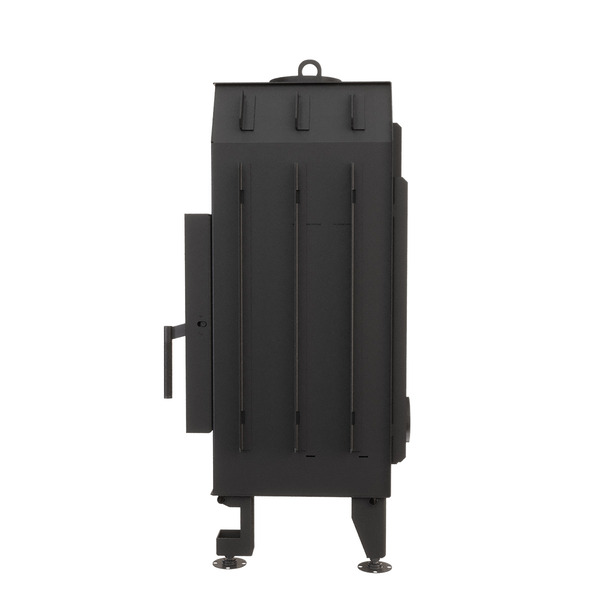

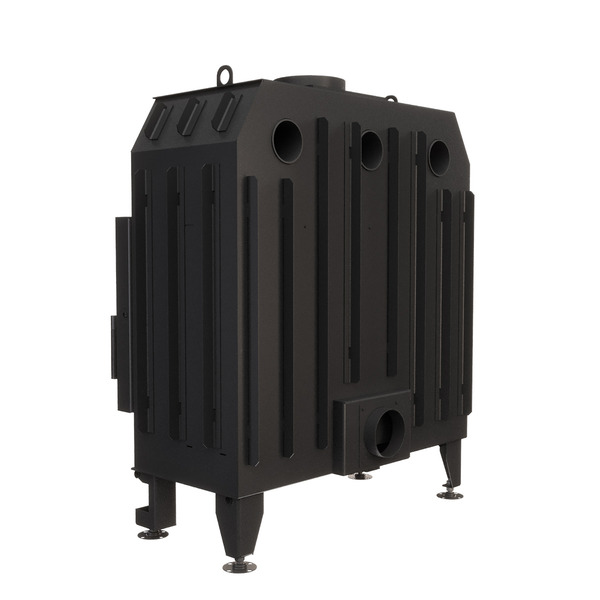

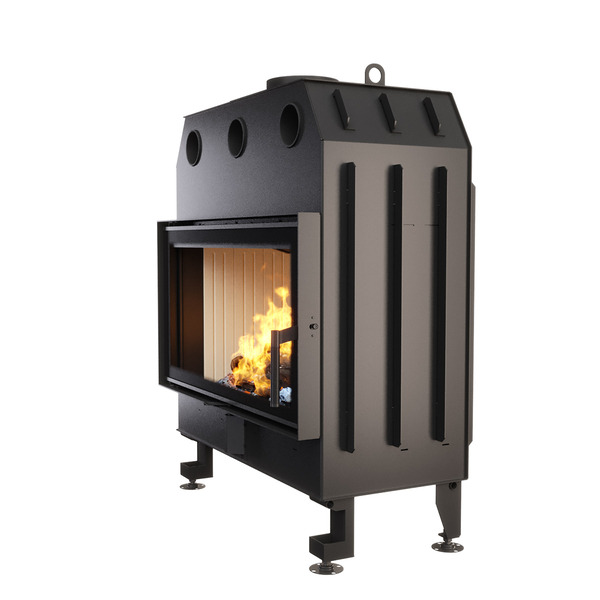

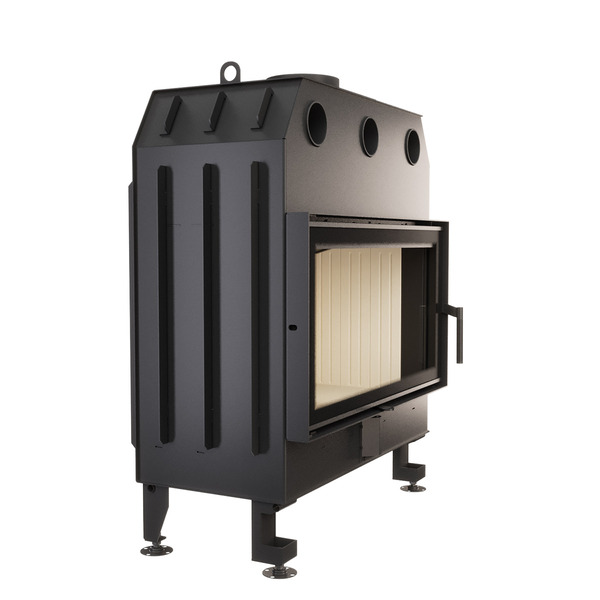

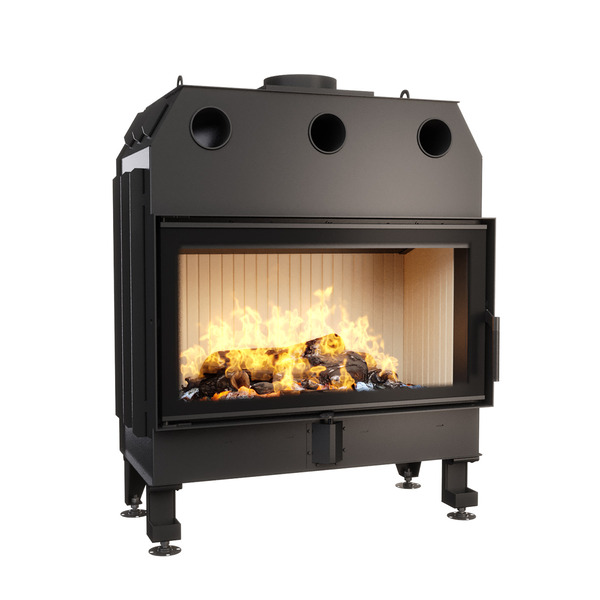

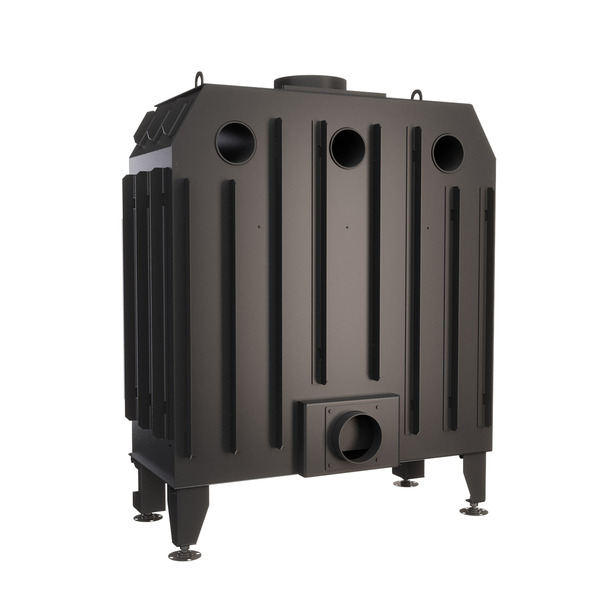

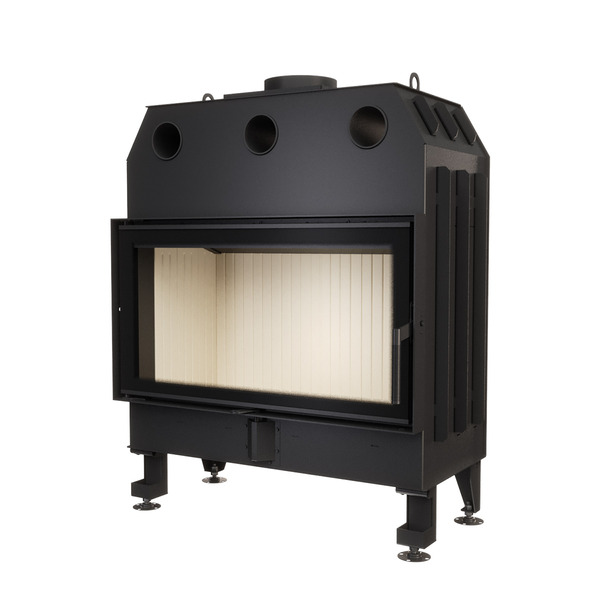

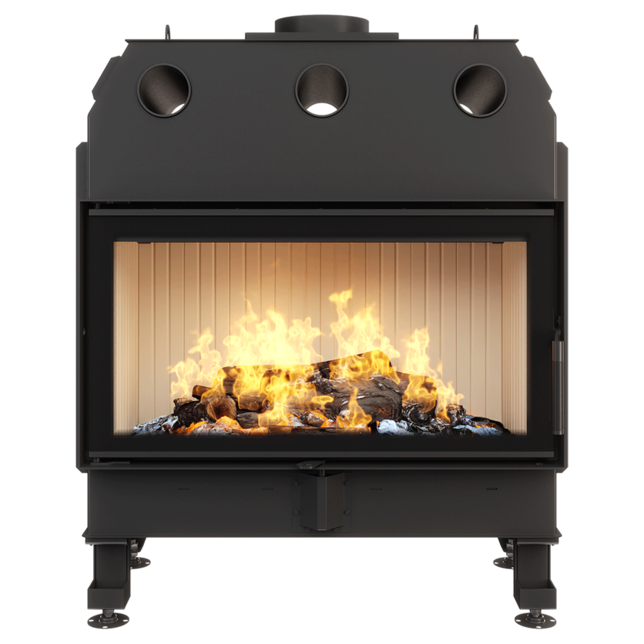

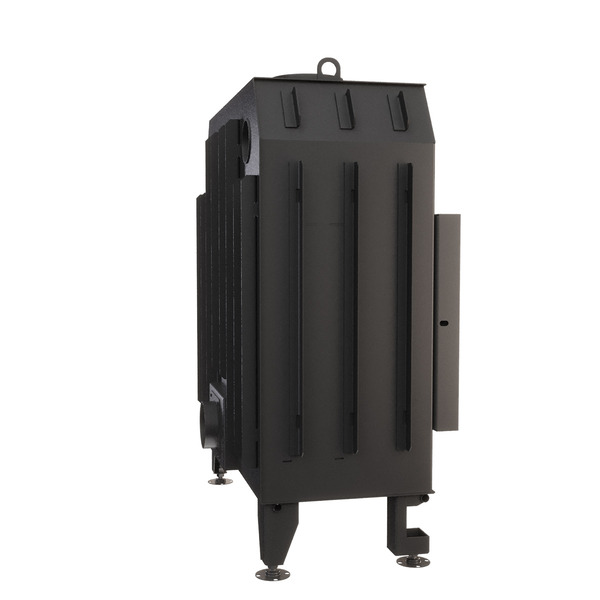

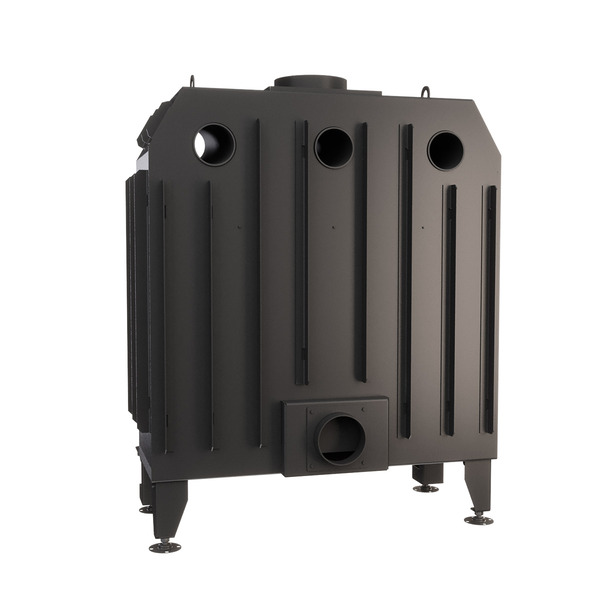

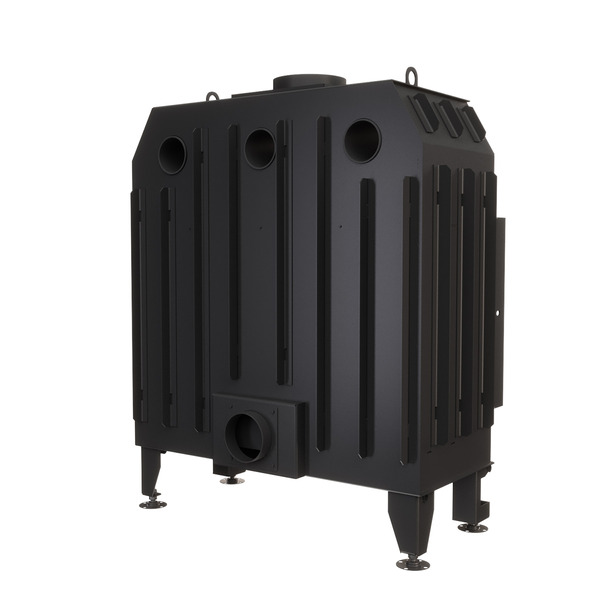

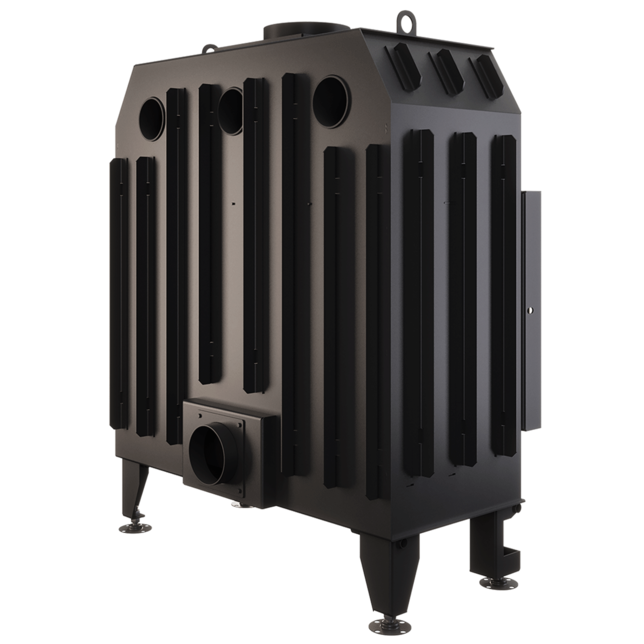

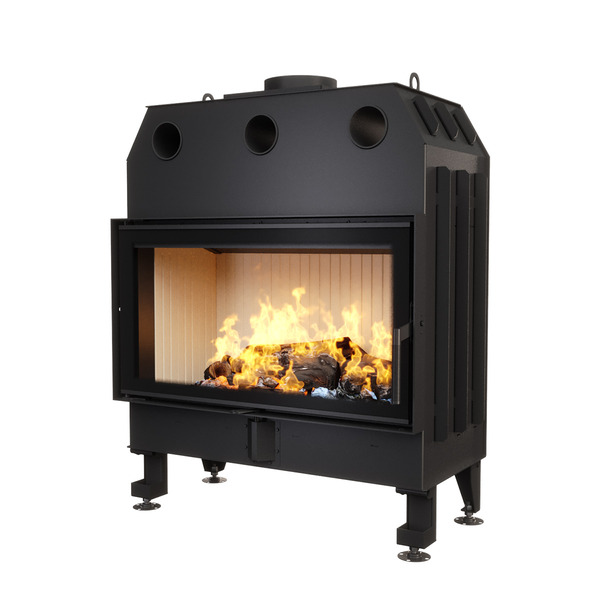

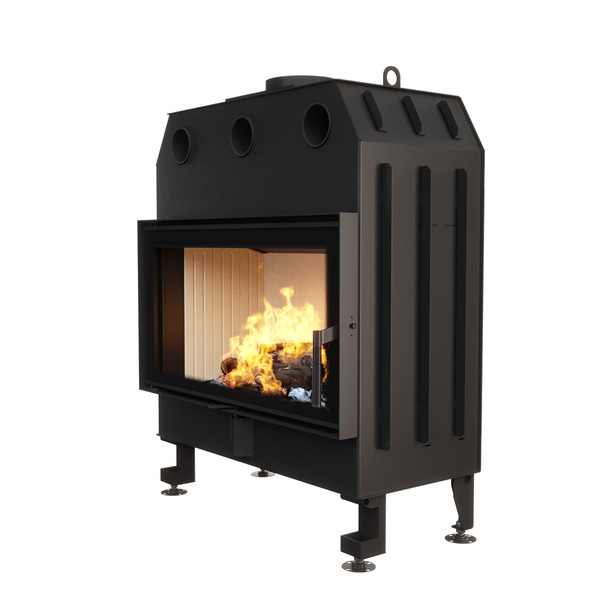

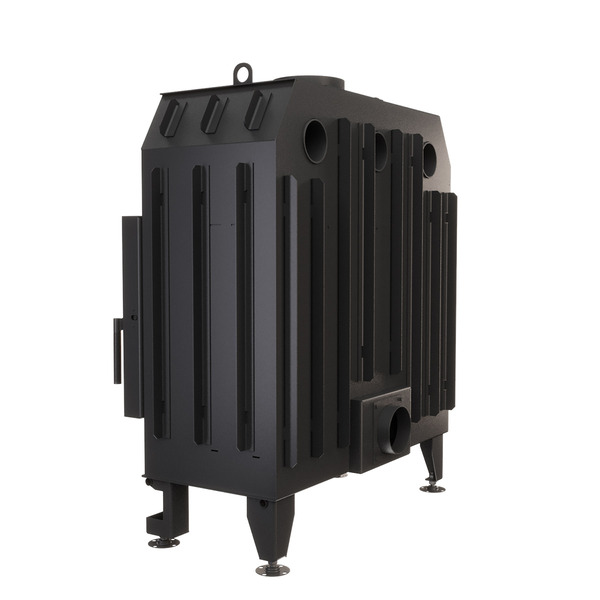

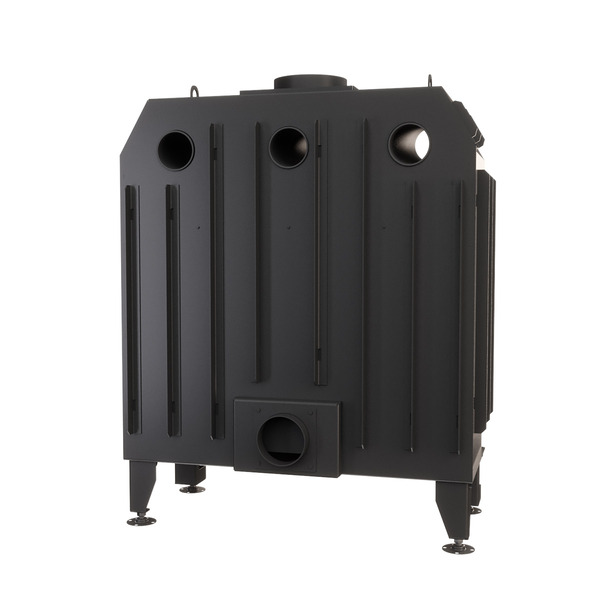

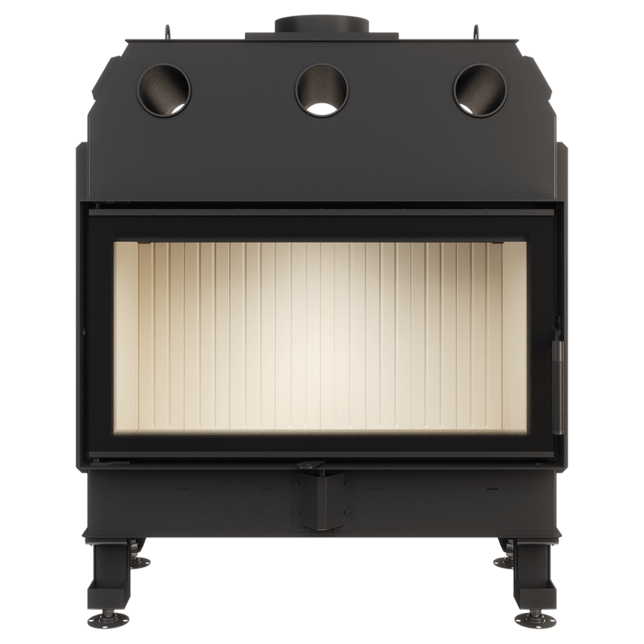

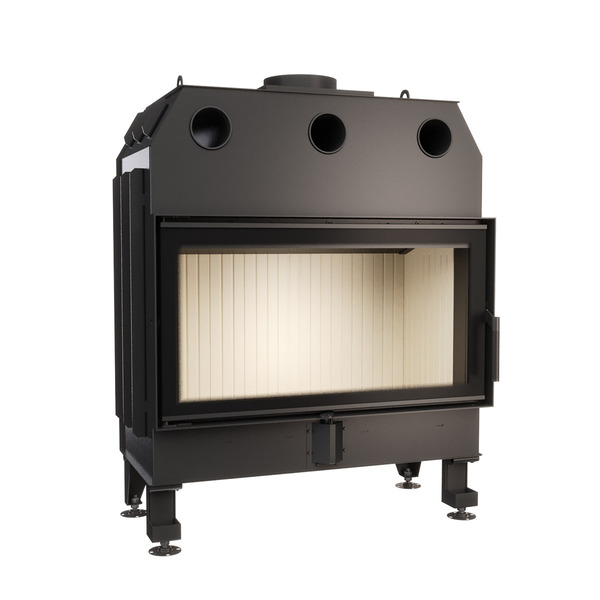

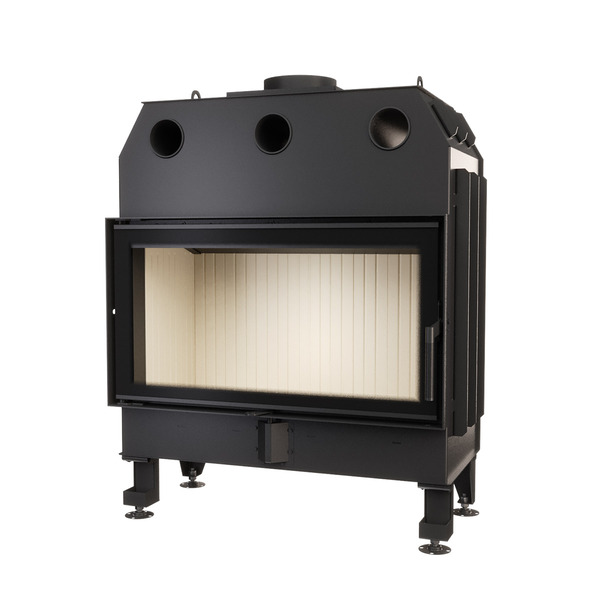

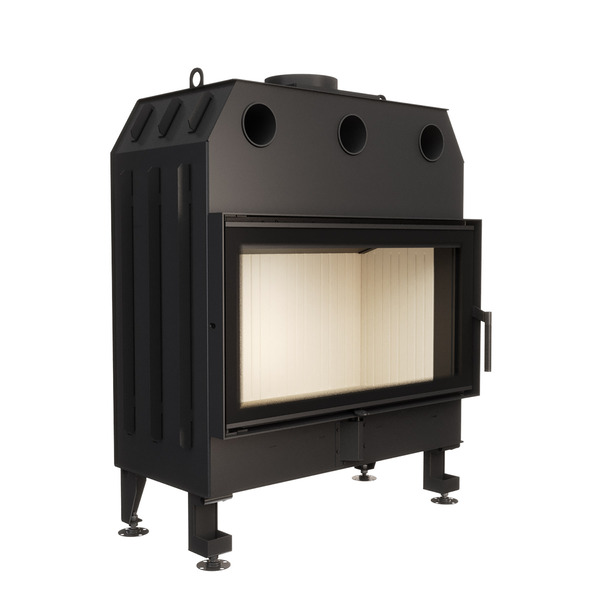

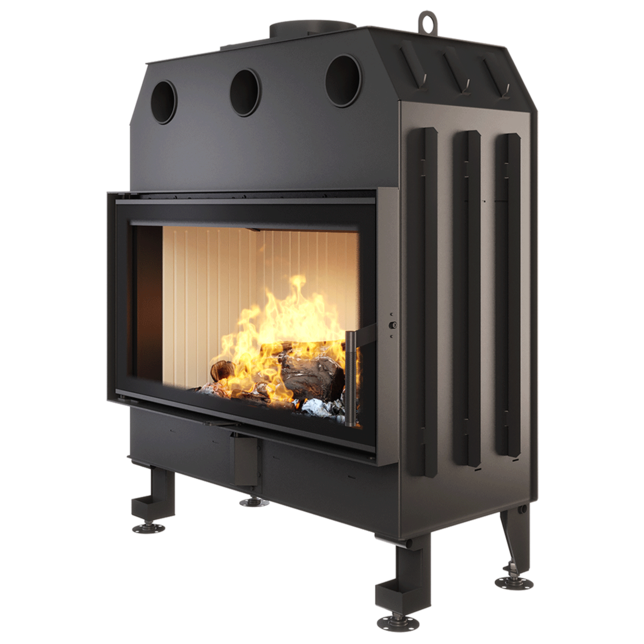

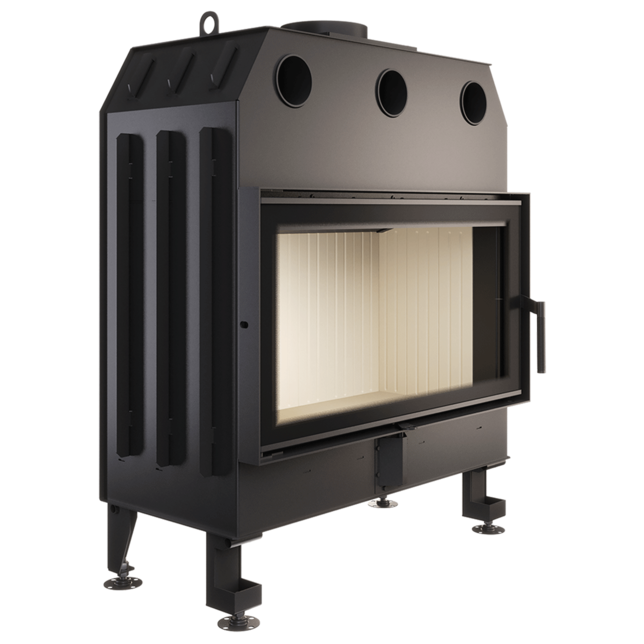

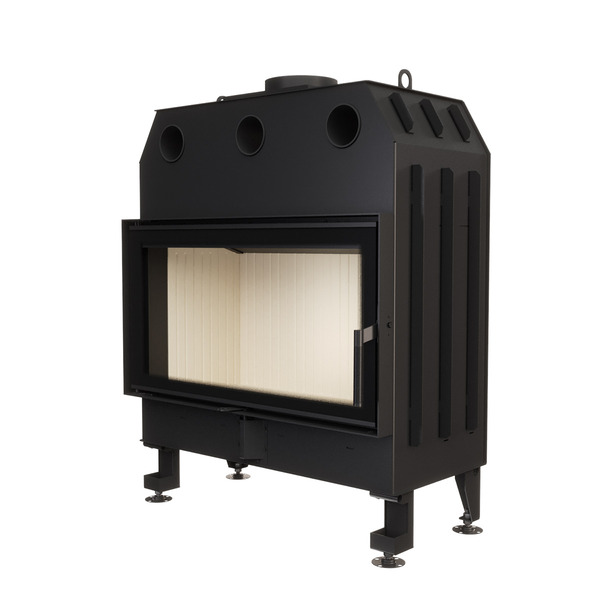

Fireplace insert SAVEN Energy 90x50 (19,0 kW) ECO

Product code: SE/90/50
Fireplace insert SAVEN Energy 90x50 (19,0 kW) ECO
In stock
A+
Characteristics Fireplace insert SAVEN Energy 90x50 (19,0 kW) ECO
General information
  • Nominal rated power (kW) 19.0
  • Efficiency (%) 82
  • Glass form straight
  • Material Steel
  • Fuel type wood
  • Heating capacity (m²/m³) 190 / 475

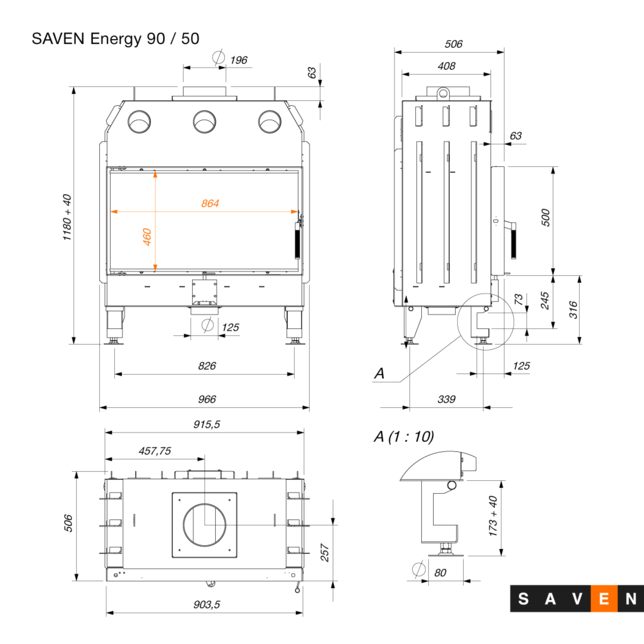

Physical parameters
  • Weight (kg) 230
  • Width (mm) 965.5
  • Height (mm) 1180
  • Depth (mm) 506
  • Flue pipe diameter (mm) 200
  • Main glass dimension (mm) - L / H / W 864x460x4
  • Max length of wood (mm) 800
  • Recommended ventilation area of the air outlet grid / intake grid (cm²) ≥ 950 / ≥ 1425
  • External air inlet diameter (mm) 125
Accessories
  • Clean glass system yes
  • Flue exit options top
  • Double combustion yes
  • Door opening mechanism right/left side
  • Chamotte colour white
Energetic efficiency
  • Energy efficiency class A+
Certificates
  • Compliance with ECOPROJECT standards yes
Additional information
  • External air feed lower / rear
  • Manufacturer SAVEN
  • Country Ukraine
  • Compatible with recuperation yes
  • Warranty 5 years
  • Barcode (GTIN) 4820295260073
  • Equipment type Fireplace inserts
Physical parameters
  • Weight (kg) 230
  • Width (mm) 965.5
  • Height (mm) 1180
  • Depth (mm) 506
  • Flue pipe diameter (mm) 200
  • Main glass dimension (mm) - L / H / W 864x460x4
  • Max length of wood (mm) 800
  • Recommended ventilation area of the air outlet grid / intake grid (cm²) ≥ 950 / ≥ 1425
  • External air inlet diameter (mm) 125
Energetic efficiency
  • Energy efficiency class A+
Additional information
  • External air feed lower / rear
  • Manufacturer SAVEN
  • Country Ukraine
  • Compatible with recuperation yes
  • Warranty 5 years
  • Barcode (GTIN) 4820295260073
  • Equipment type Fireplace inserts
General information
  • Nominal rated power (kW) 19.0
  • Efficiency (%) 82
  • Glass form straight
  • Material Steel
  • Fuel type wood
  • Heating capacity (m²/m³) 190 / 475
Accessories
  • Clean glass system yes
  • Flue exit options top
  • Double combustion yes
  • Door opening mechanism right/left side
  • Chamotte colour white
Certificates
  • Compliance with ECOPROJECT standards yes
Description Fireplace insert SAVEN Energy 90x50 (19,0 kW) ECO

Steel fireplace insert SAVEN Energy 90x50 (19,0 kW)​ ECO with straight glass: description

SAVEN steel fireplace inserts are made from certified materials and unique technologies. The main advantages of the SAVEN Energy 90x50 (19,0 kW) ECO steel fireplace insert with straight glass are:

  • High efficiency due to the implementation of the smoke exhaust design
  • Compatibility with a recuperation system
  • Bottom and rear air intake
  • Double deflector in the steel fireplace insert for increased efficiency and better heat transfer
  • Sturdy and rigid construction that is not deformed and is not affected by high temperatures
  • Sealing of the steel fireplace insert with fireplace cords for additional sealing
  • Unique leg design of the steel fireplace insert with straight glass for easy and quick installation
  • Smooth and easy flame control with a single regulator

The one-sided steel fireplace insert SAVEN Energy 90x50 (19,0 kW) ECO is made exclusively from high-quality and proven materials. The production process used:

  1. Hot-rolled low-alloyed steel with a thickness of 3 to 5 mm
  2. Lining with thick protective refractory plates with SAVEN's proprietary design
  3. Environmentally friendly paint that does not emit smoke during ignition and is resistant to high temperature fluctuations
  4. Heat-resistant glass from the German manufacturer Schott Robax (4 mm), which can withstand temperatures up to 760 °C

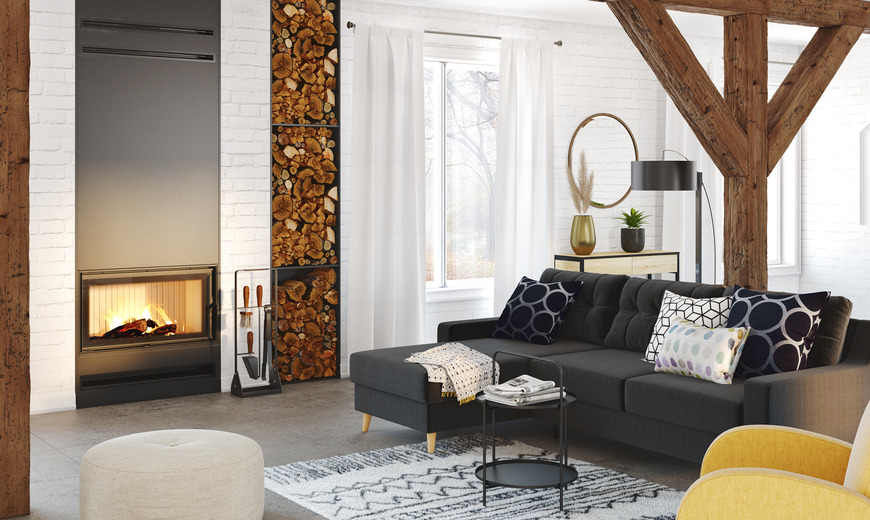

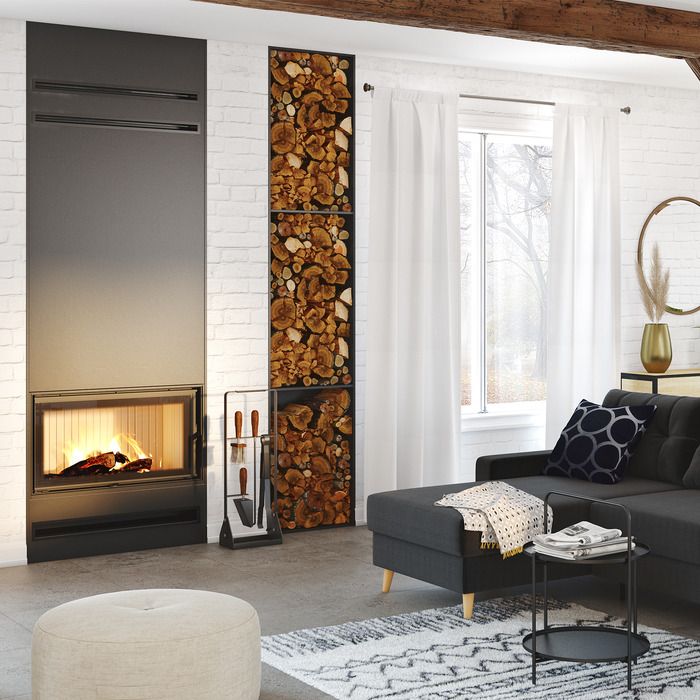

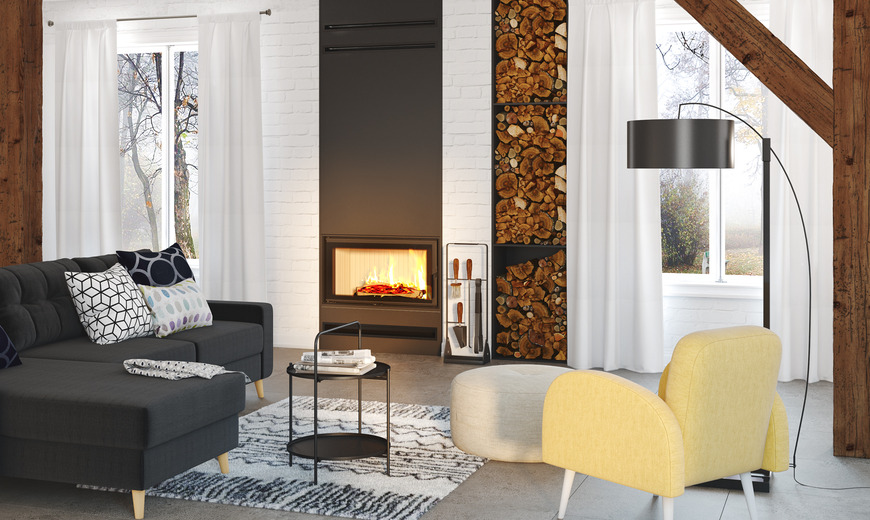

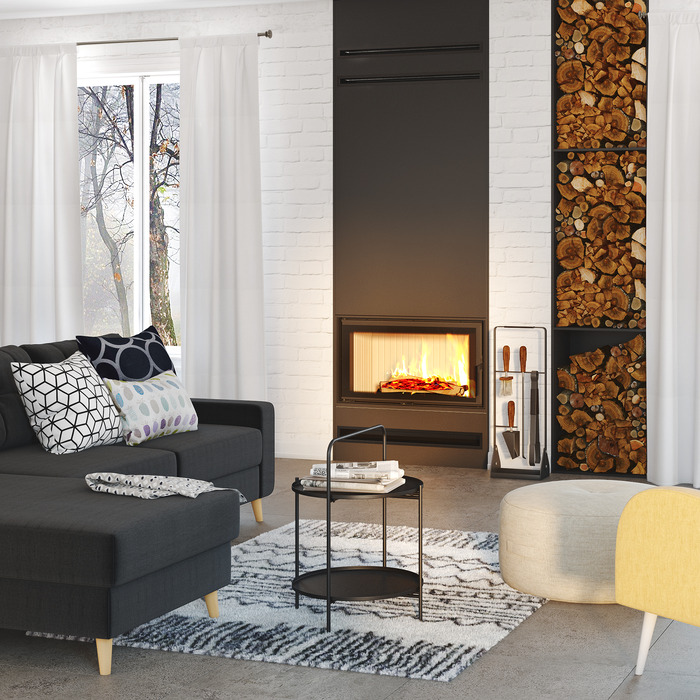

Fireplace in the interior
