Product code: SE/80/50/Up/BL

Fireplace insert SAVEN Energy Up 80x50 Black (17,0 kW) ECO

Product code: SE/80/50/Up/BL
Fireplace insert SAVEN Energy Up 80x50 Black (17,0 kW) ECO
In stock
A
Characteristics Fireplace insert SAVEN Energy Up 80x50 Black (17,0 kW) ECO
General information
  • Nominal rated power (kW) 17.0
  • Efficiency (%) 78
  • Glass form straight
  • Material Steel
  • Fuel type wood
  • Heating capacity (m²/m³) 170 / 425
Physical parameters
  • Weight (kg) 269
  • Width (mm) 959
  • Height (mm) 1252
  • Depth (mm) 573
  • Flue pipe diameter (mm) 200
  • Main glass dimension (mm) - L / H / W 763x460x4
  • Max length of wood (mm) 700
  • Recommended ventilation area of the air outlet grid / intake grid (cm²) ≥ 850 / ≥ 1275 см²
  • External air inlet diameter (mm) 125
Accessories
  • Clean glass system yes
  • Flue exit options top
  • Double combustion yes
  • Door opening mechanism upwards
  • Chamotte colour black
Energetic efficiency
  • Energy efficiency class A
Certificates
  • Compliance with ECOPROJECT standards yes
Additional information
  • External air feed lower / rear
  • Manufacturer SAVEN
  • Country Ukraine
  • Compatible with recuperation yes
  • Warranty 5 years
  • Barcode (GTIN) 4820295260141
  • Equipment type Fireplace inserts
Physical parameters
  • Weight (kg) 269
  • Width (mm) 959
  • Height (mm) 1252
  • Depth (mm) 573
  • Flue pipe diameter (mm) 200
  • Main glass dimension (mm) - L / H / W 763x460x4
  • Max length of wood (mm) 700
  • Recommended ventilation area of the air outlet grid / intake grid (cm²) ≥ 850 / ≥ 1275 см²
  • External air inlet diameter (mm) 125
Energetic efficiency
  • Energy efficiency class A
Additional information
  • External air feed lower / rear
  • Manufacturer SAVEN
  • Country Ukraine
  • Compatible with recuperation yes
  • Warranty 5 years
  • Barcode (GTIN) 4820295260141
  • Equipment type Fireplace inserts
General information
  • Nominal rated power (kW) 17.0
  • Efficiency (%) 78
  • Glass form straight
  • Material Steel
  • Fuel type wood
  • Heating capacity (m²/m³) 170 / 425
Accessories
  • Clean glass system yes
  • Flue exit options top
  • Double combustion yes
  • Door opening mechanism upwards
  • Chamotte colour black
Certificates
  • Compliance with ECOPROJECT standards yes
Description Fireplace insert SAVEN Energy Up 80x50 Black (17,0 kW) ECO

Steel fireplace insert SAVEN Energy Up 80x50 Black (17.0 kW) ECO

The model range of Black fireplaces includes steel fireplace insert lined with black fireclay. This is an interesting and fresh solution, because black fireclay has a number of advantages:

  • Quality. Czech full-bodied black fireclay 35 mm thick does not burn out at high combustion temperatures in the furnace, does not flake and does not crumble over time.
  • Security. The paint used in its production does not smoke and does not emit an unpleasant smell when burning.
  • Aesthetics. Black fireclay with original SAVEN design looks spectacular, adds depth and enriches the interior, both during burning and without fire.
  • Care. Black fireclay does not show dirt or soot, so the fireplace insert will always look neat.

Steel Fireplace Insert SAVEN Energy Up 80x50 Black (17.0 kW) ECO with Guillotine

SAVEN's steel fireplace inserts with a guillotine are made from certified materials and unique technologies. The main advantages of the SAVEN Energy Up 80x50 Black​ (17.0 kW) ECO steel fireplace insert include:

Convenient and Reliable Guillotine Door Lifting Mechanism

In the SAVEN Energy Up 80x50 Black (17.0 kW) ECO steel fireplace insert, the door opens by lifting it up, using the guillotine mechanism for regular use, and sideways opening to the right for maintenance. The benefits of this system include:

  • reliable sealing of the combustion chamber
  • quiet closing and opening
  • door fixation in any position
  • automatic door tightening for a secure seal
  • ability to add/remove weight to adjust the closing and opening as convenient for the user
  • side door opening mode for maintenance

Modern Technologies and Energy Efficiency

The SAVEN Energy Up 80x50 Black (17.0 kW) ECO fireplace insert quickly heats up and retains heat in the room for a long time, not only saving fuel costs but also maintaining a comfortable temperature and atmosphere in the home.

  • High efficiency of the steel fireplace insert due to the implementation of the flue gas diversion design
  • Compatibility of the steel fireplace insert with a recuperation system
  • Bottom and rear air connection
  • Double deflector in the steel fireplace insert for increased efficiency and better heat transfer
  • Sturdy and rigid construction that does not deform and is resistant to high temperatures
  • Sealing of the steel fireplace insert with fireplace ropes for additional sealing
  • Sturdy door profile of the steel fireplace insert with glass, resistant to bending and twisting under the influence of high temperatures
  • Unique design of the legs of the fireplace insert with straight glass, ensuring easy and fast installation
  • Smooth and easy flame control with single regulator

Quality Certified Materials from the EU

The guillotine steel fireplace insert SAVEN Energy Up 80x50 Black (17.0 kW) ECO is made exclusively from tested and high-quality materials. The production includes:

  • Hot-rolled sheet of low-alloy steel with a thickness of 3 to 5 mm
  • Lining with thick protective refractory plates with SAVEN's proprietary design
  • Eco-friendly paint that does not emit smoke when ignited and is resistant to high temperature fluctuations
  • Heat-resistant glass from the German manufacturer Schott Robax (4 mm), capable of withstanding temperatures up to 760°C

Practicality and Safety

The SAVEN Energy Up 80x50 Black (17.0 kW) ECO steel fireplace insert is a versatile insert with a lifting mechanism that fits into any interior style and serves safely for many years.

  • Easy installation. The compact dimensions and weight of the steel fireplace insert allow for installation in almost any convenient location and at any stage of renovation.
  • Low maintenance. Wood in the fireplace insert burns efficiently, so ash is formed infrequently, and its removal is not frequent.
  • "Clean glass" system protecting the glass of the fireplace insert from fogging and soot.
  • Universal design that can be applied in various room styles.
  • Practicality. Accessories and SAVEN grilles can be purchased to visually complement your fireplace.
  • Safety. The SAVEN insert, thanks to precision manufacturing, is securely sealed and safe to use.
  • Ecological care. The energy-saving principle helps use natural resources rationally and preserve the environment for future generations.

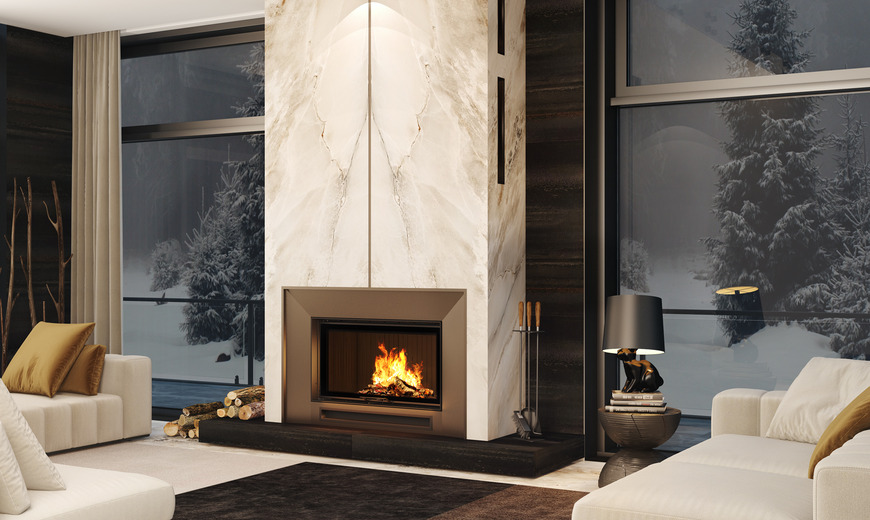

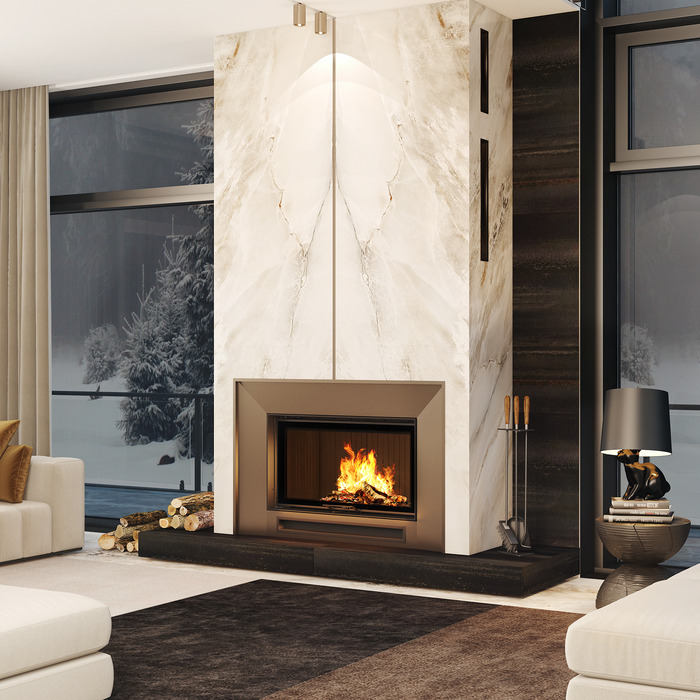

Fireplace in the interior

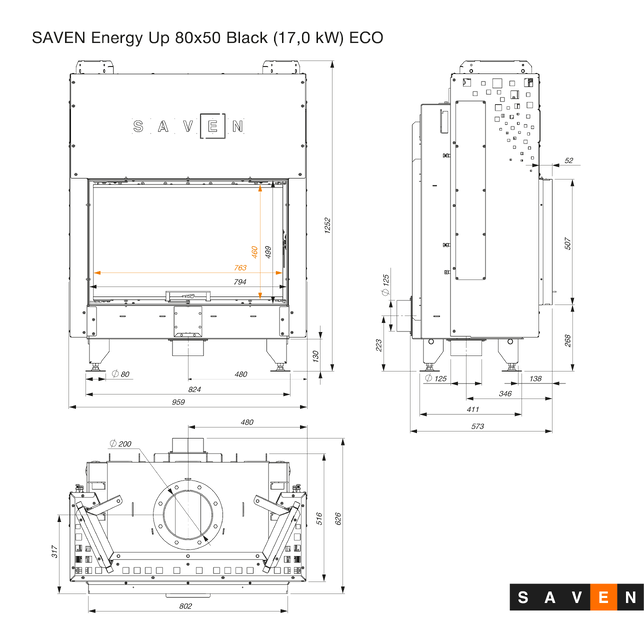

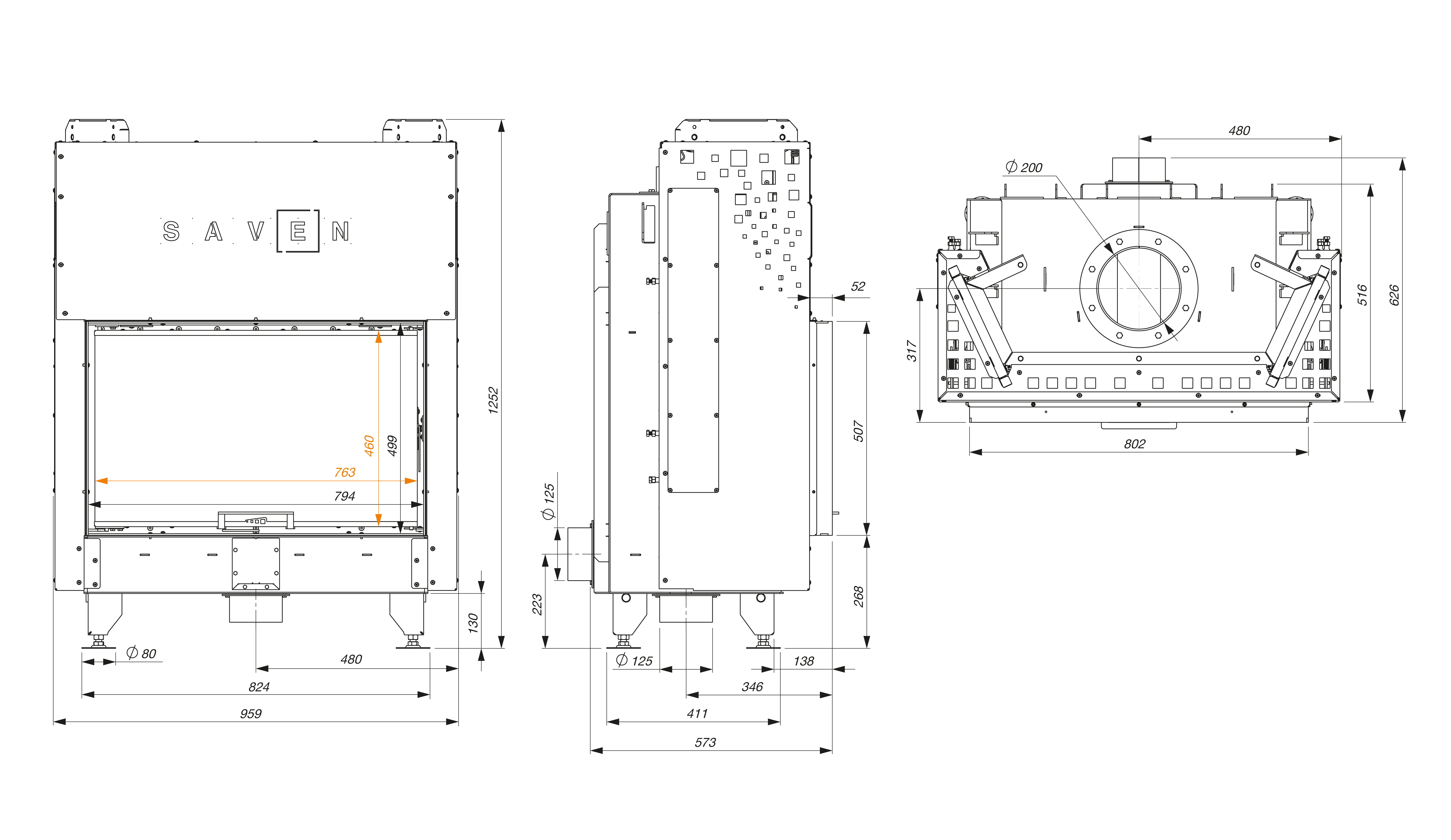

Technical drawing Fireplace insert SAVEN Energy Up 80x50 Black (17,0 kW) ECO
Documentation 3D files
Barcode SAVEN Energy Up 80x50 Black (17,0 kW) ECO PDF, 0.1 Mb
PDF, 66.1 Mb
PDF, 78.7 Mb
PDF, 0.1 Mb
PDF, 0.1 Mb
PDF, 1.2 Mb
PDF, 0.9 Mb
