Product code: WS16-LBox

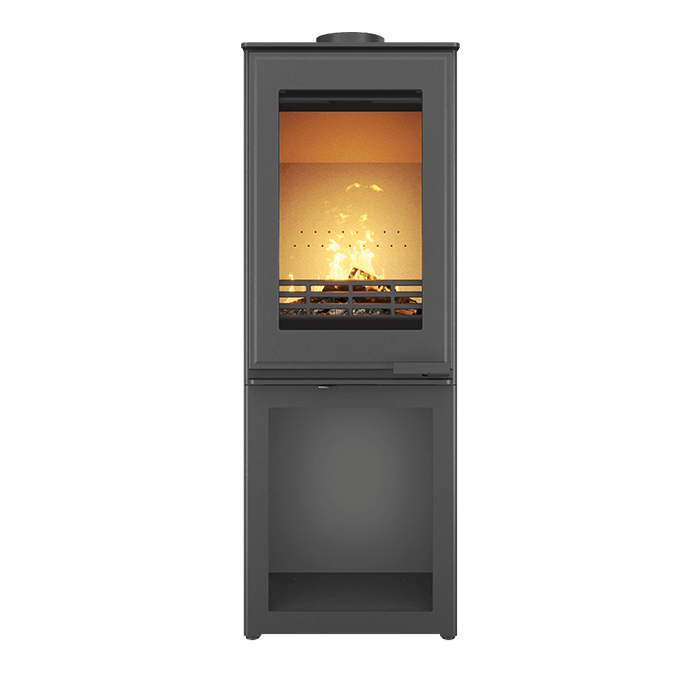

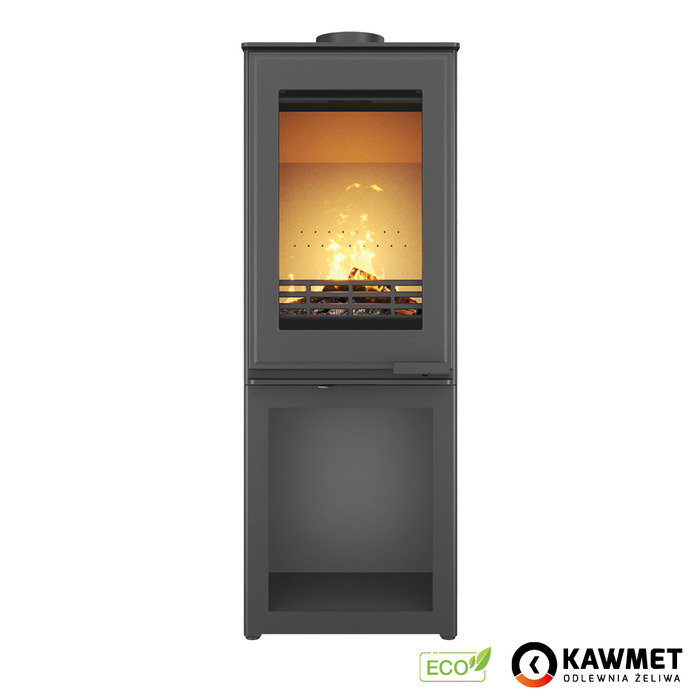

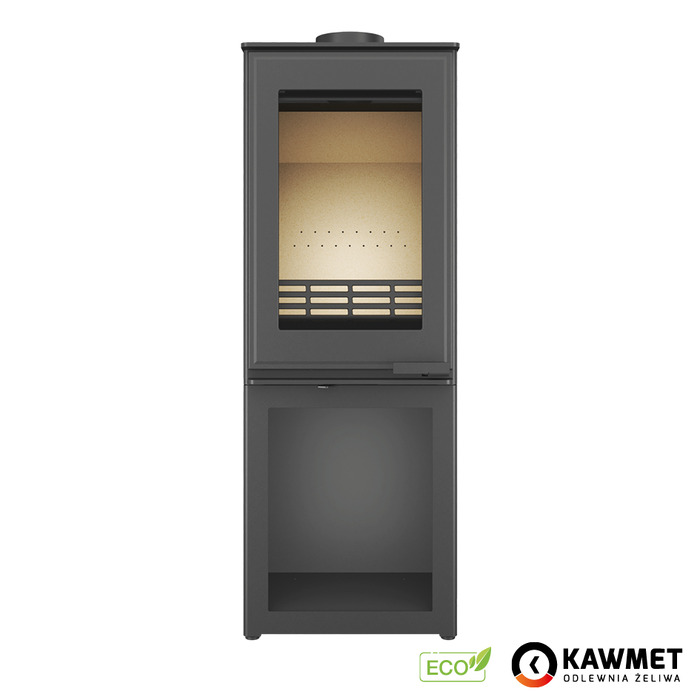

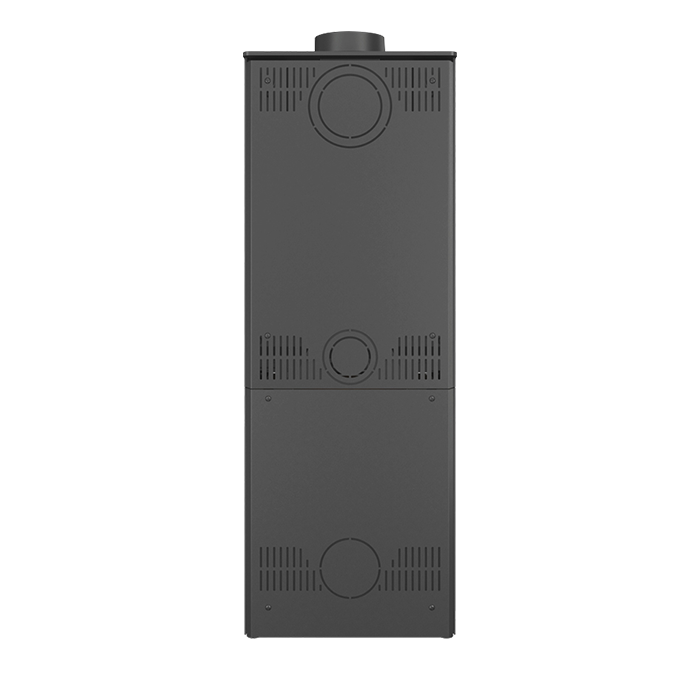

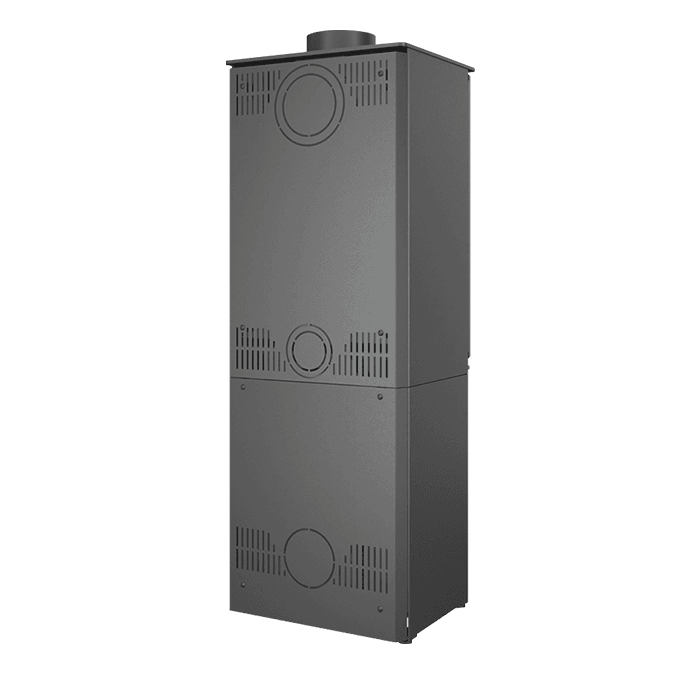

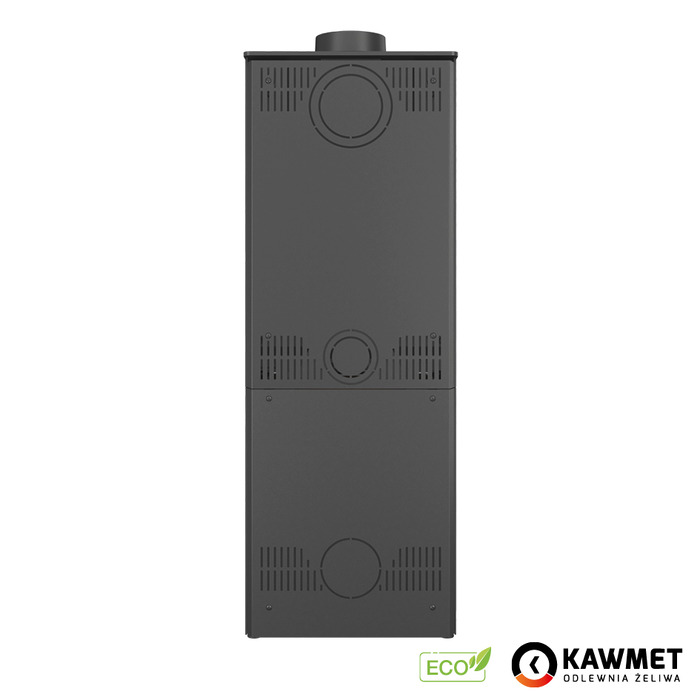

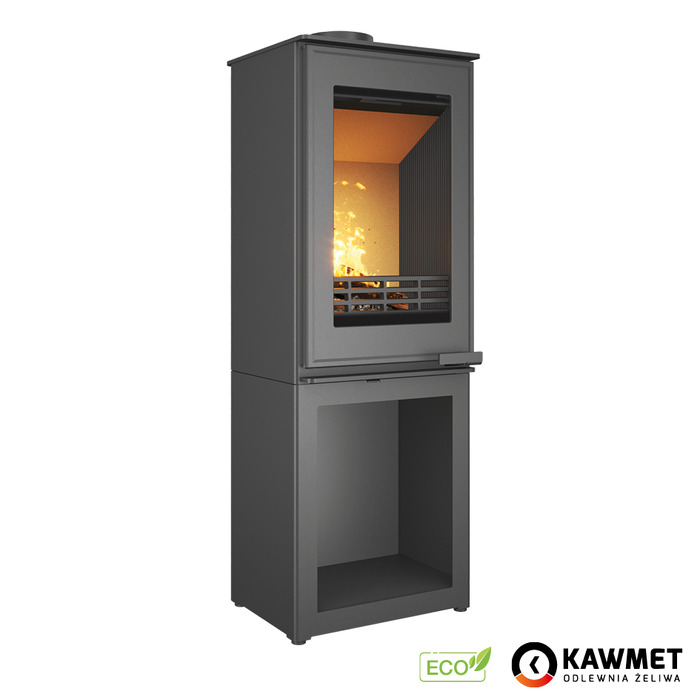

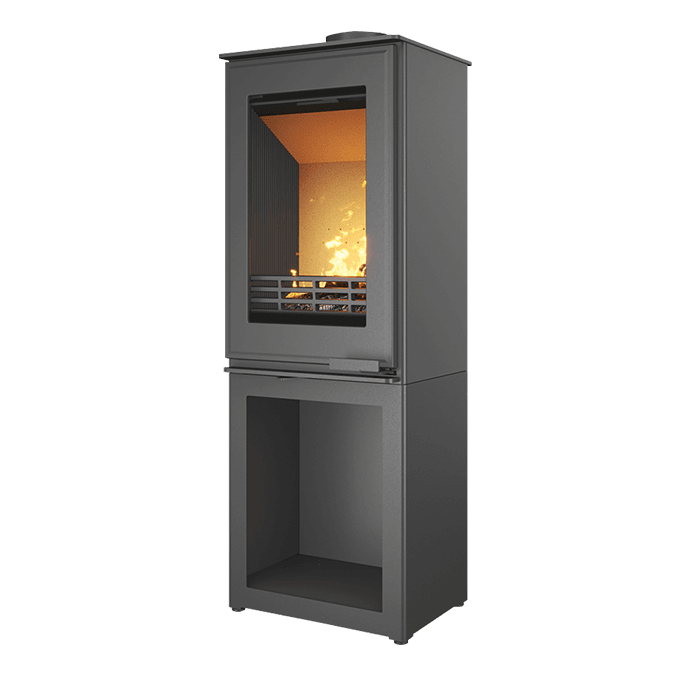

Stove KAWMET VENUS S16 L-Box ECO
Product code: WS16-LBox
Stove KAWMET VENUS S16 L-Box ECO
In stock
Characteristics
Stove KAWMET VENUS S16 L-Box ECO
General information
- Nominal rated power (kW) 9,5
- Efficiency (%) 80,9
- Material steel / cast iron
- Fuel type Recommended seasoned hardwood (moisture ≤20%)
- Heating capacity (m²/m³) 95 / 238
- Average flue gas temperature (°C) 236,6
Physical parameters
- Weight (kg) 132
- Width (mm) 423
- Height (mm) 1207
- Depth (mm) 388
- Flue pipe diameter (mm) 150
- Main glass dimension (mm) - L / H / W 294 / 482 / 4
- Max length of wood (mm) 380
Accessories
- Clean glass system yes
- Ashpan yes
- Flue exit options top / back
- Removable grate yes
- Removable back plate yes
- Damper no
- Deflector vermiculite
- Double combustion yes
Energetic efficiency
- Energy efficiency class A+
- Energy efficiency index (EEI) (%) 107
- CO emissions (at 13% O₂) (%) 0,09
- Solid particles (PM mg/m³) 35
- Organic gas compounds (OGC mg/m³) 102
- Carbon monoxide (CO mg/m³) 1114
- Nitrogen oxides (NOx mg/m³) 115
Certificates
- Compliance with ECOPROJECT standards yes
Additional information
- External air feed yes
- Manufacturer KAWMET
Physical parameters
- Weight (kg) 132
- Width (mm) 423
- Height (mm) 1207
- Depth (mm) 388
- Flue pipe diameter (mm) 150
- Main glass dimension (mm) - L / H / W 294 / 482 / 4
- Max length of wood (mm) 380
Energetic efficiency
- Energy efficiency class A+
- Energy efficiency index (EEI) (%) 107
- CO emissions (at 13% O₂) (%) 0,09
- Solid particles (PM mg/m³) 35
- Organic gas compounds (OGC mg/m³) 102
- Carbon monoxide (CO mg/m³) 1114
- Nitrogen oxides (NOx mg/m³) 115
Additional information
- External air feed yes
- Manufacturer KAWMET
General information
- Nominal rated power (kW) 9,5
- Efficiency (%) 80,9
- Material steel / cast iron
- Fuel type Recommended seasoned hardwood (moisture ≤20%)
- Heating capacity (m²/m³) 95 / 238
- Average flue gas temperature (°C) 236,6
Accessories
- Clean glass system yes
- Ashpan yes
- Flue exit options top / back
- Removable grate yes
- Removable back plate yes
- Damper no
- Deflector vermiculite
- Double combustion yes
Certificates
- Compliance with ECOPROJECT standards yes

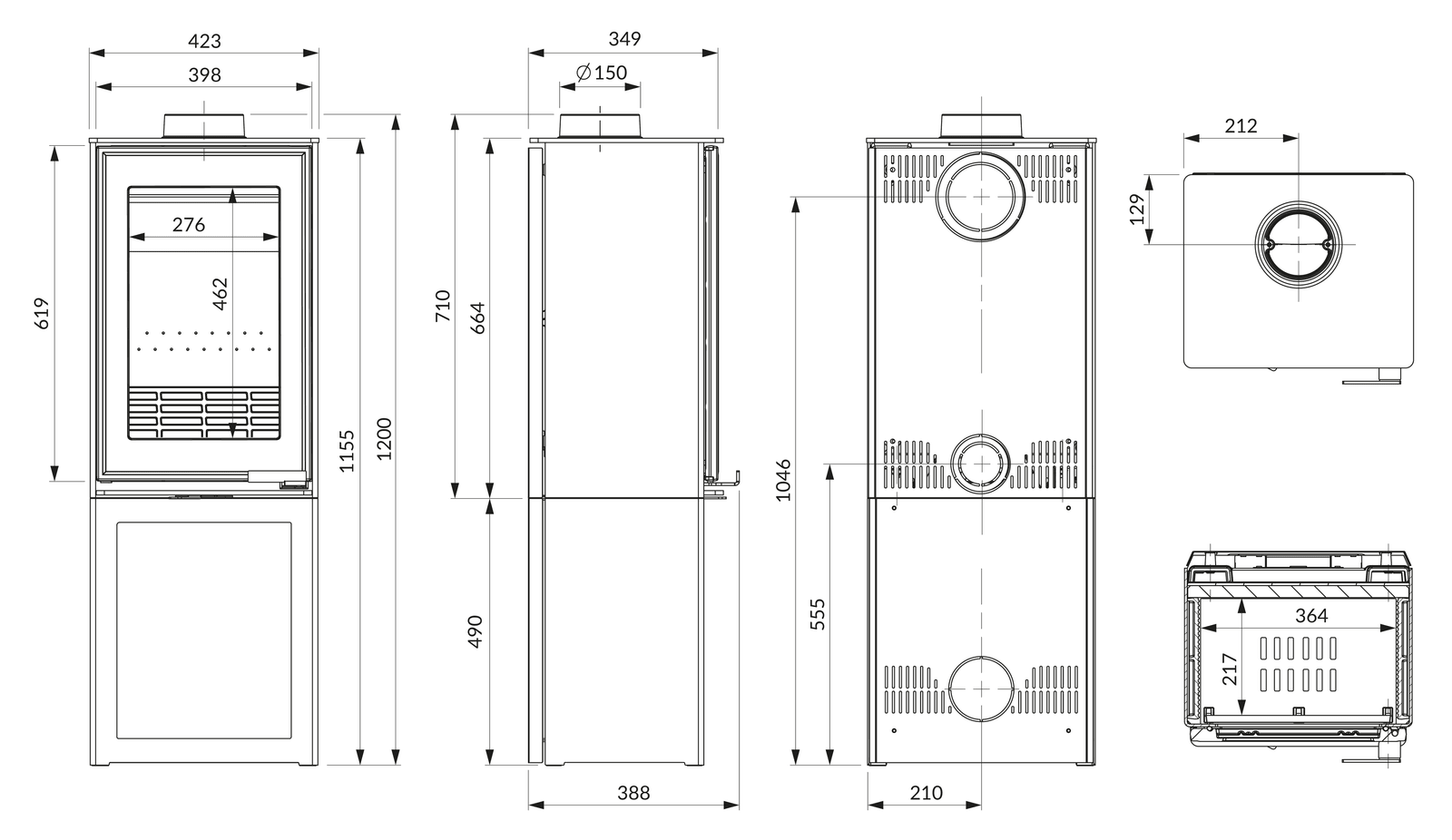

Technical drawing
Stove KAWMET VENUS S16 L-Box ECO
