Product code: W6-10,1kW EKO WR
Fireplace insert KAWMET W6 (10,1 kW) ECO
Product code: W6-10,1kW EKO WR
Fireplace insert KAWMET W6 (10,1 kW) ECO
In stock
Characteristics
Fireplace insert KAWMET W6 (10,1 kW) ECO
General information
- Nominal rated power (kW) 10,1
- Efficiency (%) 74,6
- Material cast iron
- Fuel type Recommended seasoned hardwood (moisture ≤20%)
- Heating capacity (m²/m³) 100 / 250
- Average flue gas temperature (°C) 294
Physical parameters
- Weight (kg) 95
- Width (mm) 685
- Height (mm) 515 (615)
- Depth (mm) 380
- Flue pipe diameter (mm) 180
- Main glass dimension (mm) - L / H / W 490 / 350 / 4
- Max length of wood (mm) 470
- Recommended ventilation area of the air outlet grid / intake grid (cm²) 505 / 758
Accessories
- Clean glass system yes
- Ashpan yes
- Removable grate yes
- Removable back plate yes
- Damper yes
- Deflector vermiculite
- Double combustion no
Energetic efficiency
- Energy efficiency class A
- Energy efficiency index (EEI) (%) 98
- CO emissions (at 13% O₂) (%) 0,14
- Solid particles (PM mg/m³) 25
- Organic gas compounds (OGC mg/m³) 113
- Carbon monoxide (CO mg/m³) 1710
- Nitrogen oxides (NOx mg/m³) 36
Certificates
- Compliance with ECOPROJECT standards yes
Additional information
- External air feed no
- Manufacturer KAWMET
Physical parameters
- Weight (kg) 95
- Width (mm) 685
- Height (mm) 515 (615)
- Depth (mm) 380
- Flue pipe diameter (mm) 180
- Main glass dimension (mm) - L / H / W 490 / 350 / 4
- Max length of wood (mm) 470
- Recommended ventilation area of the air outlet grid / intake grid (cm²) 505 / 758
Energetic efficiency
- Energy efficiency class A
- Energy efficiency index (EEI) (%) 98
- CO emissions (at 13% O₂) (%) 0,14
- Solid particles (PM mg/m³) 25
- Organic gas compounds (OGC mg/m³) 113
- Carbon monoxide (CO mg/m³) 1710
- Nitrogen oxides (NOx mg/m³) 36
Additional information
- External air feed no
- Manufacturer KAWMET
General information
- Nominal rated power (kW) 10,1
- Efficiency (%) 74,6
- Material cast iron
- Fuel type Recommended seasoned hardwood (moisture ≤20%)
- Heating capacity (m²/m³) 100 / 250
- Average flue gas temperature (°C) 294
Accessories
- Clean glass system yes
- Ashpan yes
- Removable grate yes
- Removable back plate yes
- Damper yes
- Deflector vermiculite
- Double combustion no
Certificates
- Compliance with ECOPROJECT standards yes

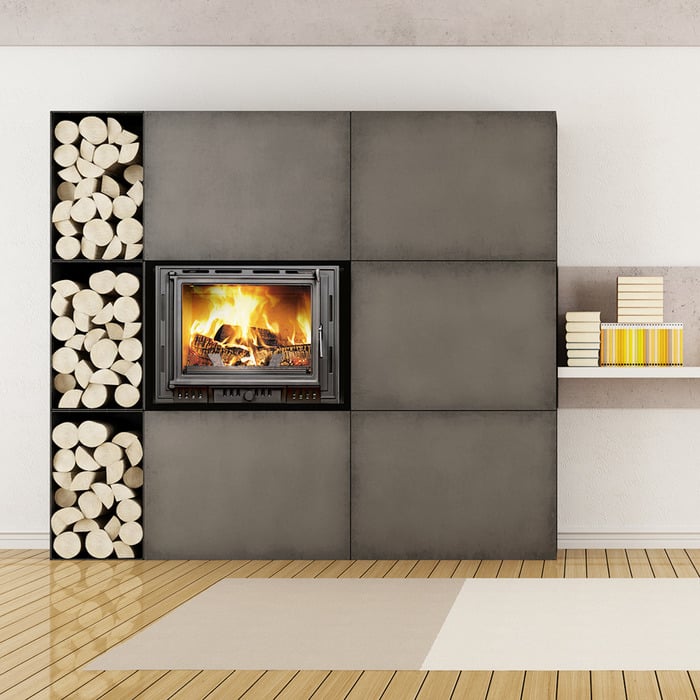

Fireplace in the interior

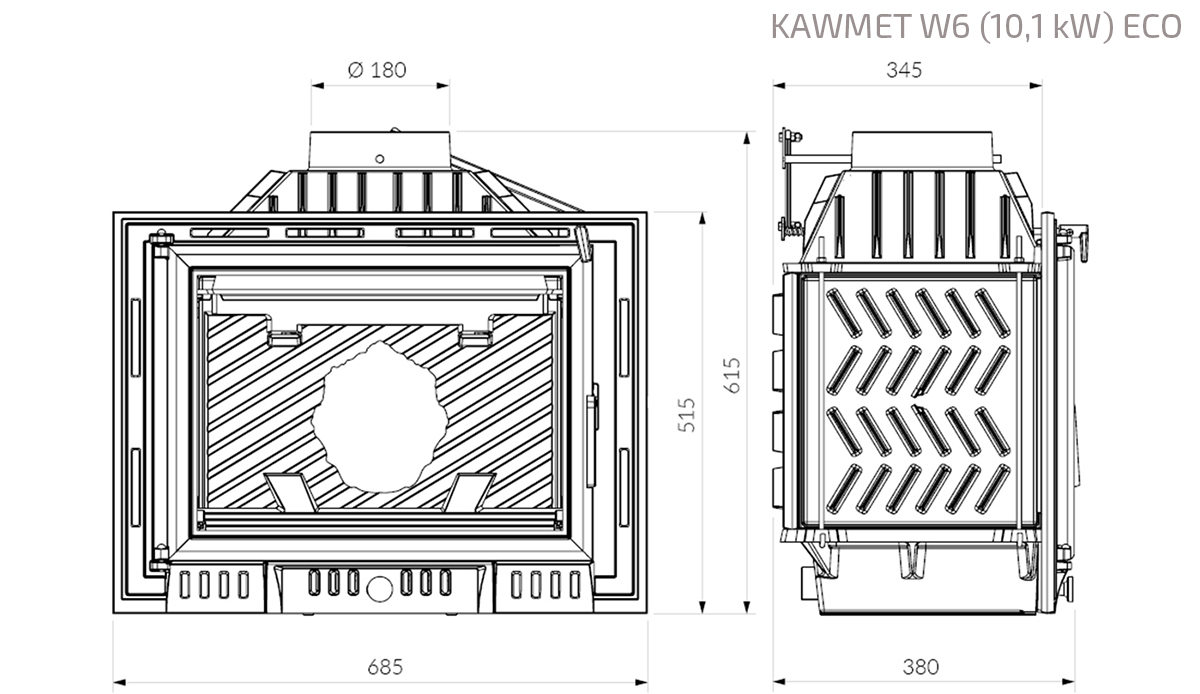

Technical drawing
Fireplace insert KAWMET W6 (10,1 kW) ECO
Documentation
