Product code: SE/60/50/BL

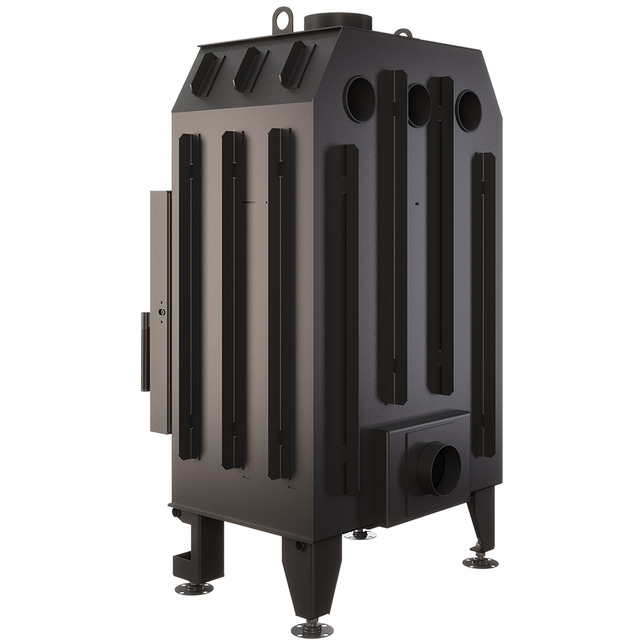

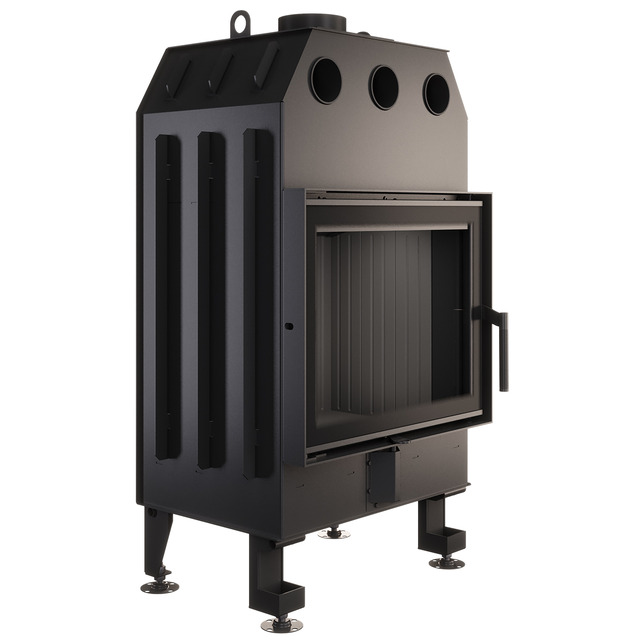

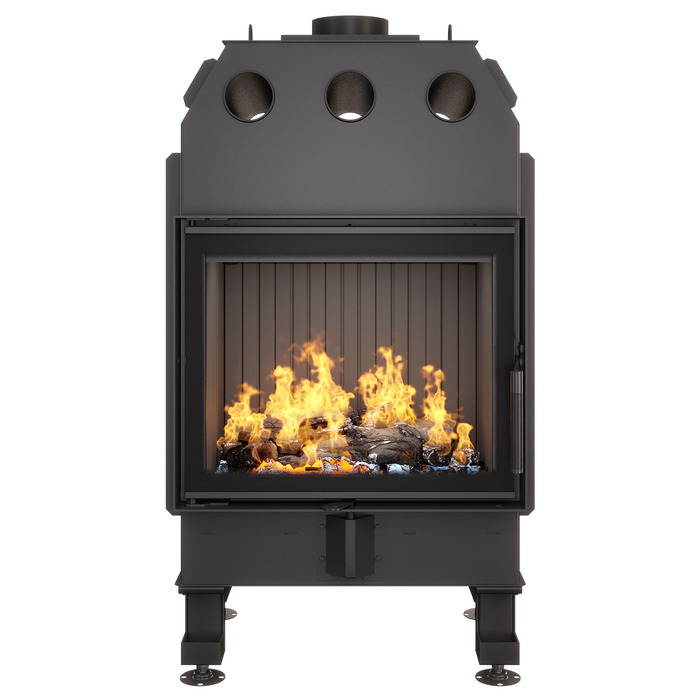

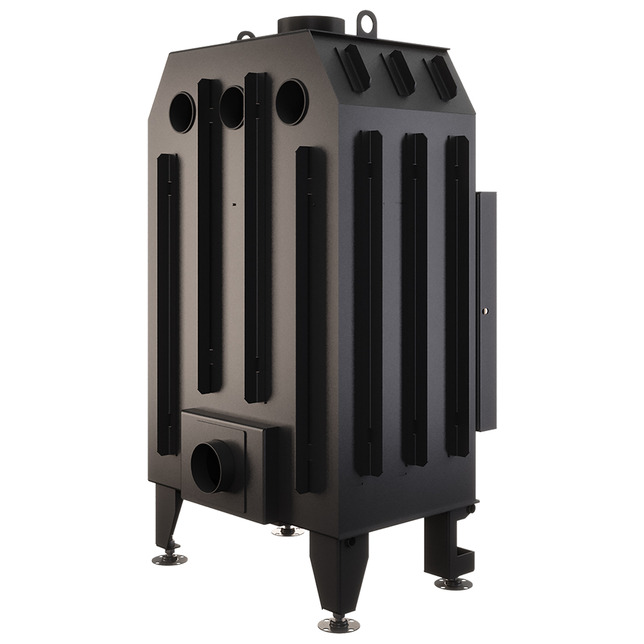

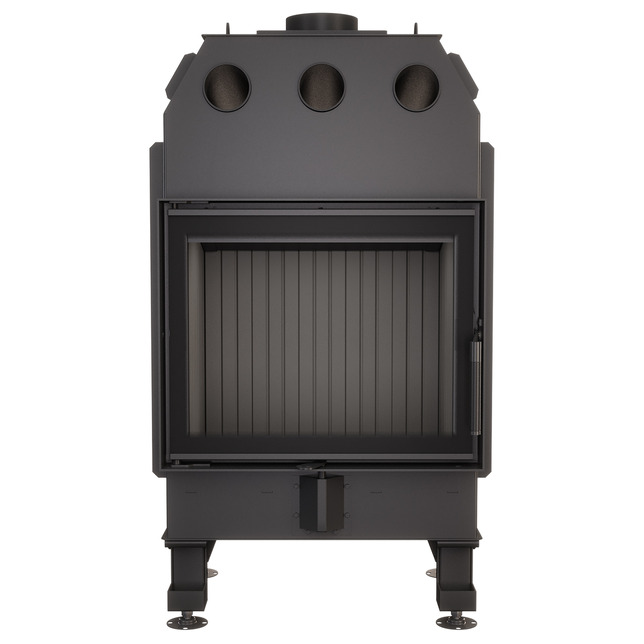

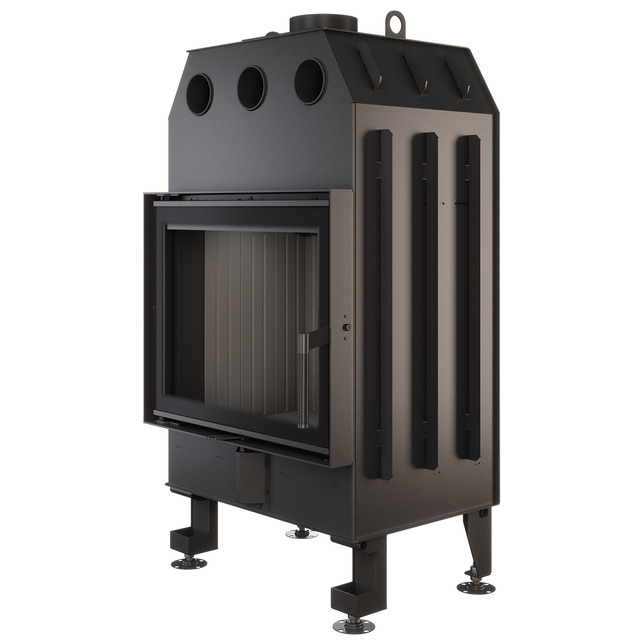

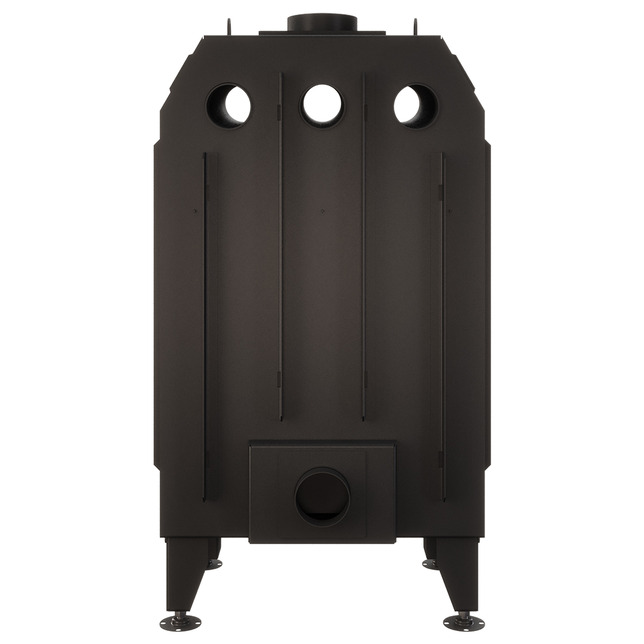

Fireplace insert SAVEN Energy 60x50 Black (14,5 kW) ECO

Product code: SE/60/50/BL
Fireplace insert SAVEN Energy 60x50 Black (14,5 kW) ECO
In stock
A
Characteristics Fireplace insert SAVEN Energy 60x50 Black (14,5 kW) ECO
General information
  • Nominal rated power (kW) 14.5
  • Efficiency (%) 78
  • Glass form straight
  • Material Steel
  • Fuel type wood
  • Heating capacity (m²/m³) 145 / 363
Physical parameters
  • Weight (kg) 182
  • Width (mm) 661
  • Height (mm) 1180
  • Depth (mm) 506
  • Flue pipe diameter (mm) 150
  • Main glass dimension (mm) - L / H / W 560x460x4
  • Max length of wood (mm) 500
  • Recommended ventilation area of the air outlet grid / intake grid (cm²) ≥ 725 / ≥ 1090 см²
  • External air inlet diameter (mm) 100
Accessories
  • Clean glass system yes
  • Flue exit options top
  • Double combustion yes
  • Door opening mechanism right/left side
  • Chamotte colour black
Energetic efficiency
  • Energy efficiency class A
Certificates
  • Compliance with ECOPROJECT standards yes
Additional information
  • External air feed lower / rear
  • Manufacturer SAVEN
  • Country Ukraine
  • Compatible with recuperation yes
  • Warranty 5 years
  • Barcode (GTIN) 4820295260233
  • Equipment type Fireplace inserts
Physical parameters
  • Weight (kg) 182
  • Width (mm) 661
  • Height (mm) 1180
  • Depth (mm) 506
  • Flue pipe diameter (mm) 150
  • Main glass dimension (mm) - L / H / W 560x460x4
  • Max length of wood (mm) 500
  • Recommended ventilation area of the air outlet grid / intake grid (cm²) ≥ 725 / ≥ 1090 см²
  • External air inlet diameter (mm) 100
Energetic efficiency
  • Energy efficiency class A
Additional information
  • External air feed lower / rear
  • Manufacturer SAVEN
  • Country Ukraine
  • Compatible with recuperation yes
  • Warranty 5 years
  • Barcode (GTIN) 4820295260233
  • Equipment type Fireplace inserts
General information
  • Nominal rated power (kW) 14.5
  • Efficiency (%) 78
  • Glass form straight
  • Material Steel
  • Fuel type wood
  • Heating capacity (m²/m³) 145 / 363
Accessories
  • Clean glass system yes
  • Flue exit options top
  • Double combustion yes
  • Door opening mechanism right/left side
  • Chamotte colour black
Certificates
  • Compliance with ECOPROJECT standards yes
Description Fireplace insert SAVEN Energy 60x50 Black (14,5 kW) ECO

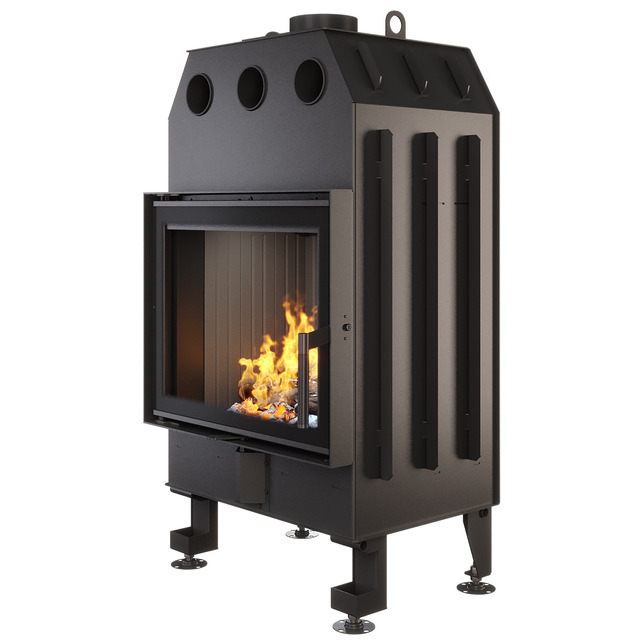

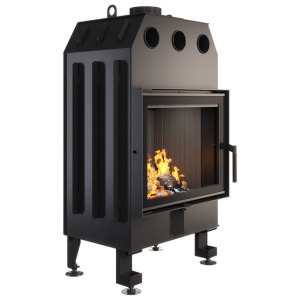

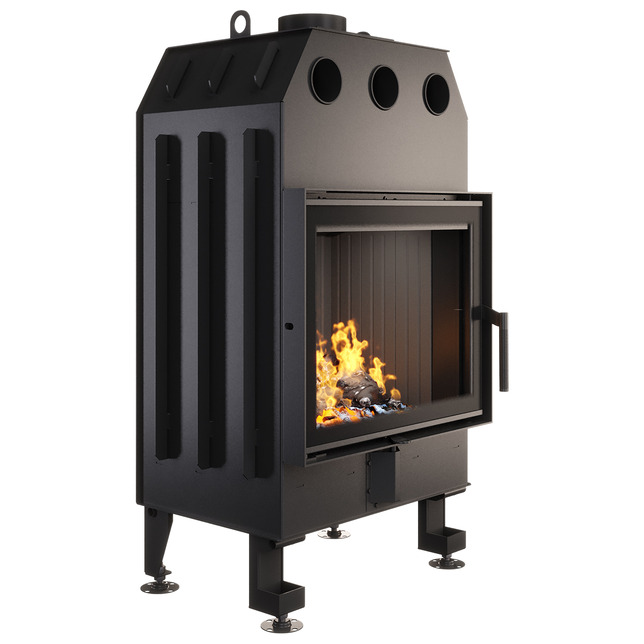

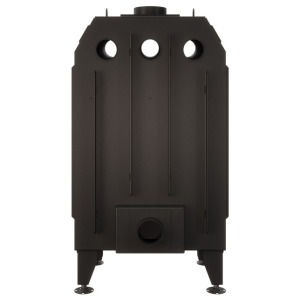

Steel fireplace insert SAVEN Energy 60x50 Black (14.5 kW) ECO

The model range of SAVEN Energy Black fireplaces includes straight and angled steel fireplace insert lined with black fireclay. This is an interesting and fresh solution, because black fireclay has a number of advantages:

  • Quality. Czech full-bodied black fireclay 35 mm thick does not burn out at high combustion temperatures in the furnace, does not flake and does not crumble over time.
  • Security. The paint used in its production does not smoke and does not emit an unpleasant smell when burning.
  • Aesthetics. Black fireclay with original SAVEN design looks spectacular, adds depth and enriches the interior, both during burning and without fire.
  • Care. Black fireclay does not show dirt or soot, so the fireplace insert will always look neat.

The main advantages of the SAVEN Energy 60x50 Black (14.5 kW) ECO steel fireplace insert

  • High efficiency due to the implementation of the smoke exhaust design
  • Compatibility with a recuperation system
  • Bottom and rear air intake
  • Double deflector in the steel fireplace insert for increased efficiency and better heat transfer
  • Sturdy and rigid construction that is not deformed and is not affected by high temperatures
  • Sealing of the steel fireplace insert with fireplace cords for additional sealing
  • Unique leg design of the steel fireplace insert with straight glass for easy and quick installation
  • Smooth and easy flame control with a single regulator

The one-sided steel fireplace insert SAVEN Energy 60x50 Black (14.5 kW) ECO is made exclusively from high-quality and proven materials. The production process used:

  1. Hot-rolled low-alloyed steel with a thickness of 3 to 5 mm
  2. Lining with thick protective refractory plates with SAVEN's proprietary design
  3. Environmentally friendly paint that does not emit smoke during ignition and is resistant to high temperature fluctuations
  4. Heat-resistant glass from the German manufacturer Schott Robax (4 mm), which can withstand temperatures up to 760 °C

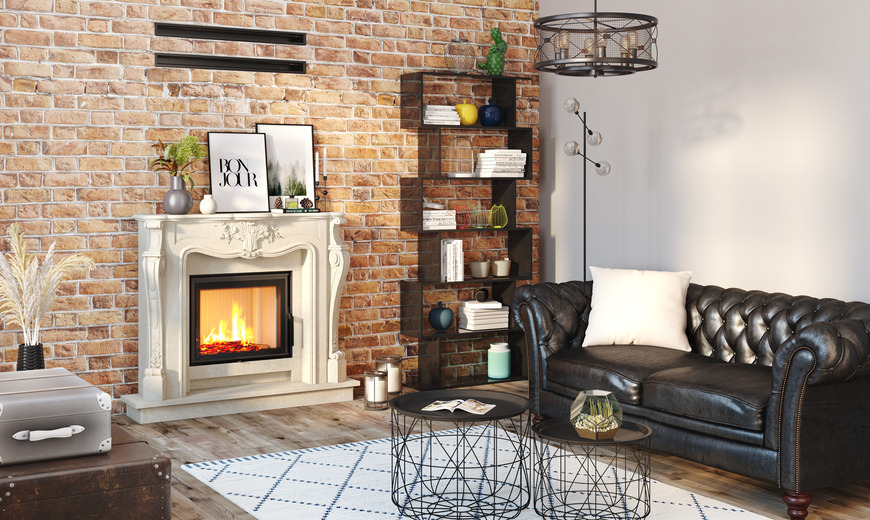

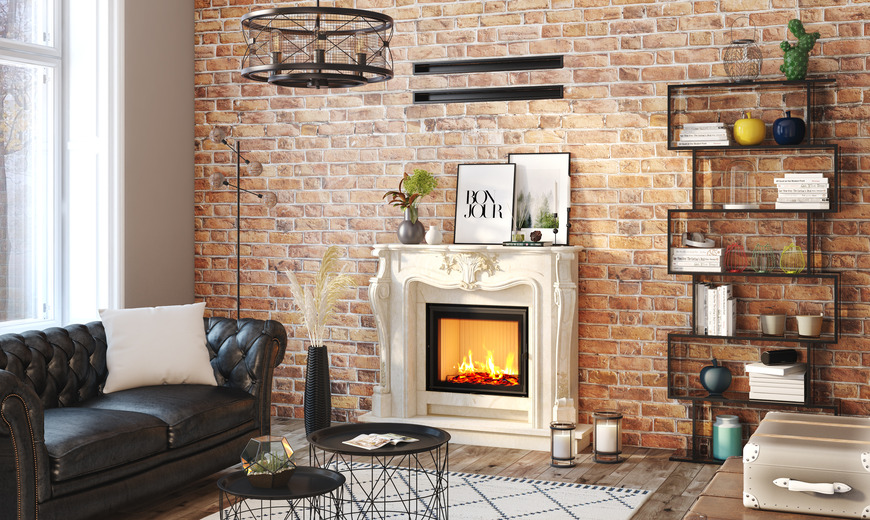

Fireplace in the interior

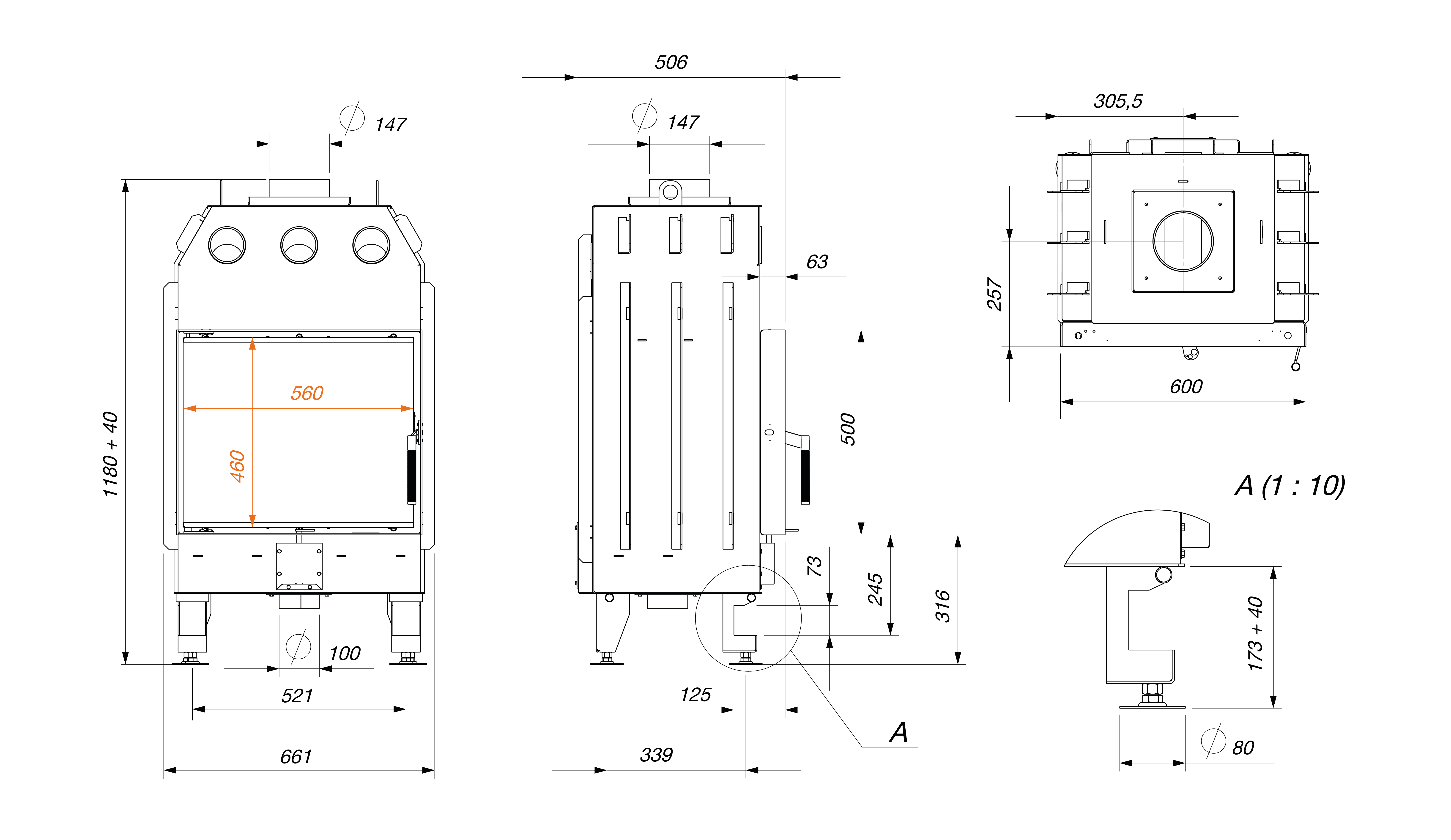

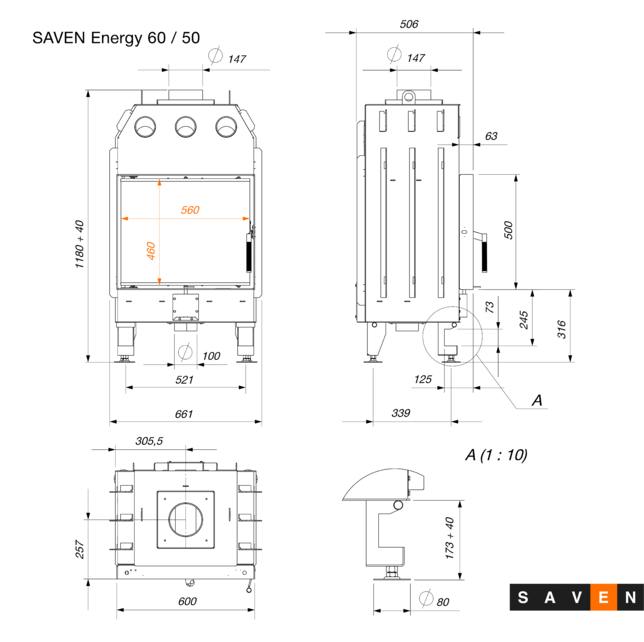

Technical drawing Fireplace insert SAVEN Energy 60x50 Black (14,5 kW) ECO
